Product Information

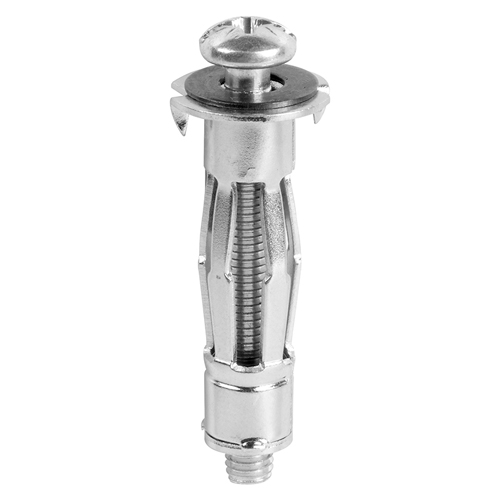

A cavity fixing that is ideal for hanging radiators, brackets, hand rails and shelving units. When installing multiple anchors a TIMCO Setting Tool is recommended for a fast and efficient way of installation.
Documents
Technical Specifications
Product Specification
| Anchor Length mm | 37 |
| Screw Length mm | 45 |
| Screw Size mm | M5 x 45 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 5 |
| Grip Board mm | 6 - 13 |
| Max Fixture Thickness mm | 30 |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.048 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 6000 |
| Product Code | 50037CAP |
| SKU Barcode | 5055331828552 |
| Thread Dia mm | M5 |
| Drill Hole Dia mm | 10 |
Product Specifications
| Finish | Zinc |
| Head Type | Pan |
| Material | Carbon Steel |
| Point Type | B Point |
| Recess Type | Combi |
| Thread Type | Metric |
| Driver Bit Size | PZ2 |
| Substrates | Drywall, Wood Panel |
Attribute Group 1
| Brand | TIMCO |

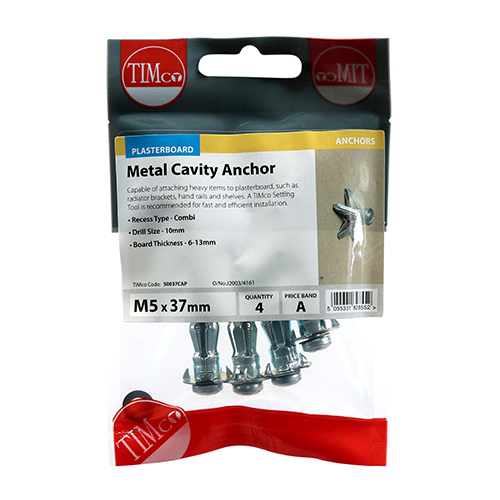

Metal Cavity Anchors - Zinc
M5 x 37 (45mm Screw)
- Product Code: 50037CAP
- Pack Type: TIMpac
- Pack Quantity: 4
- Barcode: 5055331828552
