Product Information
A cavity fixing that is ideal for hanging radiators, brackets, hand rails and shelving units. When installing multiple anchors a TIMCO Setting Tool is recommended for a fast and efficient way of installation.
Documents
Technical Specifications
Product Specification
| Anchor Length mm | 65 |
| Screw Length mm | 70 |
| Screw Size mm | M5 x 70 |
| Finish | Zinc |
| Head Type | Pan |
| Material | Carbon Steel |
| Point Type | B Point |
| Recess Type | Combi |
| Thread Type | Metric |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Driver Bit Size | PZ2 |
| Fixture Hole Diameter mm | 5 |
| Grip Board mm | 17 - 32 |
| Max Fixture Thickness mm | 26 |
| Substrates | Drywall, Wood Panel |
| Pack Dimensions L x W x H mm | 180 x 90 x 90 |
| Pack Weight kg | 2.067 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 288 |
| Product Code | 50065CA |
| SKU Barcode | 5055017530304 |
| Thread Dia mm | M5 |
| Drill Hole Dia mm | 10 |
Attribute Group 1
| Brand | TIMCO |

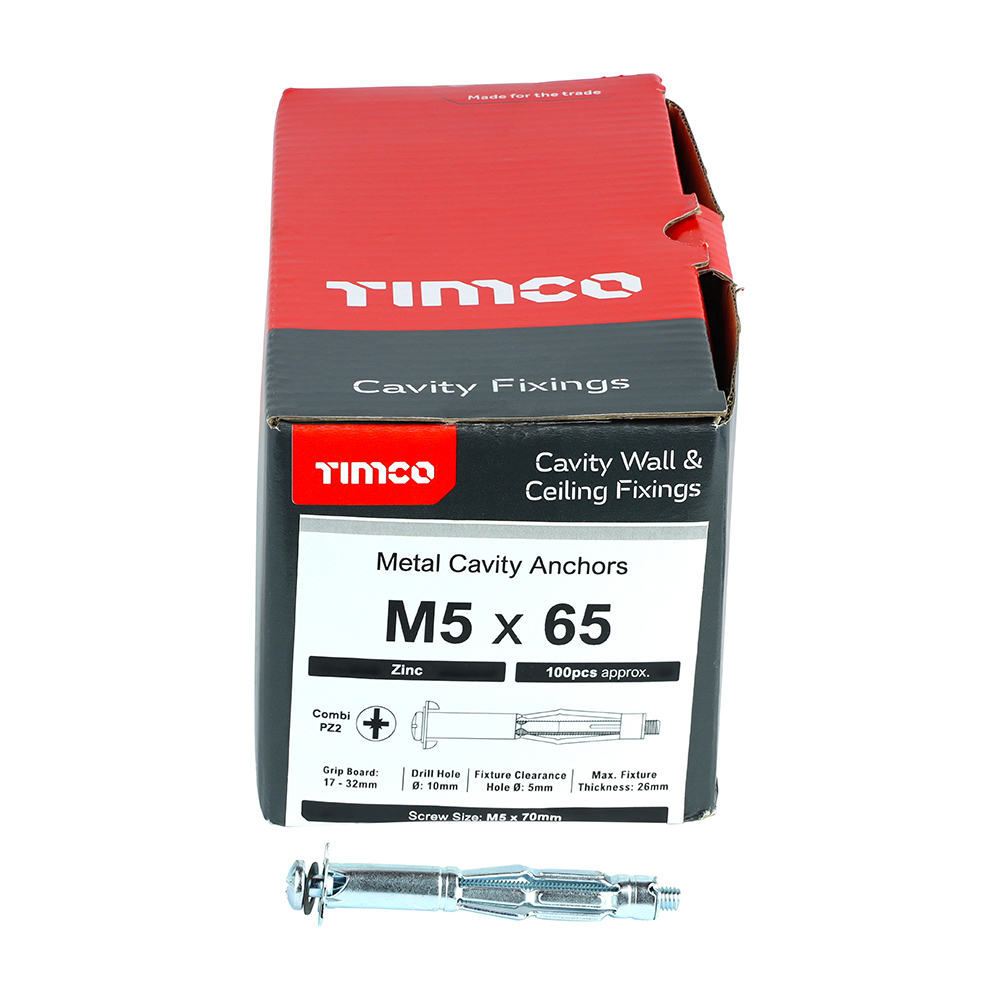

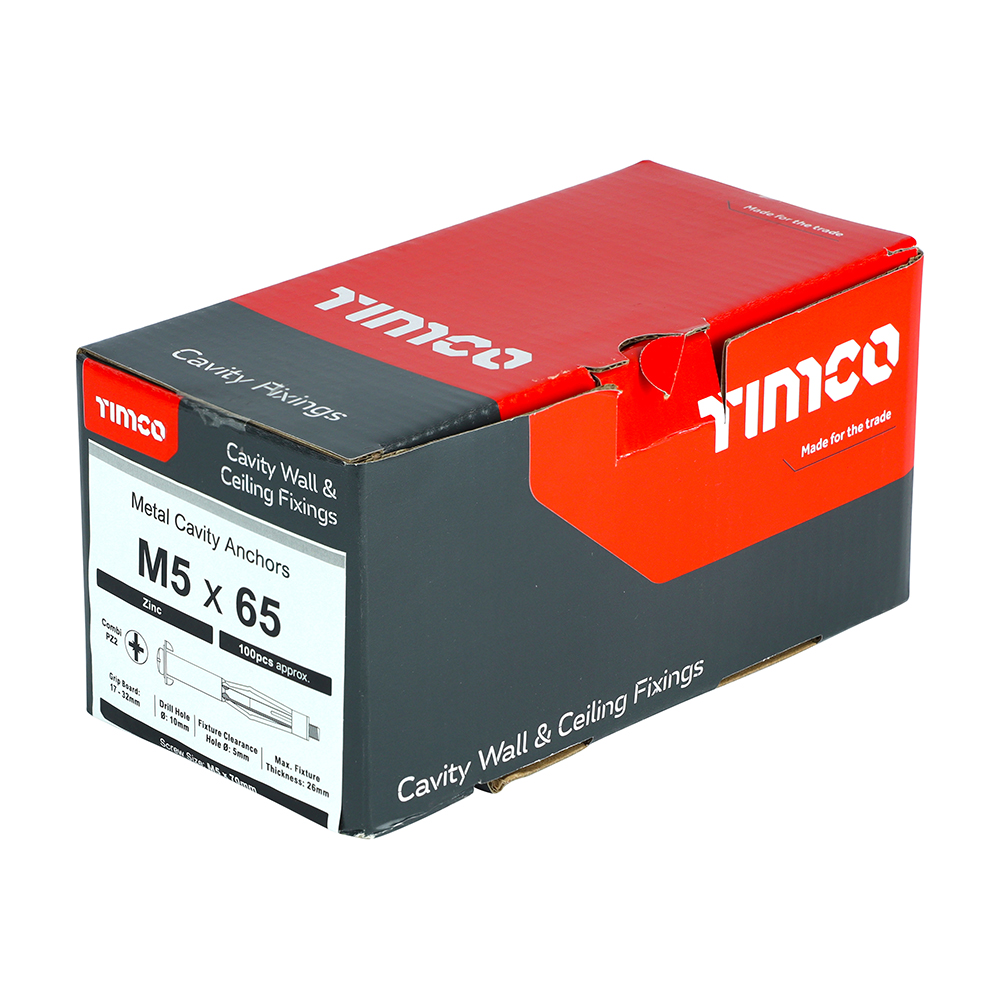

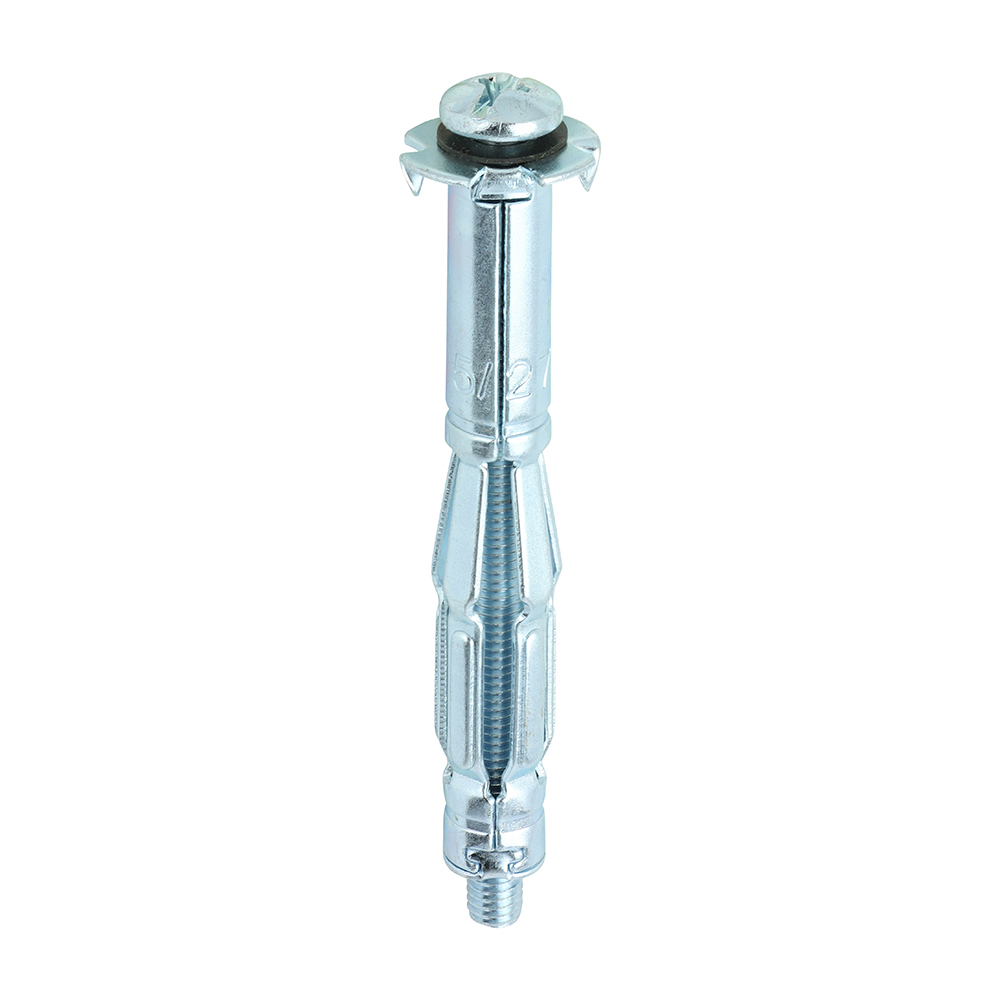

Metal Cavity Anchors - Zinc
M5 x 65 (70mm Screw)
- Product Code: 50065CA
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055017530304
