Product Information
A rapid and effective light duty fixing ideal for attaching ironmongery to concrete, stone and brick without the need for nylon plugs. Countersunk head for a flush finish.
- TX25 TX Drive recess reduces wear & camming-out
- Serrated V-threads to achieve optimum insertion
- High-Low threads for ease of insertion
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire
Documents
Technical Specifications
Product Specification
| Length mm | 80 |
| Diameter mm | 6 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 6.5 |
| Max Fixture Thickness mm | 55 |
| Min Drill Hole Depth mm | 35 |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.09 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 6000 |
| Product Code | 725010 |
| SKU Barcode | 5056110802862 |
| Size Dia x L mm | 6.0 x 80 |
| Thread Dia mm | 6 |
| Drill Hole Dia mm | 5 |
Product Specifications
| Finish | Zinc |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Point Type | Sharp |
| Recess Type | TX Drive |
| Thread Coverage | Partially Threaded |
| Thread Type | High-Low with V Flutes |
| Driver Bit Size | TX25 |
| Substrates | Wood, Concrete, Brick |
| Approval | BS 7671:2018 |
Attribute Group 1
| Brand | TIMCO |

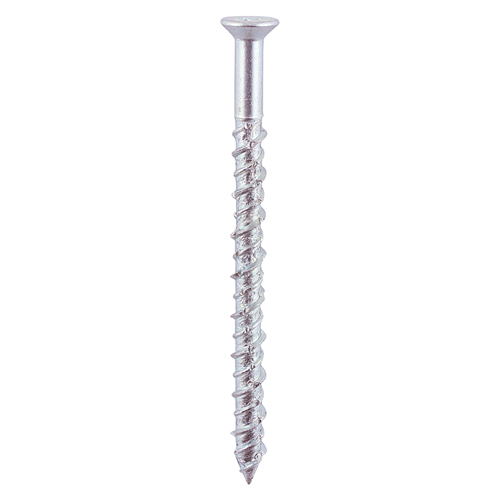

Masonry Screws - TX - Countersunk - Zinc
6.0 x 80
- Product Code: 725010
- Pack Type: TIMpac
- Pack Quantity: 8
- Barcode: 5056110802862
