Product Information

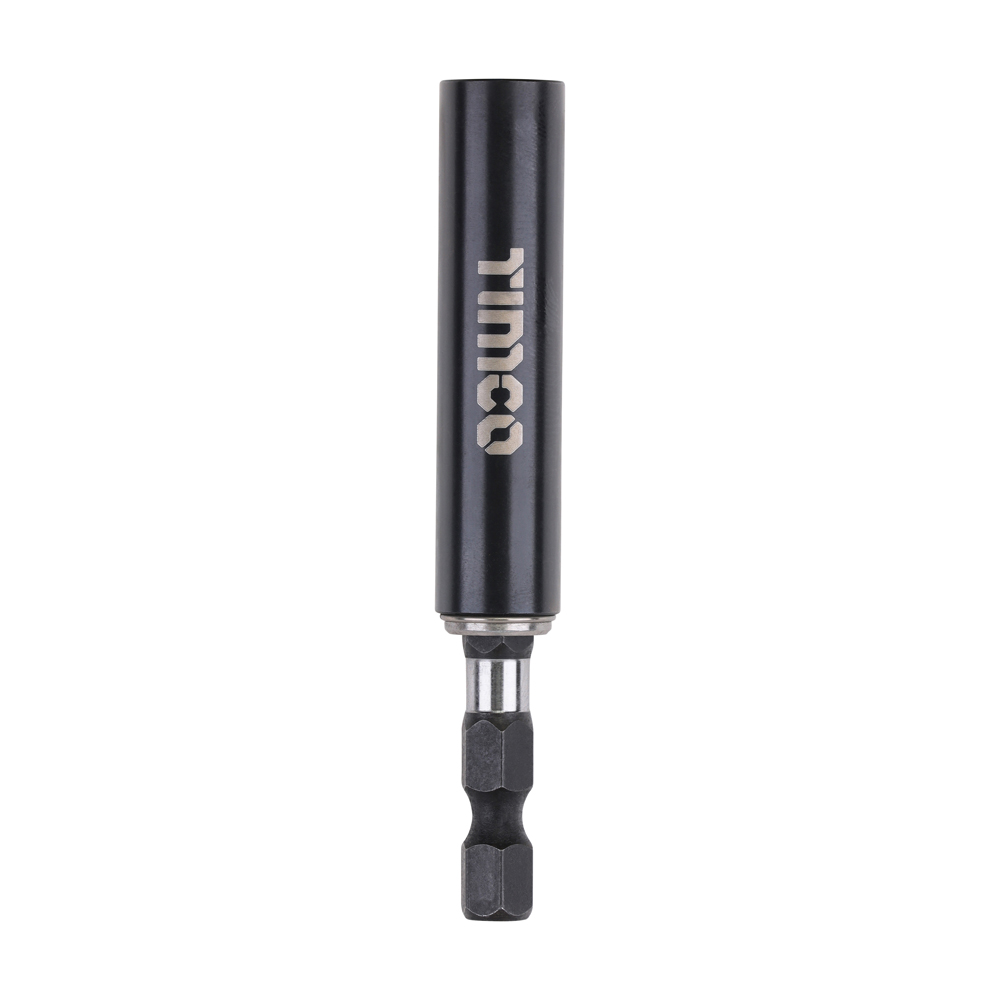

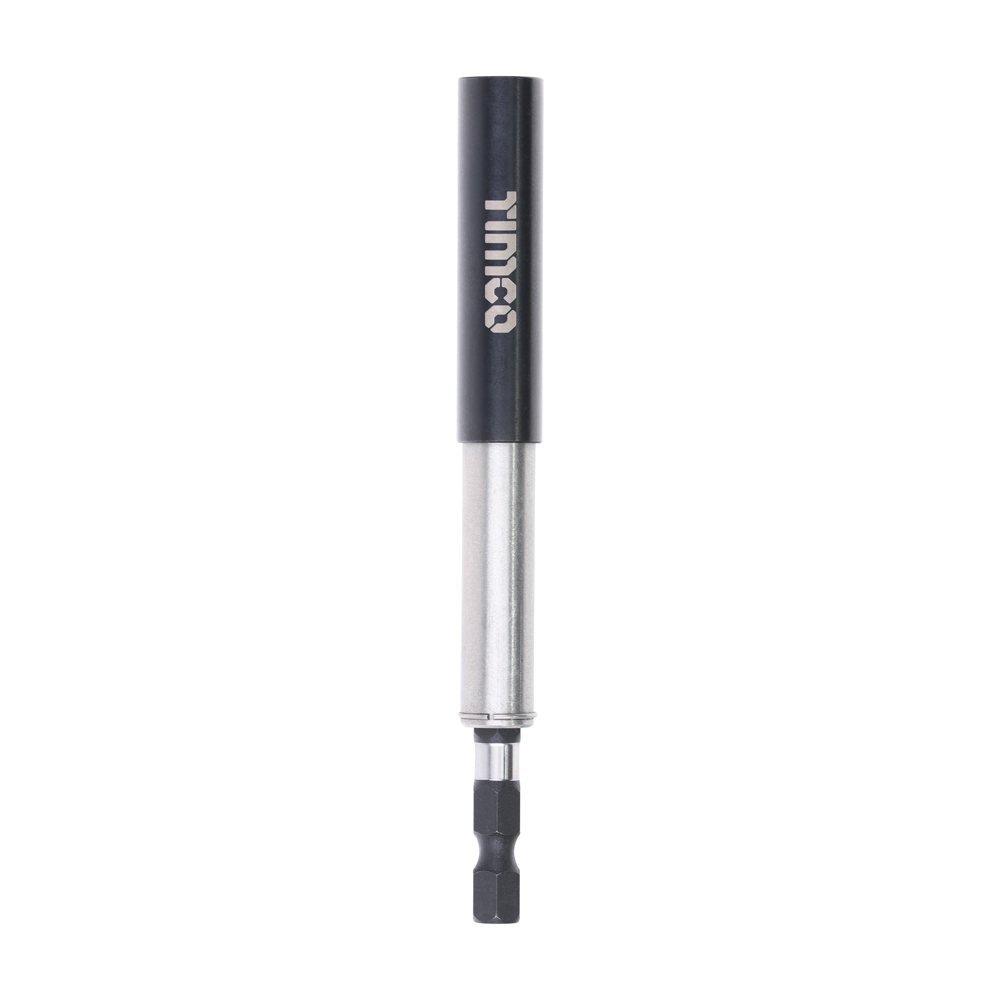

This impact resistant magnetic screw guide has a sliding sleeve designed so the user always drives the screw in at 90° ensuring a flush finish. It also has the added benefit of reducing risk of finger injury as the sleeve covers the sharp screw threads.
- High Strength Magnet - for supporting the fastening during installation.
Documents
Technical Specifications
Product Specification
| Length inch | 2 7/8 |
| Length mm | 75 |
| Shank Type | Hex |
| Type | Magnetic |
| To Fit Screw Dia mm | 3.0 to 5.0 |
| Pack Dimensions L x W x H mm | 8 x 47 x 160 |
| Pack Weight kg | 0.05 |
| Carton Qty Packs | 24 |
| Pallet Qty Packs | N/A |
| Product Code | 75SGX6 |
| SKU Barcode | 5055893353592 |
| Shank Dia inch | 1/4 |
| To Fit Screw Gauge imp | 4 to 10 |
Product Specifications
| Finish | Black Phosphate |
| Material | Hardened Carbon Steel |
Attribute Group 1
| Brand | TIMCO |
Magnetic Impact Screw Guide
75mm
- Product Code: 75SGX6
- Pack Type: Blister Pack
- Pack Quantity: 1
- Barcode: 5055893353592
