Product Information

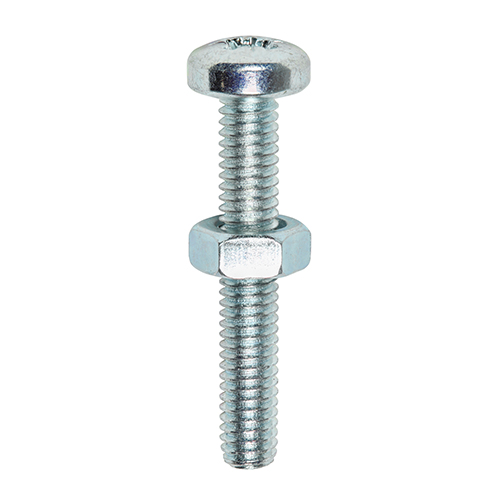

Pan head machine screw with hex full nut ideal for general light duty bolting applications where a pan head is required for extra clamping effectiveness.
- Pan head for extra clamping
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Length mm | 16 |
| Nut Size mm | M6 |
| Nut Socket Size mm | 10 |
| Size mm | M6 x 16 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.01 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 934, DIN 267-4, DIN 7985 |
| Product Code | 6016PPMHNP |
| SKU Barcode | 5056110853772 |
| Thread Dia mm | M6 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Head Type | Pan |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | B Point |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Driver Bit Size | PZ3 |
| Included Items | M6 Hex Full Nuts |
| Substrates | Steel |
Attribute Group 1
| Brand | TIMCO |
Machine Screws - PZ - Pan & Hex Nuts - Zinc
M6 x 16
- Product Code: 6016PPMHNP
- Pack Type: TIMpac
- Pack Quantity: 15
- Barcode: 5056110853772
