Product Information

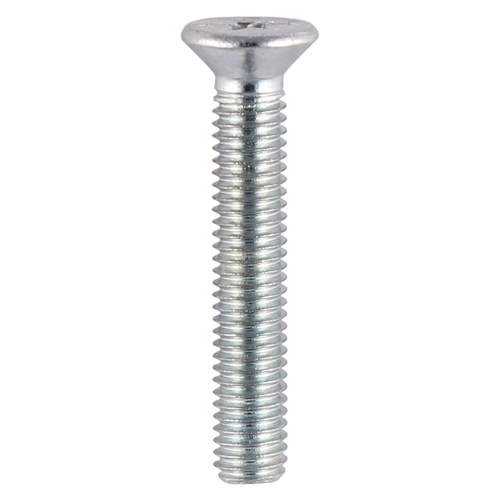

A countersunk metric threaded machine screw used for fastening handles or espagnolettes into pre-defined holes in frames.
Documents
Technical Specifications
Product Specification
| Length mm | 40 |
| Size mm | M5 x 40 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 180 x 90 x 90 |
| Pack Weight kg | 2.633 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 288 |
| Product Code | 540Z |
| SKU Barcode | 5055017529483 |
| Thread Dia mm | M5 |
Product Specifications
| Finish | Zinc |
| Head Type | Countersunk |
| Material | Carbon Steel |
| Point Type | B Point |
| Recess Type | Phillips |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Driver Bit Size | PH2 |
| Substrates | Steel |
| Approval | All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines. |
Attribute Group 1
| Brand | TIMCO |
Machine Screws - Countersunk - PH - Metric Thread - B Point - Zinc
M5 x 40
- Product Code: 540Z
- Pack Type: Box
- Pack Quantity: 500
- Barcode: 5055017529483
