Product Information

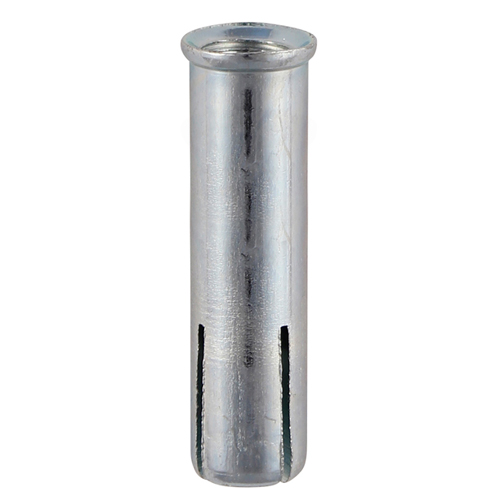

An internally threaded hammer set expansion anchor for heavy duty anchoring into concrete. The lip allows the anchor to sit flush against the surface, preventing the anchor from being inserted too far. Also known as wedge anchors.
  • All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Documents
Technical Specifications
Product Specification
Anchor Length mm 30
Length mm 30
Thread Length mm 14
Type Lipped
Centre Spacing mm 90
Corrosion Rating 1 - Clean, dry & low humidity environments
Fixture Hole Diameter mm 10
Min Drill Hole Depth mm 30
Min Thread Length mm 14
Pack Dimensions L x W x H mm 126 x 102 x 38
Pack Weight kg 1.2
Carton Qty Packs 12
Pallet Qty Packs 720
Product Code 08LWA
SKU Barcode 5055017563159
Size Thread Dia x L mm M8 x 30
Thread Dia mm M8
Drill Hole Dia mm 10
Product Specifications
Finish Zinc
Material Carbon Steel
Thread Type Metric
Substrates Concrete
Approval BS 7671:2018
Attribute Group 1
Brand TIMCO

Lipped Drop In Anchors - Zinc

M8

  • Product Code: 08LWA
  • Pack Type: Box
  • Pack Quantity: 100
  • Barcode: 5055017563159
