Product Information

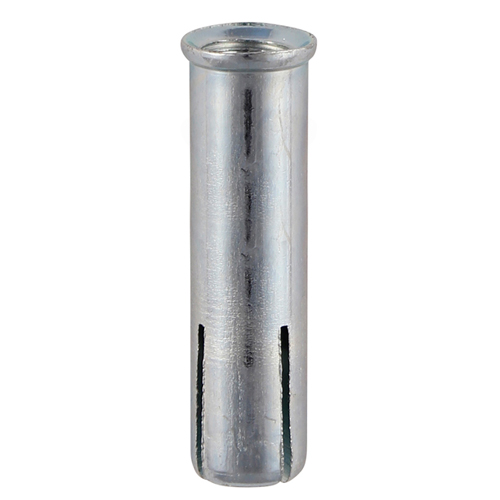

An internally threaded hammer set expansion anchor for heavy duty anchoring into concrete. The lip allows the anchor to sit flush against the surface, preventing the anchor from being inserted too far. Also known as wedge anchors.
- All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Documents
Technical Specifications
Product Specification
| Anchor Length mm | 30 |
| Length mm | 30 |
| Thread Length mm | 15 |
| Type | Lipped |
| Centre Spacing mm | 90 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 12 |
| Min Drill Hole Depth mm | 30 |
| Min Thread Length mm | 15 |
| Pack Dimensions L x W x H mm | 142 x 76 x 36 |
| Pack Weight kg | 0.79 |
| Carton Qty Packs | 16 |
| Pallet Qty Packs | 816 |
| Product Code | 1030LWA |
| SKU Barcode | 5055017586943 |
| Size Thread Dia x L mm | M10 x 30 |
| Thread Dia mm | M10 |
| Drill Hole Dia mm | 12 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Thread Type | Metric |
| Substrates | Concrete |
| Approval | BS 7671:2018 |
Attribute Group 1
| Brand | TIMCO |

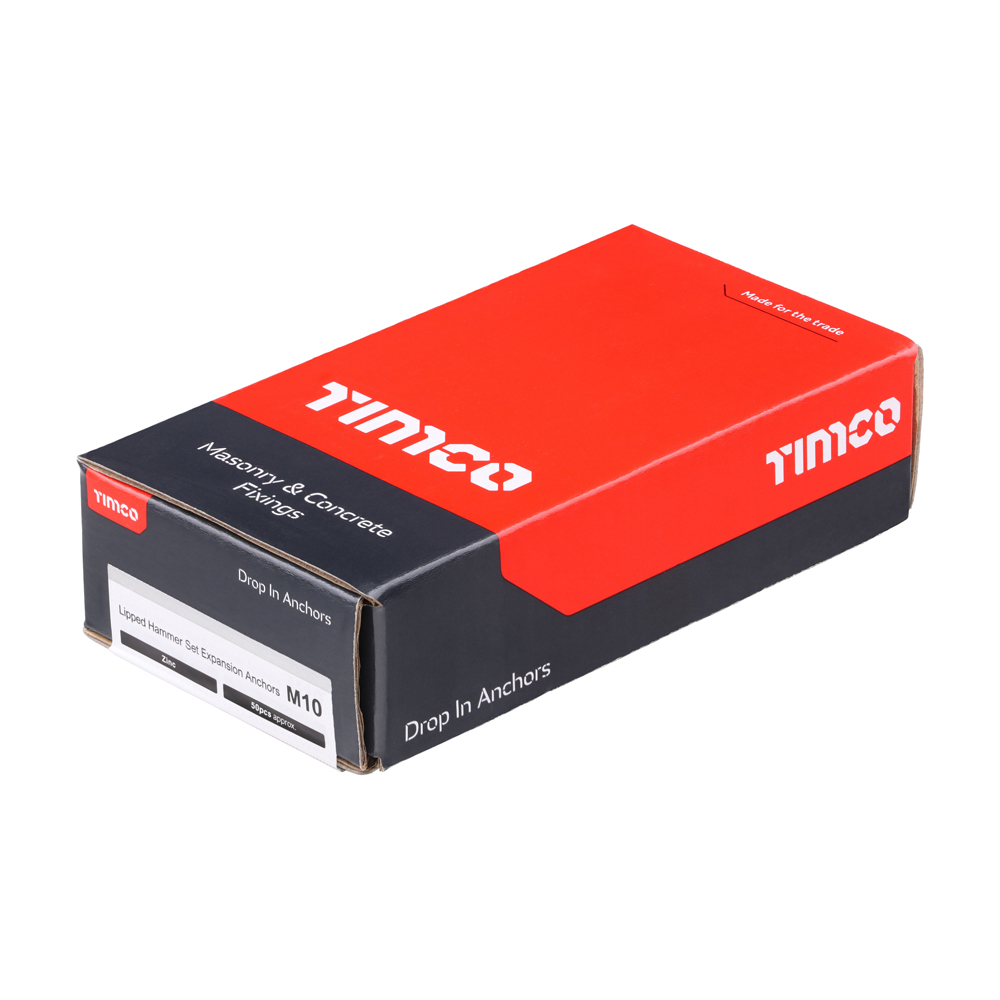

Lipped Drop In Anchors - Zinc
M10
- Product Code: 1030LWA
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055017586943
