Product Information
Designed to enable the door to be lifted out of the frame.
- For doors that may require emergency access when closed
- Quick and easy removal of doors
- Available in left and right handed opening
- Manufactured from steel in a zinc finish
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 75 |
| Open Width mm | 62 |
| Size L x W mm | 75 x 62 |
| Thickness mm | 2 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Open Direction | Left |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.22 |
| Carton Qty Packs | 50 |
| Pallet Qty Packs | 2,250 Pairs |
| Pattern | 457 |
| Product Code | 434706 |
| SKU Barcode | 5056110809427 |
| Size imp | 3 |
| Knuckle Dia mm | 10.3 |
| Hole Dia mm | 6.5 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

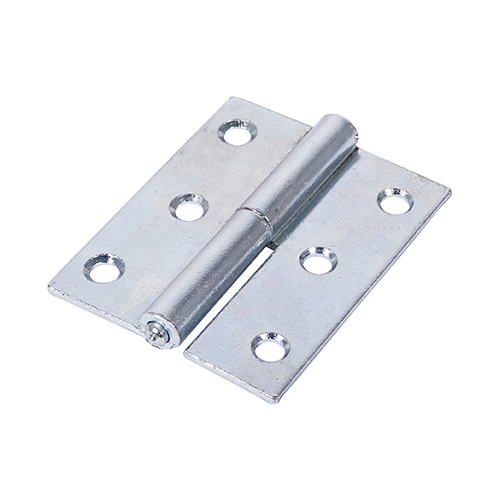

Lift Off Hinge (457) - Left Hand - Zinc
75 x 62
- Product Code: 434706
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110809427
