Product Information

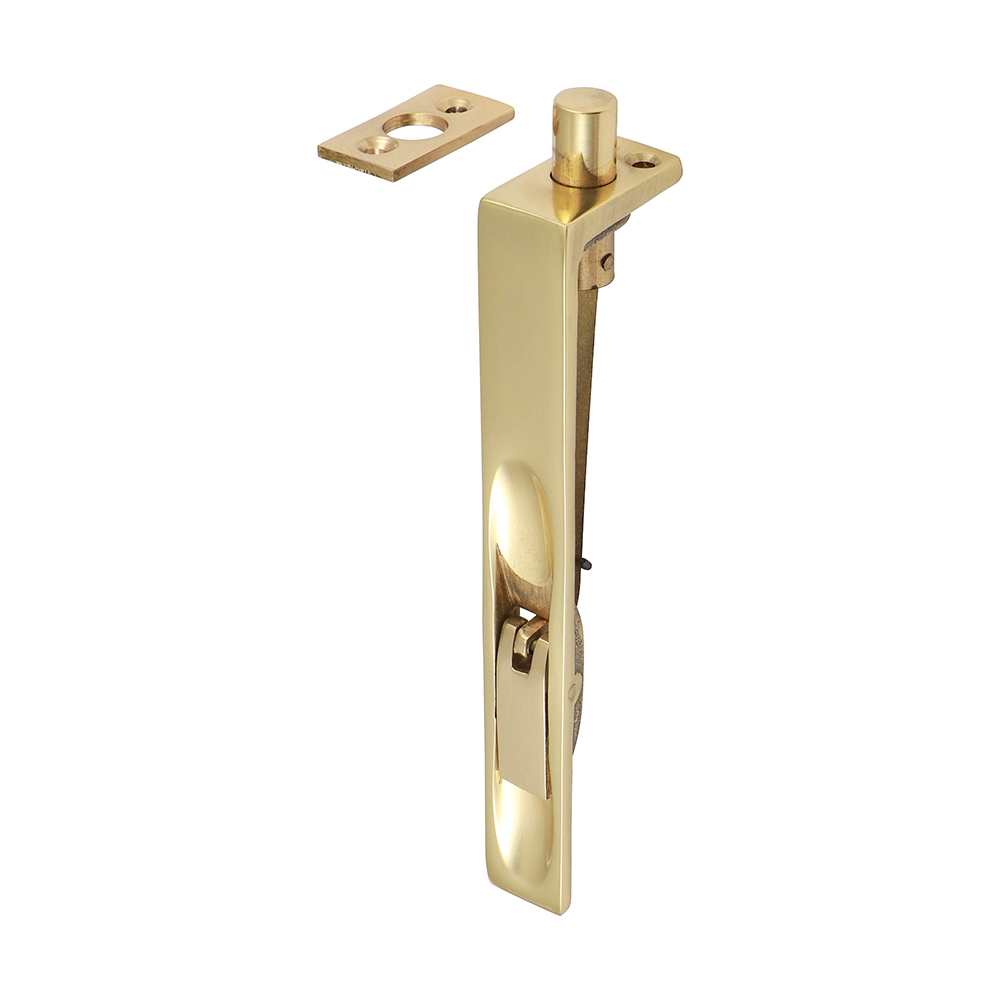

Lever action flush bolts are morticed into the face or leading edge of the door providing a flush door surface finish. They are commonly fitted to double doors to secure the slave door leaf in place.
- Lever action
- Flush fitting
- Flat keep
Documents
Technical Specifications
Product Specification
| Bolt Throw mm | 15 |
| Length mm | 150 |
| Size L x W mm | 150 x 19 |
| Width mm | 19 |
| Corrosion Rating | 5 - Industrial & coastal areas with an aggressive salt atmosphere |
| CSK Screw Size mm | 3.5 x 25 |
| No of CSK Screws | 5 |
| Pack Dimensions L x W x H mm | 350 x 100 x 40 |
| Pack Weight kg | 0.2 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | 200393 |
| SKU Barcode | 5056110830759 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Polished Brass |
| Material | Brass |
Attribute Group 1
| Brand | TIMCO |

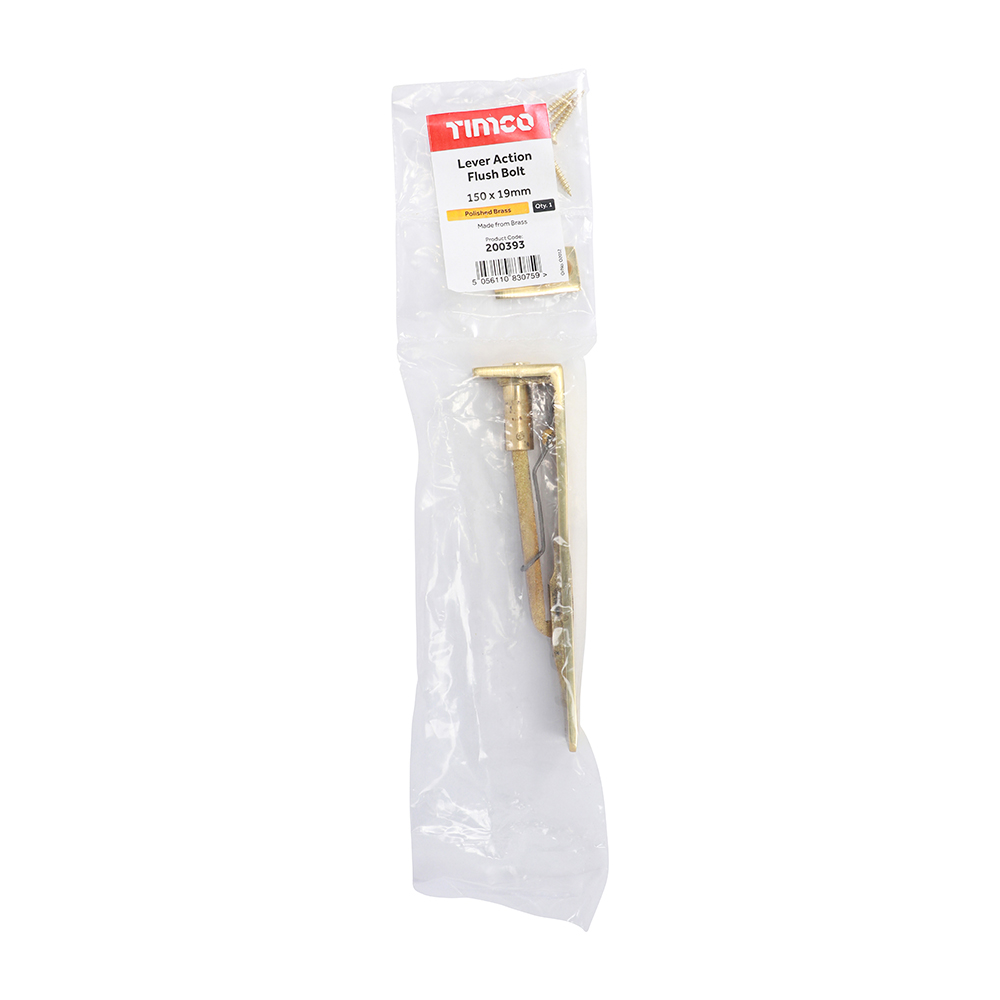

Lever Action Flush Bolt - Polished Brass
150 x 19mm
- Product Code: 200393
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056110830759
