Product Information

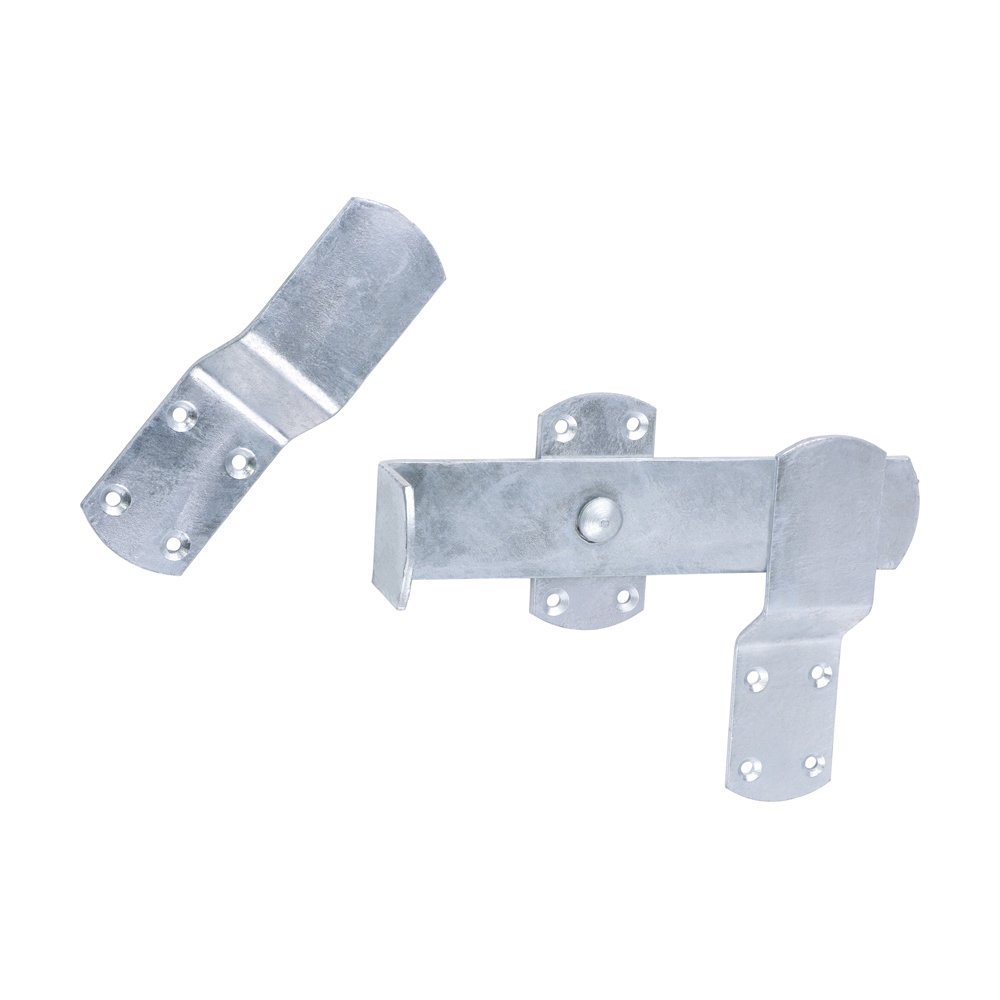

Kick over stable latches are ideal for stables and agricultural applications where a hands free operation is required. Fixings included.
Documents
Brochure Page
Technical Specifications
Product Specification
Backplate Size L x W mm 45 x 110
Bar Length mm 240
Catch Projection mm 140
Seat Bracket Backplate Size L x W mm 45 x 80
Seat Bracket Size L x W mm 45 x 170
Size inch 9 1/2
Size mm 240
Finish Hot Dipped Galvanised
Material Carbon Steel
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
Included Items 6.0 x 40 Countersunk Screws (Qty 12)
No of CSK Screws 12
Pack Dimensions L x W x H mm 258 x 93 x 61
Pack Weight kg 1.17
Carton Qty Packs 10
Pallet Qty Packs 450
Product Code KOSLG
SKU Barcode 5055893359990
Rec Screw Dia mm 6.0
Attribute Group 1
Brand TIMCO

Kick Over Stable Latch - Hot Dipped Galvanised

240mm

  • Product Code: KOSLG
  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5055893359990
