Product Information

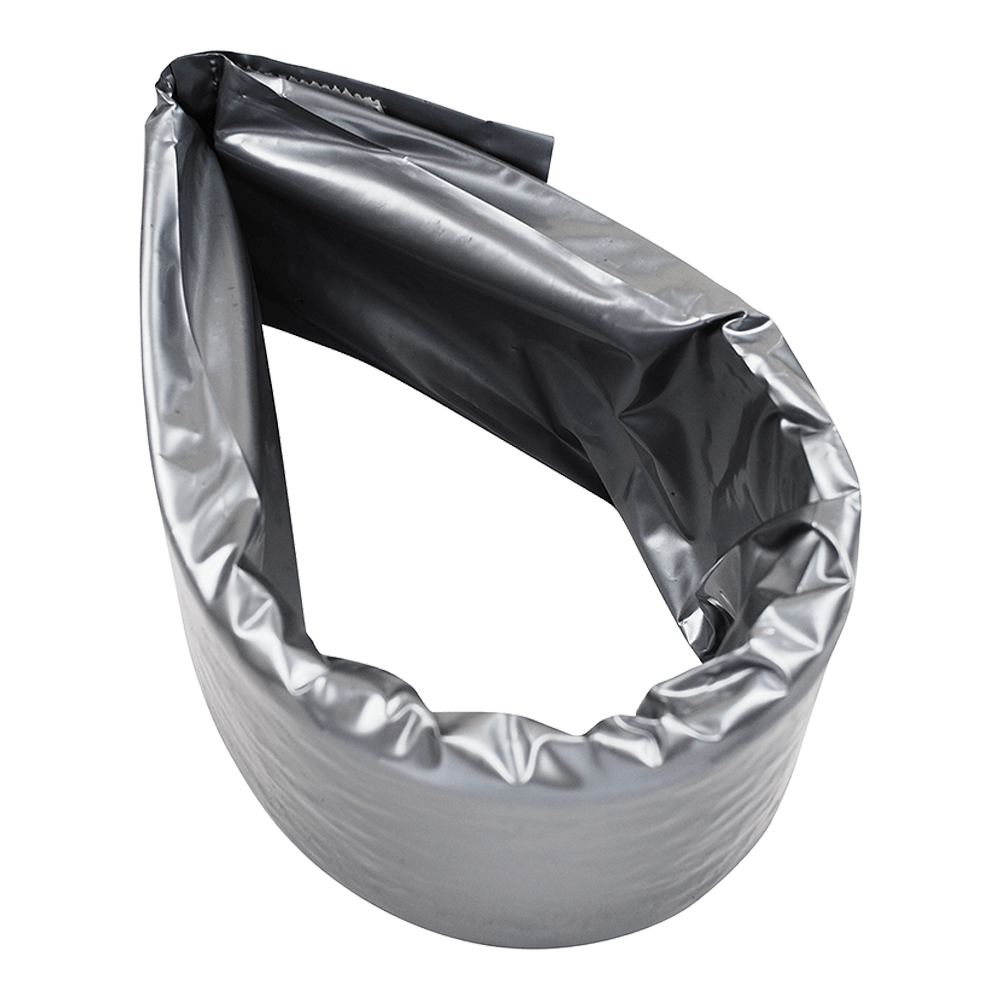

For installation around plastic piping/trunking passing through fire resistant structures such as walls & doors. During the primary construction phase of projects, tolerance is in built to enable the fitting of a pipe wrap once the other services have been installed. In case of fire the intumescent material expands & crushes the pipe or trunking, sealing off this area & maintaining the integrity of the structural elements through which it passes.
- Easy to place around pipes and trunking to slide into position
- Intumescent material unaffected by water, non-flaking and difficult to tear
- Soil, waste and drainage 'above ground' applications
- Can be used with concrete and masonry walls and concrete floor constructions
- 4 hour fire rating in vertical & horizontal applications
- 10 year guarantee
Technical Specifications
Product Specification
| Length mm | 285 |
| Size mm | 285 x 80 x 5 |
| Thickness mm | 5 |
| Width mm | 80 |
| To Suit Pipe Size mm | 82 |
| Pack Dimensions L x W x H mm | 356 x 96 x 12 |
| Pack Weight kg | 0.16 |
| CE Standard Web | CE Marked |
| Certifire Number | CF635 |
| Fire Rating | 240 Minutes |
| Product Code | 487289 |
| SKU Barcode | 5056110899466 |
Product Specifications
| Material | Graphite |
| Approval | BS EN 1366-3, BS476 part 20 1987 |
Attribute Group 1
| Brand | TIMCO |

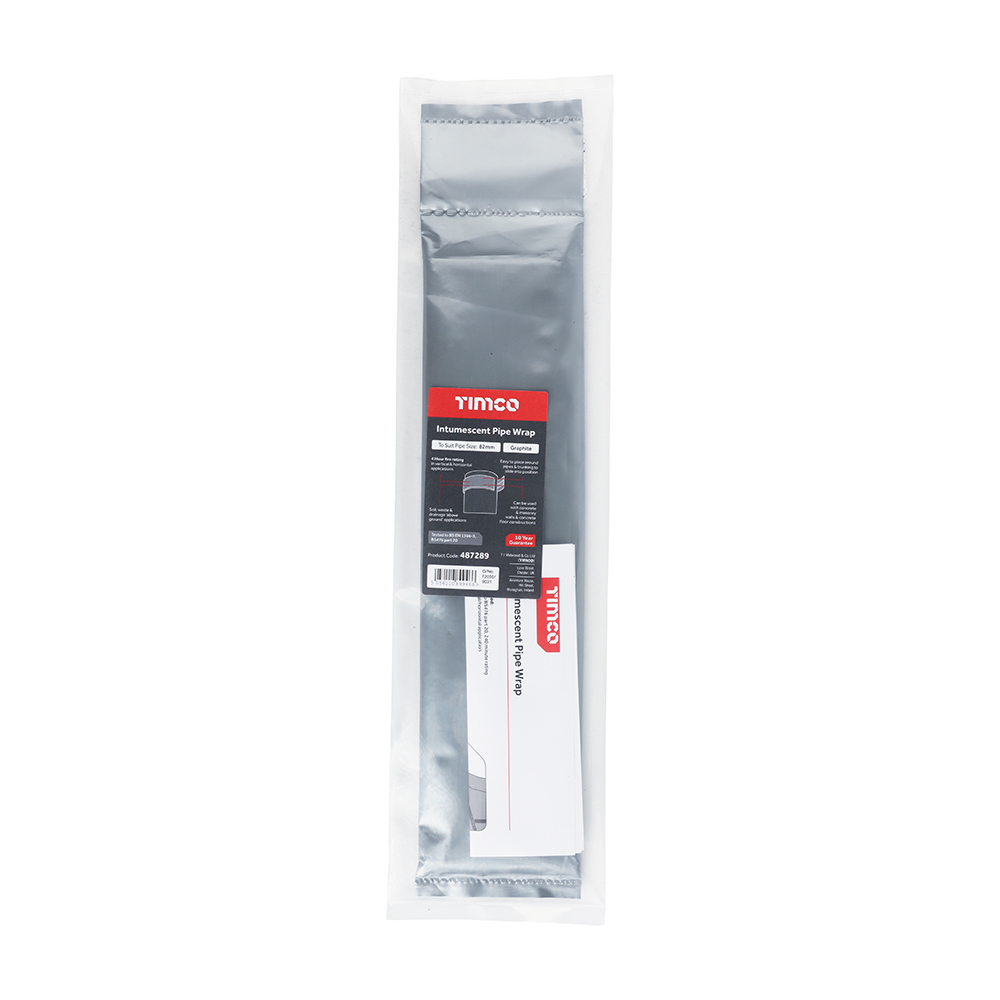

Intumescent Pipe Wrap
Pipe Size 82mm
- Product Code: 487289
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056110899466
