Product Information
Intumescent hinge pads are an essential requirement when fitting hinges to fire doors as they seal any gaps in the rebate and prevent the transfer of heat from the hinge to the door and frame in the event of a fire. One intumescent hinge pad should be fitted beneath each hinge leaf.
- Safe To Handle - contains no fibres of irritants.
- 1mm Thick - minimal rebating required.
- Flexible - will bend without breaking.
- Easy to cut to shape with standard scissors
- Unaffected by moisture, humidity, atmospheric pollution and other common industrial and household chemical substances
Technical Specifications
Product Specification
| Length mm | 100 |
| Thickness mm | 1 |
| Width mm | 31 |
| Size W x L mm | 31 x 100 |
| Pack Dimensions L x W x H mm | 160 x 100 x 6 |
| Pack Weight kg | 0.023 |
| Carton Qty Packs | 250 |
| Pallet Qty Packs | N/A |
| Fire Rating | 30 Minutes |
| Product Code | 487385 |
| SKU Barcode | 5056110832227 |
Product Specifications
| Material | Graphite |
| Approval | BS 476 Part 22, BS EN 1634-1 |
Attribute Group 1
| Brand | TIMCO |

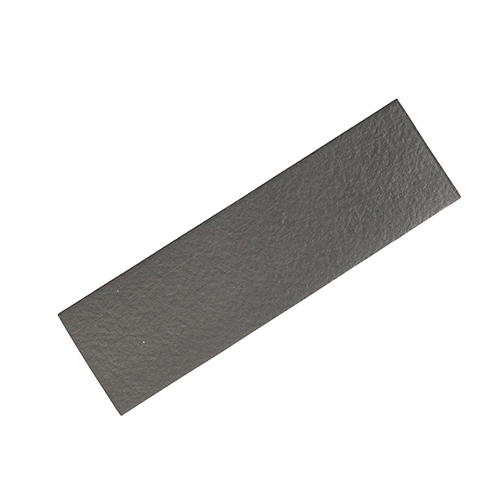

Intumescent Hinge Pads
100 x 31 x 1.0mm
- Product Code: 487385
- Pack Type: Bag
- Pack Quantity: 6
- Barcode: 5056110832227
