Product Information

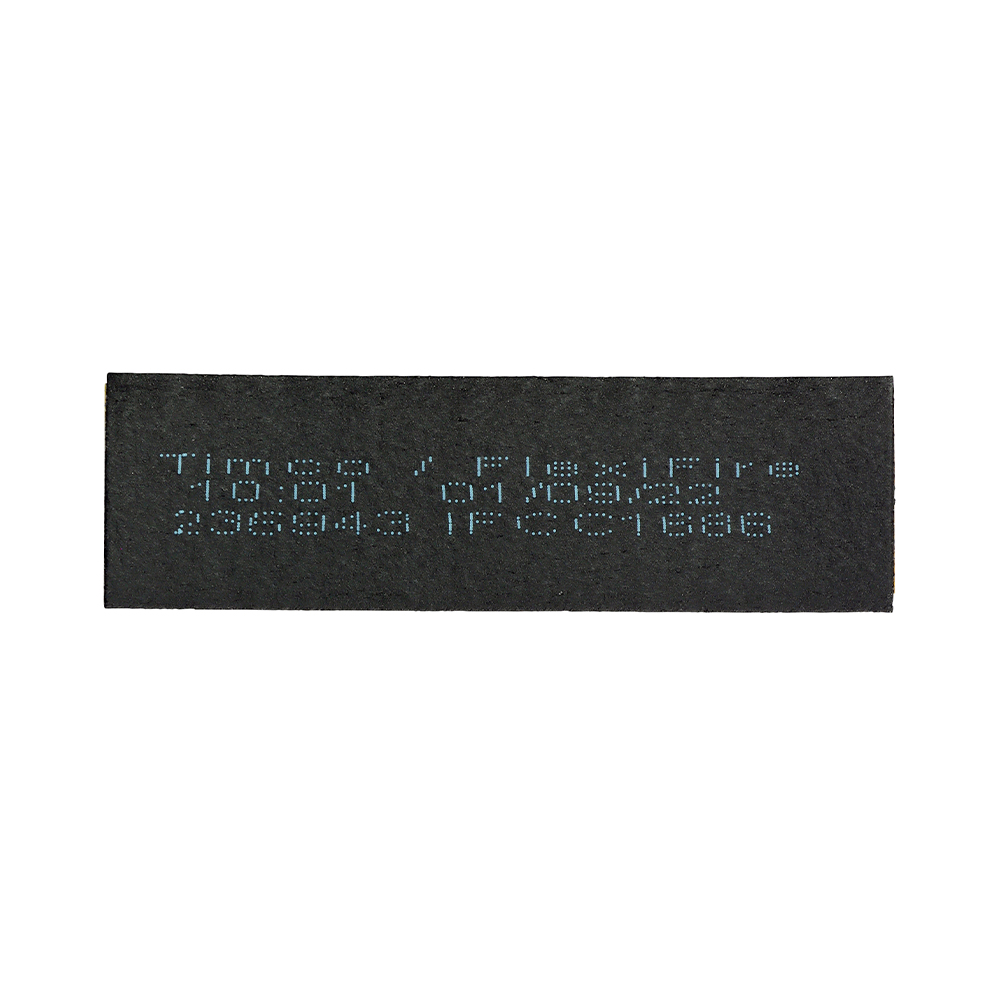

TIMCO FlexiFire HP is an ultra thin and flexible graphite-based intumescent material is cut to suit a wide range of hinges.
- Expansion ratio in excess of 6 times its original volume
- Safe to handle and easy to use (no PPE required)
- Suitable for 30 & 60 minute timber applications
- Excellent temperature insulation before and after exfoliation
- Completely non-toxic and non-fibrous
- Unaffected by moisture, humidity, atmospheric pollution
- When heated to approximately 180°C graphite located at the surface begins to exfoliate
- FlexiFire has been tested extensively to both BS476 Part 22 and EN1634-1
Technical Specifications
Product Specification
| Length mm | 100 |
| Size mm | 100 x 30 |
| Thickness mm | 1 |
| Width mm | 30 |
| Size W x L mm | 30 x 100 |
| Corner Type | Square |
| Pack Dimensions L x W x H mm | 197 x 87 x 10 |
| Pack Weight kg | 0.038 |
| Carton Qty Packs | 200 |
| Pallet Qty Packs | N/A |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 487357 |
| SKU Barcode | 5056110899114 |
Product Specifications
| Colour | Grey |
| Material | Graphite |
| Approval | BS 476 Part 22, BS EN 1634-1 |
Attribute Group 1
| Brand | TIMCO |

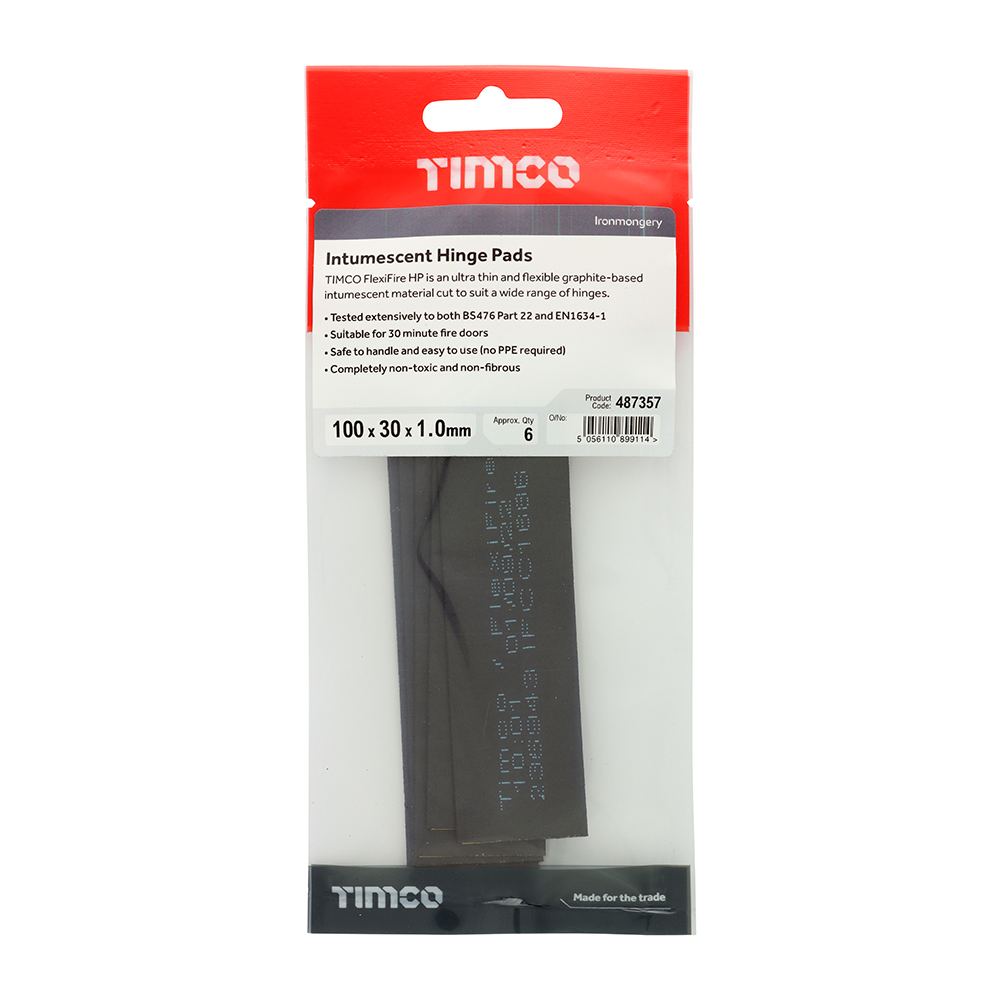

Intumescent Hinge Pads
100 x 30 x 1.0mm
- Product Code: 487357
- Pack Type: TIMpac
- Pack Quantity: 6
- Barcode: 5056110899114
