Product Information

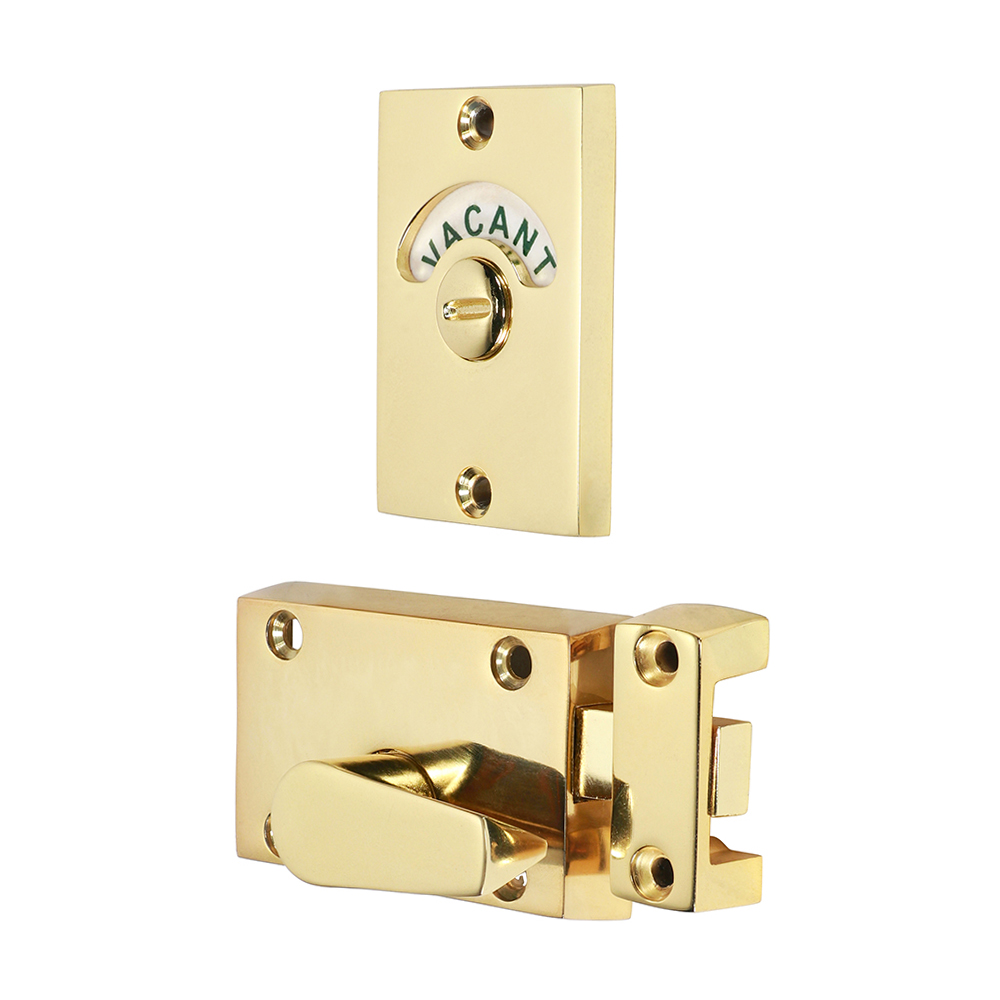

Indicator bolts are an ideal method of securing toilet or cubicle doors when occupied. They feature an outside indicator to show if the room is vacant or engaged. The outside indicator plate also features a coin release so that the bolt can be released and access gained in the event of an emergency.
- Vacant engaged indicator
- Coin release
- Max. door thickness 50mm
- Fixings included
Documents
Technical Specifications
Product Specification
| Bolt Housing Size W x H mm | 66 x 42 |
| Bolt Length mm | 85 |
| Bolt Throw mm | 21 |
| Indicator Plate Size W x H mm | 40 x 60 |
| Keep Size H x W mm | 37 x 15 |
| Screw Size mm | 3.5 x 25 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Door Thickness mm | 50 |
| No of CSK Screws | 6 |
| Pack Dimensions L x W x H mm | 215 x 94 x 15 |
| Pack Weight kg | 0.28 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 200112P |
| SKU Barcode | 5056110885827 |
| Screw Size imp | 6 x 1 |
Product Specifications
| Finish | Electro Brass |
| Material | Zinc |
Attribute Group 1
| Brand | TIMCO |

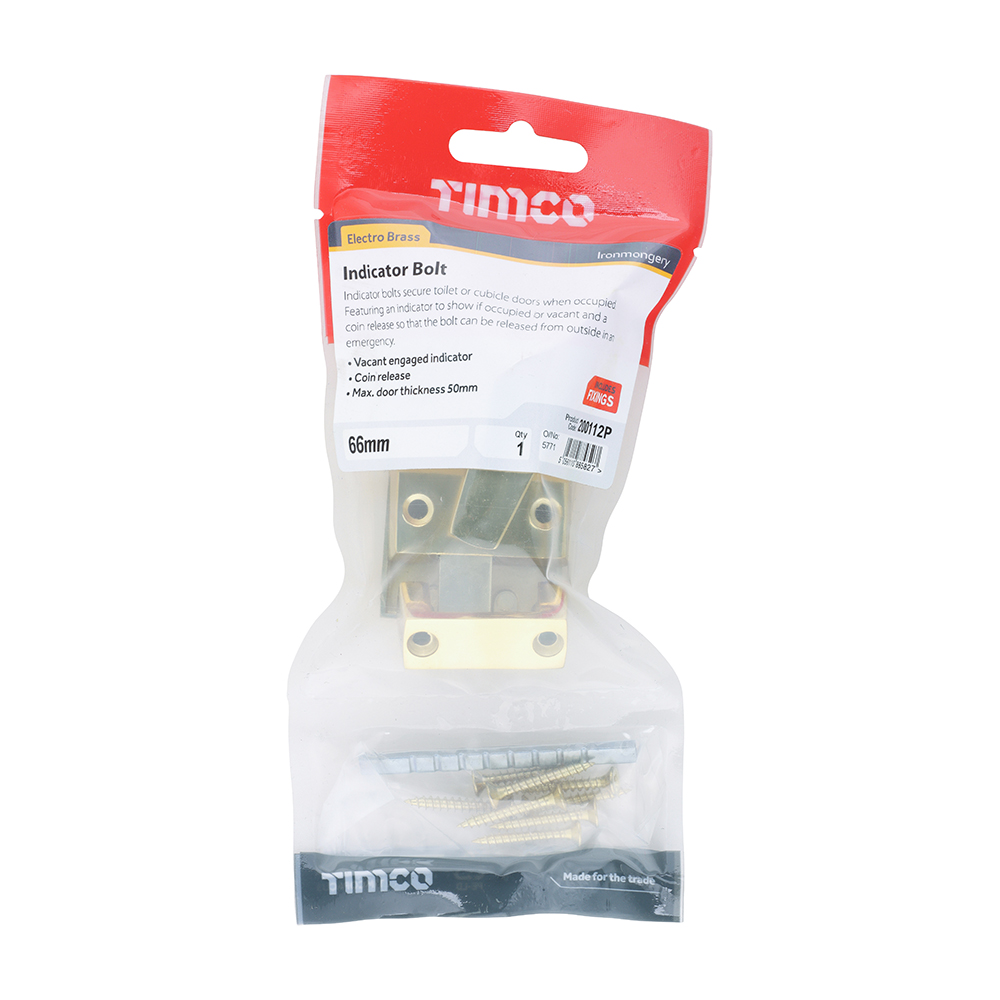

Indicator Bolt - Electro Brass
66mm
- Product Code: 200112P
- Pack Type: TIMpac
- Pack Quantity: 1
- Barcode: 5056110885827
