Product Information
Ideal for use in a variety of joinery applications. Commonly used for light cupboards, cabinets, bifold, louvre doors and shutters.
- Offset knuckle provides an even appearance between the door and frame
- Loose pin for easy door removal
- Flush finish enables a quick and easy fitting with no morticing required
- Lugs on the knuckle for quick and simple alignment
- Manufactured from steel and available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 100 |
| L1 x W1 mm | 100 x 39 |
| L2 x W2 mm | 66 x 27 |
| Open Width mm | 66 |
| Screw Size mm | 4.0 x 30 |
| Size L x W mm | 100 x 66 |
| Thickness mm | 2 |
| Corner Type | Radius |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 237 x 116 x 16 |
| Pack Weight kg | 0.22 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Pattern | 104Z |
| Product Code | 434432P |
| SKU Barcode | 5056110884806 |
| Size imp | 4 |
| Screw Size imp | 8 x 1 1/4 |
| Knuckle Dia mm | 9 |
| Hole Dia mm | 5.8 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

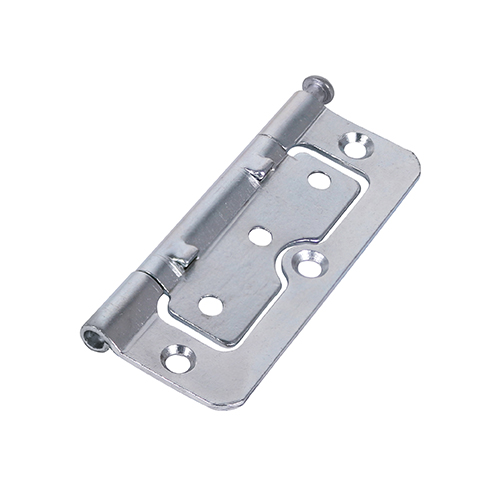

Hurlinge - Loose Pin (104Z) - Zinc
100 x 66
- Product Code: 434432P
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5056110884806
