Product Information
Ideal for use in a variety of joinery applications. Commonly used for light cupboards, cabinets, bifold, louvre doors and shutters.
- Offset knuckle provides an even appearance between the door and frame
- Flush finish enables a quick and easy fitting with no morticing required
- Lugs on the knuckle for quick and simple alignment
- Manufactured from steel and available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 101 |
| L1 x W1 mm | 101 x 39 |
| L2 x W2 mm | 66 x 27 |
| Open Width mm | 66 |
| Size L x W mm | 101 x 66 |
| Thickness mm | 2 |
| Corner Type | Radius |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.18 |
| Carton Qty Packs | 60 |
| Pallet Qty Packs | 1,800 Pairs |
| Pattern | 104 |
| Product Code | 434819 |
| SKU Barcode | 5056110808819 |
| Size imp | 4 |
| Knuckle Dia mm | 9 |
| Hole Dia mm | 5.8 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Electro Brass |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

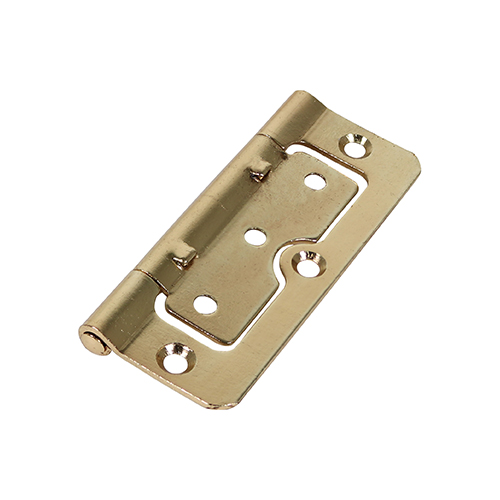

Hurlinge - Fixed Pin (104) - Electro Brass
101 x 66
- Product Code: 434819
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110808819
