Product Information
A heavy duty catch that is ideal for field and equestrian gates. An elongated handle allows gates to be used by horse riders without the need to dismount. The latch automatically engages when the gate is closed and is pad-lockable for additional security. The catch requires an in front of post gate mounting. Fixings included.
Documents
Technical Specifications
Product Specification
| Backplate Size L x W mm | 150 x 30 |
| Catch Projection mm | 120 |
| Coach Screw Size mm | M10 x 65 |
| Handle Length mm | 300 |
| Total Length mm | 425 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| No of Coach Screws | 2 |
| Pack Dimensions L x W x H mm | 490 x 161 x 38 |
| Pack Weight kg | 1.448 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 125 |
| Product Code | HLC425G |
| SKU Barcode | 5055893360088 |
| Strike Peg Size Dia x L mm | 12.0 x 150 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Included Items | M10 x 65mm Coach Screws (Qty 2), M12 Hex Nut (Qty 1), M12 Washer (Qty 1) |
Attribute Group 1
| Brand | TIMCO |

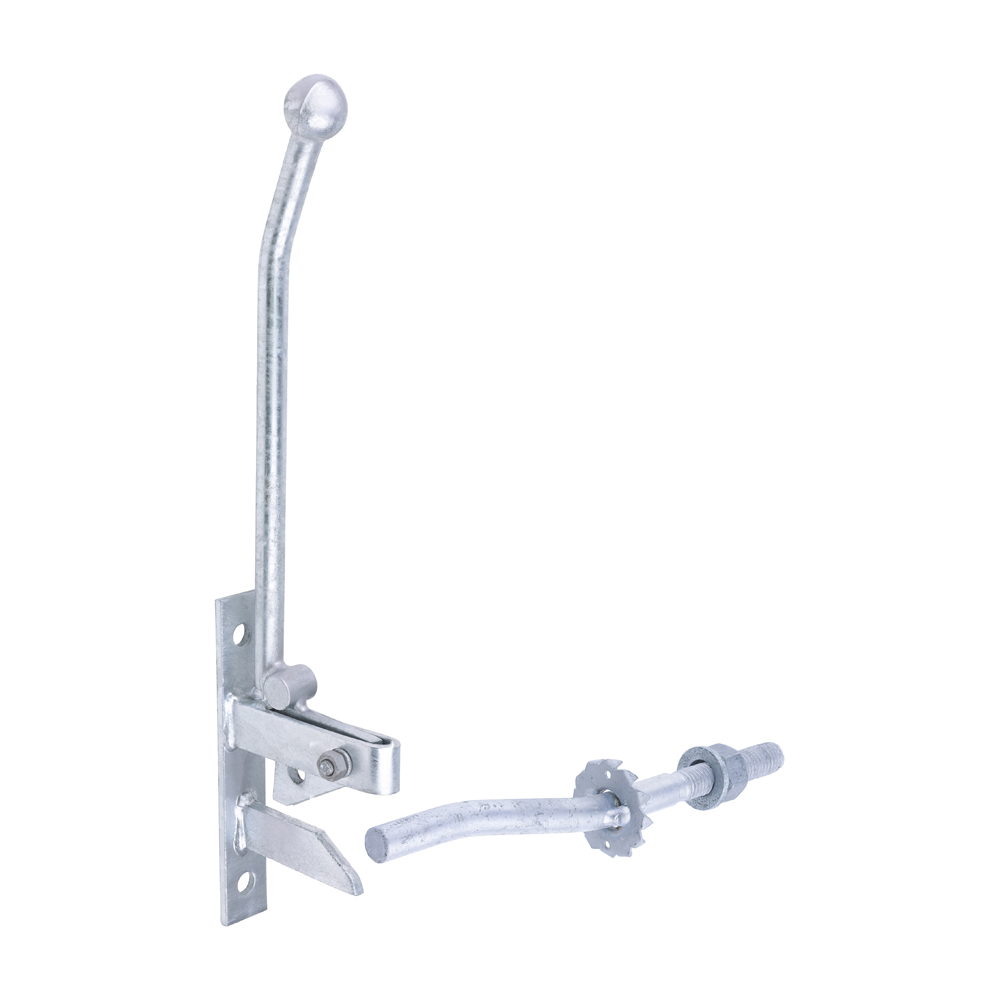

Hunting Type Lift Gate Catch With Cranked Striker - Hot Dipped Galvanised
425mm
- Product Code: HLC425G

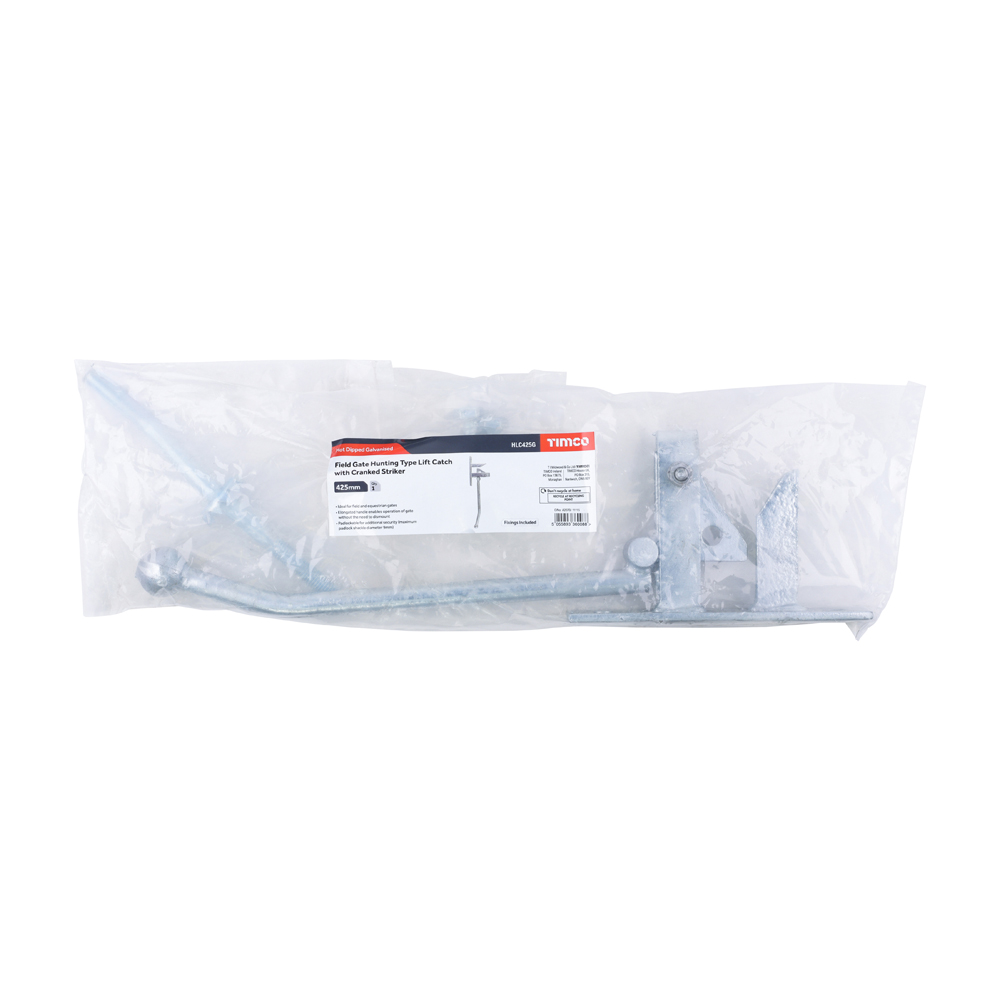

- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893360088
