Product Information
Manufactured from a high grade M2 tool steel. This durable engineering quality drill will give a consistent rapid performance when drilling larger diameter holes into all non-alloy materials. Can be used in a 1/2" chuck.
The 118° split point prevents the bit from drifting. Mainly used for drilling sheet metal.
- The 118° split point prevents the bit from drifting
- M2 grade HSS (High Speed Steel) with Black Oxide coating
- 12.5mm diameter shank
- Dimensionally precise
- Milled Flute
Documents
Technical Specifications
Product Specification
| Size mm | 25.0 x 152 |
| Total Length mm | 152 |
| Working Length mm | 75 |
| Drill Tip | 118° Split |
| Shank Type | Straight |
| Pack Dimensions L x W x H mm | 40 x 40 x 200 |
| Pack Weight kg | 0.33 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | BSD25 |
| SKU Barcode | 5056110859675 |
| Drill Dia mm | 25 |
Product Specifications
| Finish | Black Oxide |
| Material | M2 Grade HSS Steel |
| Substrates | Plastic, Steel, Aluminium, Non-Ferrous Metals, Cast Iron |
Attribute Group 1
| Brand | TIMCO |

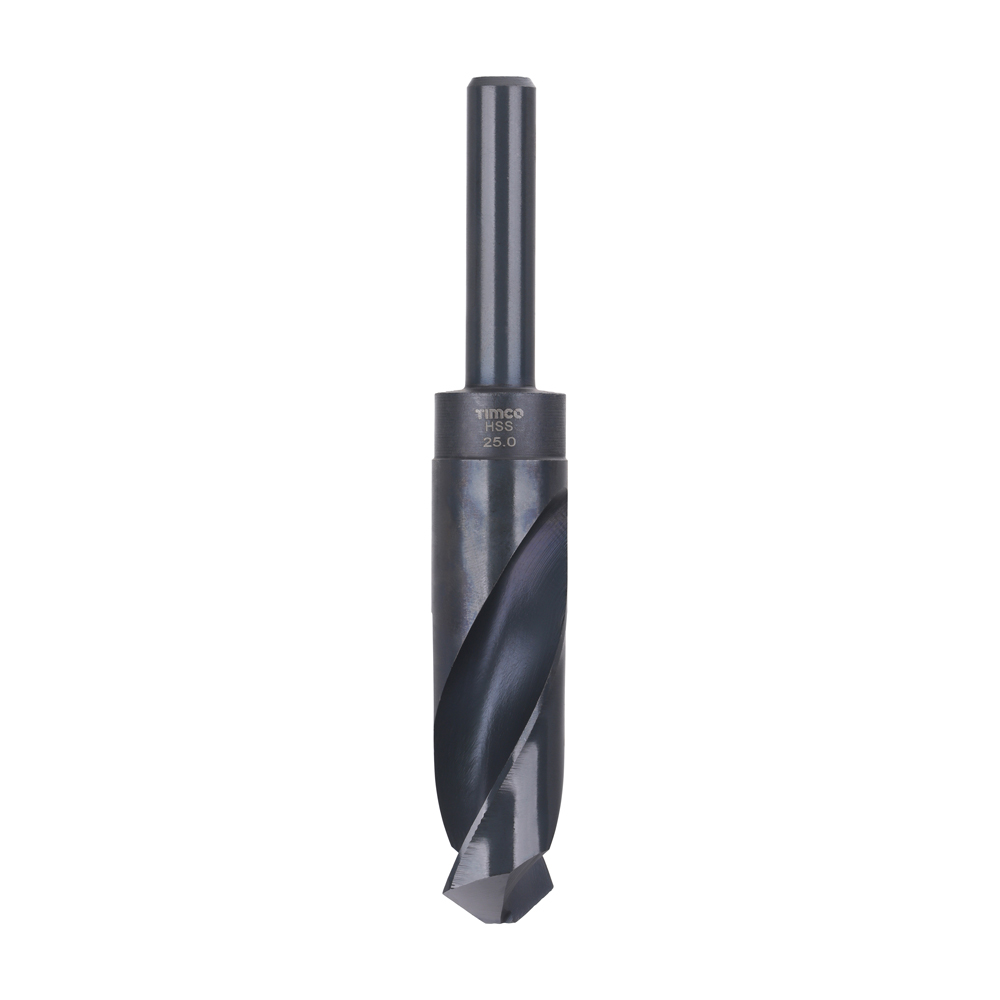

HSS-M Blacksmith Drill Bit
25.0mm
- Product Code: BSD25

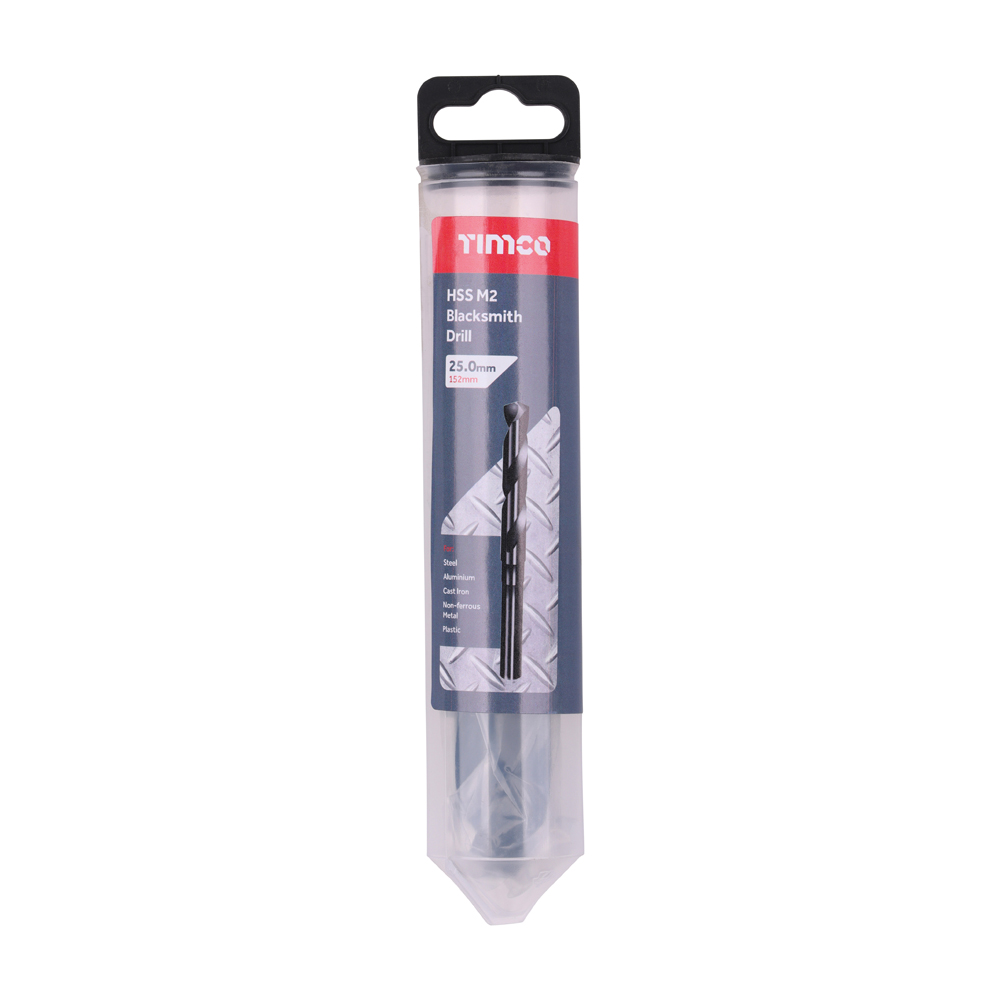

- Pack Type: Tube
- Pack Quantity: 1
- Barcode: 5056110859675
