Product Information
A heavy duty hook on plate to suit fieldgate bands. Enables the gate to be lifted off for maintenance purposes. Alternatively, mounting upside down will prevent the gate front being lifted off preventing unwanted access.
Documents
Technical Specifications
Product Specification
| Hook Plate Size L x W mm | 100 x 100 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 134 x 102 x 78 |
| Pack Weight kg | 0.8 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 390 |
| Product Code | HSP19GEA |
| SKU Barcode | 5056110860237 |
| Pin Dia mm | 19 |
| Pin Dia inch | 3/4 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

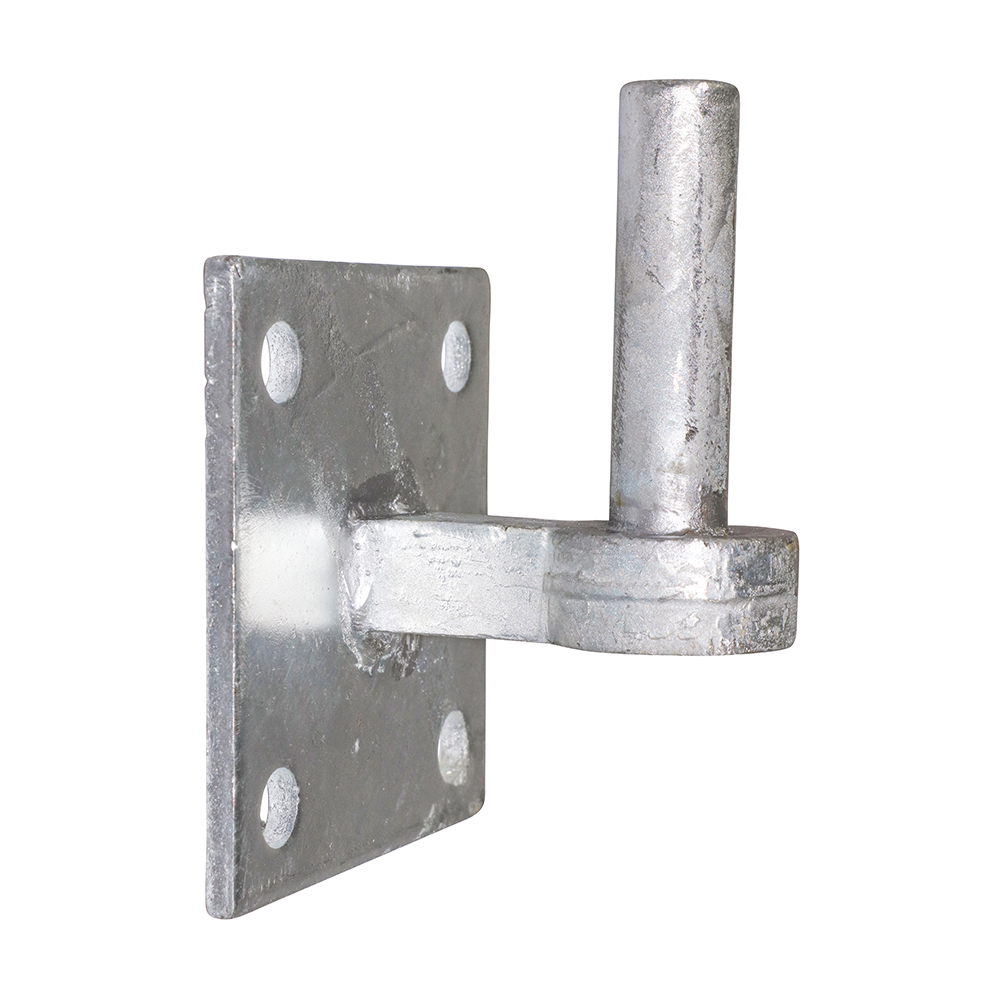

Hook on Square Plate - Hot Dipped Galvanised
19mm
- Product Code: HSP19GEA
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5056110860237
