Product Information
A fully threaded set screw used in a variety of applications. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. NOTE: Nuts not included.
Documents
Technical Specifications
Product Specification
| Length mm | 25 |
| Size mm | M10 x 25 |
| Socket Size mm | 17 |
| Head Type | Hex |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Substrates | Steel, Thin Sheet Metal |
| Pack Dimensions L x W x H mm | 120 x 90 x 20 |
| Pack Weight kg | 0.24 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | 3600 |
| DIN Standard | DIN 933 |
| Product Code | S1025SSX |
| SKU Barcode | 5055893341124 |
| Thread Dia mm | M10 |
Attribute Group 1
| Brand | TIMCO |

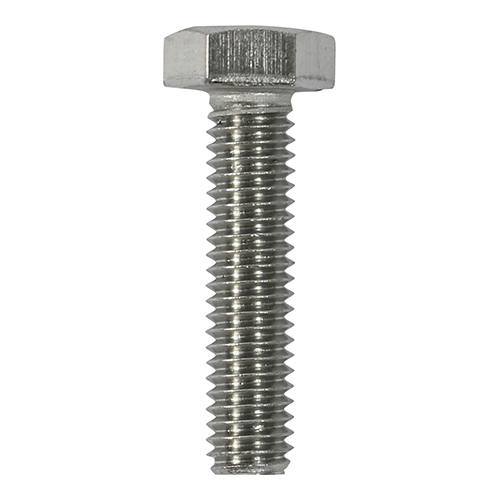

Hex Set Screws - A2 Stainless Steel
M10 x 25
- Product Code: S1025SSX
- Pack Type: Bag
- Pack Quantity: 10
- Barcode: 5055893341124
