Product Information
Designed as an alternative to the traditional coach screw. This heavy duty screw dramatically decreases installation time as it doesn’t require a pilot hole into most wood types. This screw is ideal for external applications or where extra strength is required. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test.
  • Hex head countersunk with a fixed washer
  • Patented silver corrosion resistant plating
  • 50° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash point to reduce torque and the risk of timber splitting at low edge distance
  • Helix removes debris and helps improve clamping
Documents
Technical Specifications
Product Specification
Length mm 75
Diameter mm 8.0
Size mm 8.0 x 75
Socket Size mm 10
Thread Length mm 40
Shank Type Helix
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Pack Dimensions L x W x H mm 195 x 128 x 26
Pack Weight kg 0.234
Carton Qty Packs 10
Pallet Qty Packs 1200
CE Standard Web BS EN 14592:2008
Offers Sale
Product Code 875INI
SKU Barcode 5056110870847
Thread Dia mm 8
Inner Thread Dia mm 5.26
Fixed Washer Dia mm 14.55
Product Specifications
Colour Silver
Finish Exterior (Silver Organic)
Head Type Hex Flange
Material Carbon Steel
Point Type 25° Sharp with Single Slash
Recess Type External Hex
Thread Coverage Partially Threaded
Thread Type 50° Single Deep
Included Items Socket Driver (Qty 1)
Attribute Group 1
Brand TIMCO

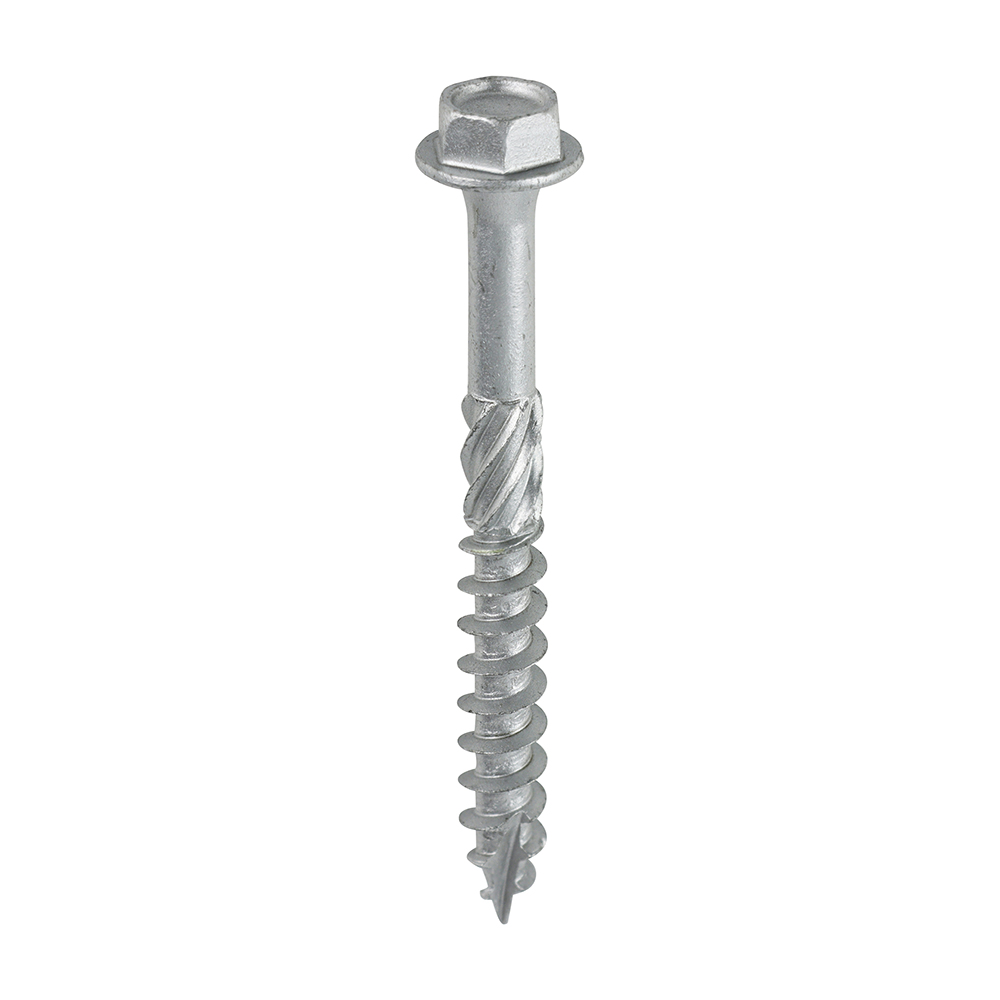

Hex Head Timber Screw - Silver

8.0 x 75

  • Product Code: 875INI

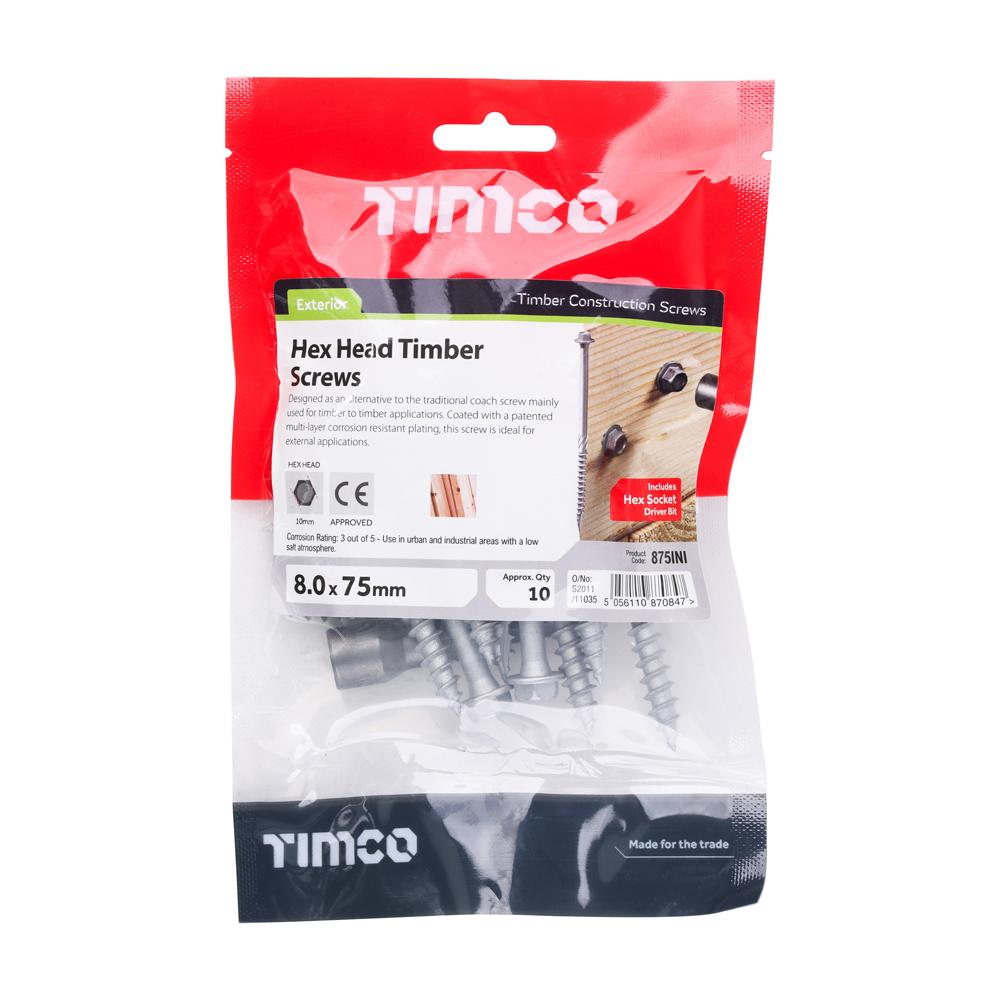

  • Pack Type: TIMbag
  • Pack Quantity: 10
  • Barcode: 5056110870847
