Product Information
A traditional nut used for all bolting and fastening applications. Zinc plated for internal use.
- Plated in Trivalent Chromium (Cr3) Zinc
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Height mm | 6.5 |
| Size mm | M8 |
| Socket Size mm | 13 |
| Thread Pitch mm | 1.25 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 180 x 152 x 50 |
| Pack Weight kg | 1.36 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 435 |
| DIN Standard | DIN 934 |
| Product Code | 8HNUTZB |
| SKU Barcode | 5055331821751 |
| Thread Dia mm | M8 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |

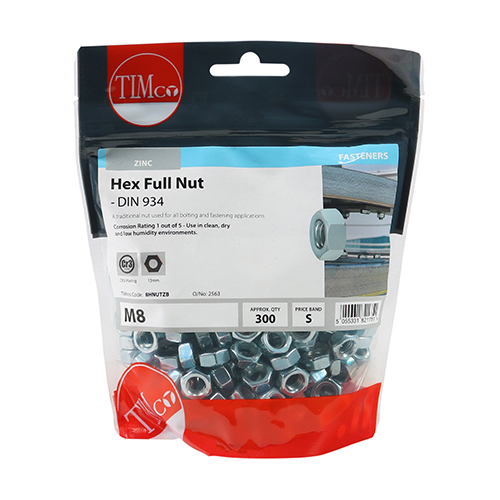

Hex Full Nuts - Zinc
M8
- Product Code: 8HNUTZB
- Pack Type: TIMbag
- Pack Quantity: 300
- Barcode: 5055331821751
