Product Information

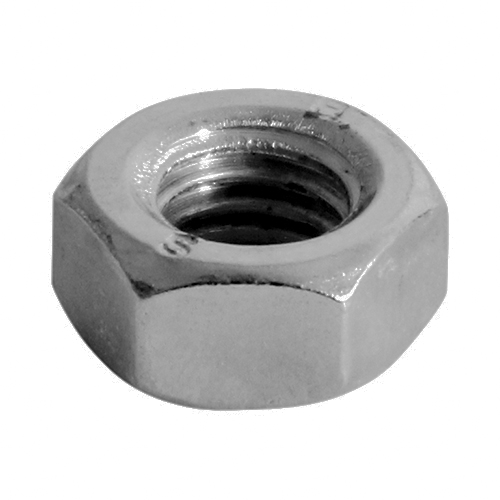

A traditional nut used for all bolting and fastening applications. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics.
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Height mm | 6.5 |
| Size mm | M8 |
| Socket Size mm | 13 |
| Thread Pitch mm | 1.25 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.094 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 934 |
| Product Code | NH8SSP |
| SKU Barcode | 5055893369203 |
| Thread Dia mm | M8 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
| Nut Type | Hex Full |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |

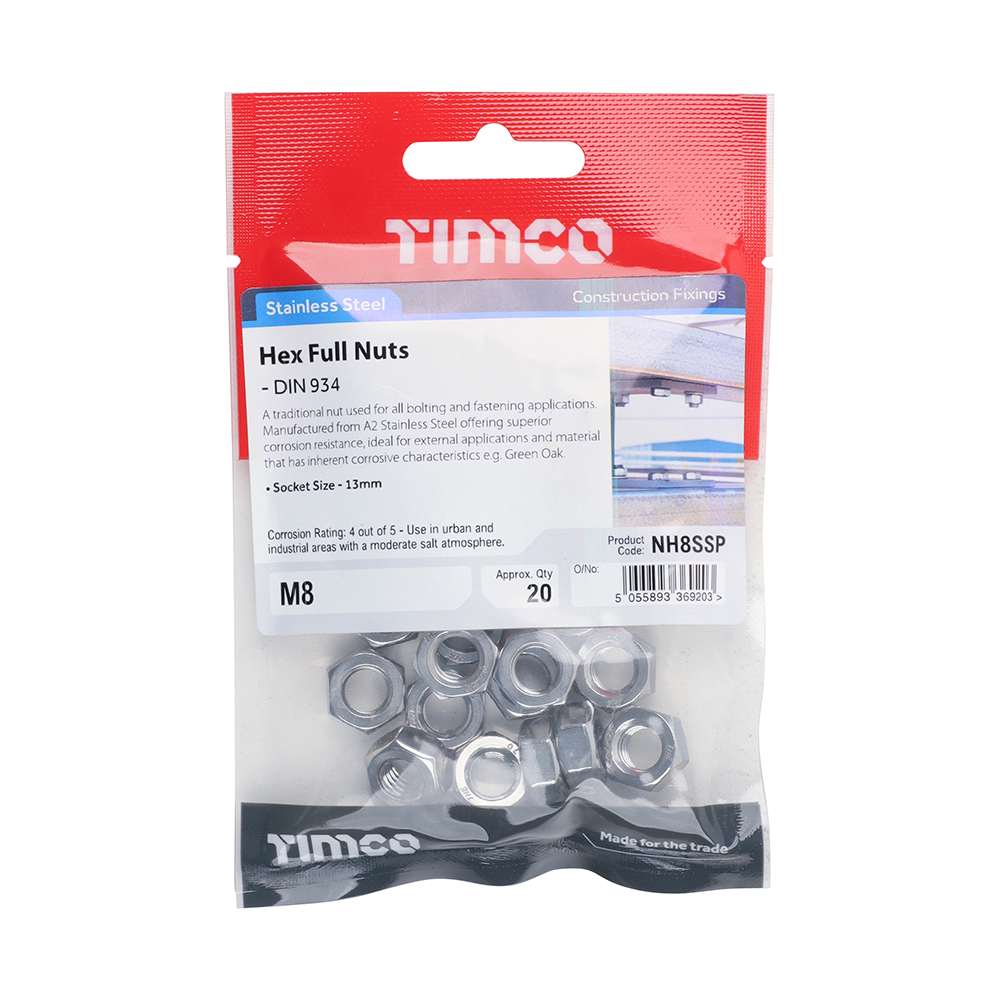

Hex Full Nuts - Stainless Steel
M8
- Product Code: NH8SSP
- Pack Type: TIMpac
- Pack Quantity: 20
- Barcode: 5055893369203
