Product Information

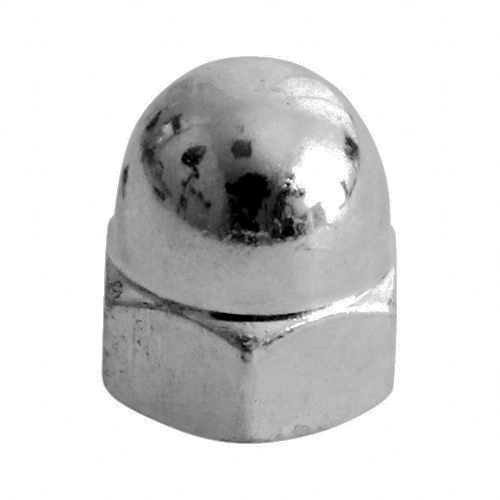

A hexagonal dome nut with a metric thread. Ideal for protective or aesthetic uses. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics.
- Conforms to DIN 1587
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Height mm | 12 |
| Size mm | M6 |
| Socket Size mm | 10 |
| Thread Pitch mm | 1 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 95 x 90 x 10 |
| Pack Weight kg | 0.04 |
| Carton Qty Packs | 300 |
| Pallet Qty Packs | 18000 |
| DIN Standard | DIN 1587 |
| Product Code | ND6SSX |
| SKU Barcode | 5055893340561 |
| Thread Dia mm | M6 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
| Nut Type | Nylon - Type T |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |
Hex Dome Nuts - A2 Stainless Steel
M6
- Product Code: ND6SSX
- Pack Type: Bag
- Pack Quantity: 10
- Barcode: 5055893340561
