Product Information
For extending the length of threaded bar.
- Plated in Trivalent Chromium (Cr3) Zinc
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Height mm | 36 |
| Size mm | M12 |
| Socket Size mm | 19 |
| Thread Pitch mm | 1.75 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 198 x 134 x 92 |
| Pack Weight kg | 5.8 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 128 |
| DIN Standard | DIN 6334 |
| Product Code | NC12Z |
| SKU Barcode | 5055331892980 |
| Thread Dia mm | M12 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Material | Carbon Steel |
| Nut Type | Hex Connector |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |

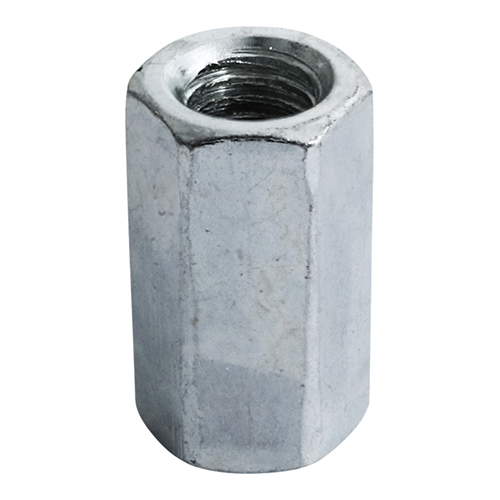

Hex Connector Nuts - Zinc
M12
- Product Code: NC12Z
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055331892980
