Product Information
For extending the length of threaded bar.
- Plated in Trivalent Chromium (Cr3) Zinc
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Height mm | 60 |
| Size mm | M20 |
| Socket Size mm | 30 |
| Thread Pitch mm | 2.5 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 196 x 132 x 94 |
| Pack Weight kg | 6.78 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 128 |
| DIN Standard | DIN 6334 |
| Product Code | NC20Z |
| SKU Barcode | 5055331893000 |
| Thread Dia mm | M20 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Material | Carbon Steel |
| Nut Type | Hex Connector |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |

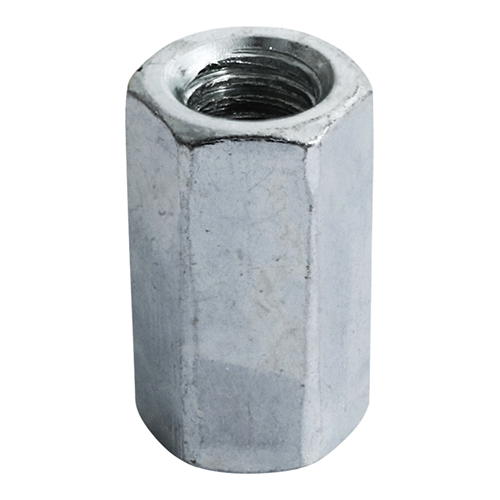

Hex Connector Nuts - Zinc
M20
- Product Code: NC20Z
- Pack Type: Box
- Pack Quantity: 25
- Barcode: 5055331893000
