Product Information
For extending the length of threaded bar.
- Plated in Trivalent Chromium (Cr3) Zinc
- Standard metric thread
Documents
Technical Specifications
Product Specification
| Height mm | 24 |
| Size mm | M8 |
| Socket Size mm | 13 |
| Thread Pitch mm | 1.25 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.074 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 6334 |
| Product Code | NC8ZP |
| SKU Barcode | 5055893384060 |
| Thread Dia mm | M8 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Material | Carbon Steel |
| Nut Type | Hex Connector |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |

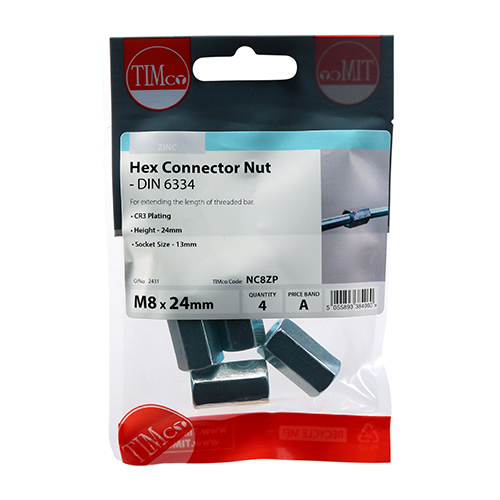

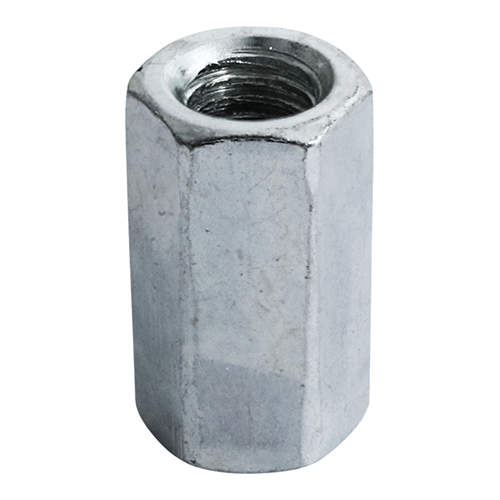

Hex Connector Nuts - Zinc
M8
- Product Code: NC8ZP
- Pack Type: TIMpac
- Pack Quantity: 4
- Barcode: 5055893384060
