Product Information

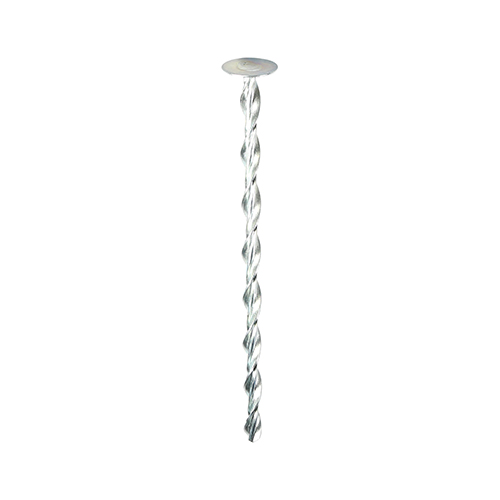

Hammer driven fixing frequently used for securing structural 6mm plywood composite insulation board to flat roofing systems. Manufactured from zinc plated high tensile steel, the fixing twists into timber without the need for pre-drilling.
Documents
Technical Specifications
Product Specification
| Length mm | 135 |
| Diameter mm | 8 |
| Material Grade | 8.8 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Fixture Thickness mm | 100 |
| Min Embedment Depth mm | 35 |
| Pack Dimensions L x W x H mm | 190 x 150 x 30 |
| Pack Weight kg | 0.456 |
| Carton Qty Packs | 48 |
| Pallet Qty Packs | N/A |
| Product Code | 269991 |
| SKU Barcode | 5056110834351 |
| Size Dia x L mm | 8.0 x 135 |
| Head Dia mm | 20 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Substrates | Timber |
Attribute Group 1
| Brand | TIMCO |

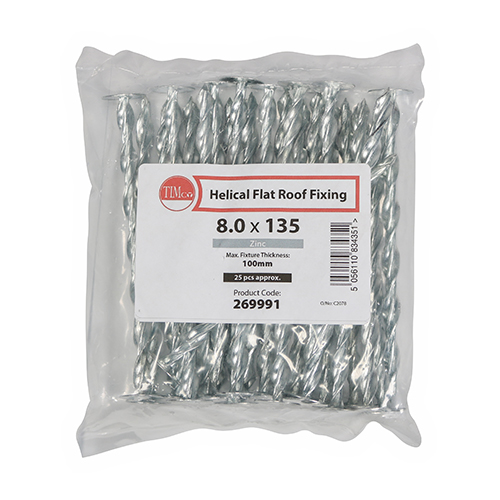

Helical Flat Roof Fixing - Zinc
8.0 x 135
- Product Code: 269991
- Pack Type: Bag
- Pack Quantity: 25
- Barcode: 5056110834351
