Product Information
Ideal for securing the bottom of gates and doors in commercial and industrial applications. The bolts are pad-lockable and fixed with carriage bolts for added security. Extended bolt length for ease of operation and an adjustable bolt throw by moving the keep position. Fixings included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 18 |
| Bolt Length mm | 460 |
| Carriage Bolt Size mm | M6 x 50 |
| Flat Keep Size L x W mm | 61 x 29 |
| Nut Size mm | M6 |
| Plate Size L x W mm | 95 x 64 |
| Staple Plate Size L x W mm | 65 x 55 |
| Washer Size mm | M6 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 4.0 x 30 |
| Max Padlock Shackle Diameter mm | 16 |
| No of Nuts | 6 |
| No of CSK Screws | 20 |
| No of Carriage Bolts | 6 |
| No of Washers | 6 |
| Pack Dimensions L x W x H mm | 529 x 172 x 42 |
| Pack Weight kg | 1.908 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | LDDB18GP |
| SKU Barcode | 5055893366714 |
| Socket Keep Size Dia x L mm | 18.0 x 50 |
| Flat Keep Hole Dia mm | 20 |
| Bolt Dia mm | 14 |
| Rec Screw Dia mm | 4.0 |
| To Fit Carriage Bolt Dia mm | M6 |
| No of Bolt Holes | 4 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | M6 x 50mm Carriage Bolts (Qty 6), M6 Washers (Qty 6), M6 Hex Full Nuts (Qty 6), 4.0 x 30mm Countersunk Screws (Qty 16) |
Attribute Group 1
| Brand | TIMCO |

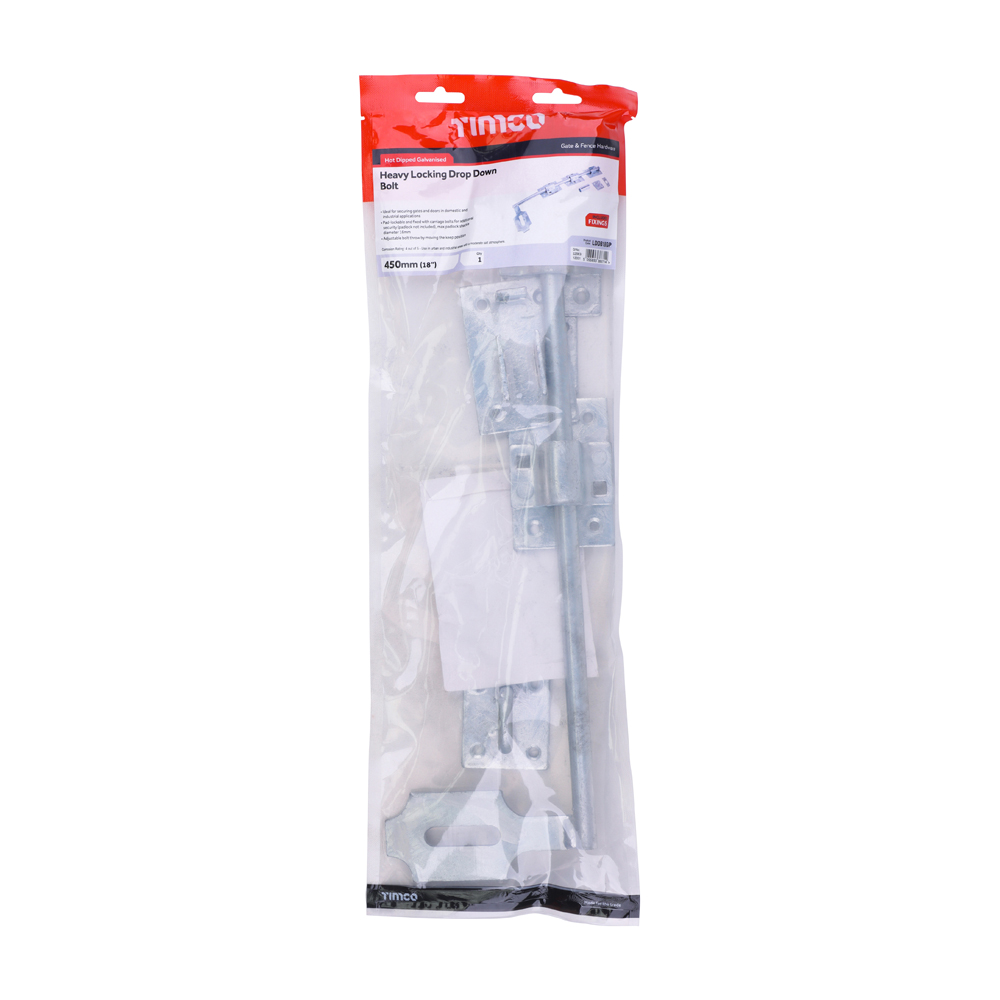

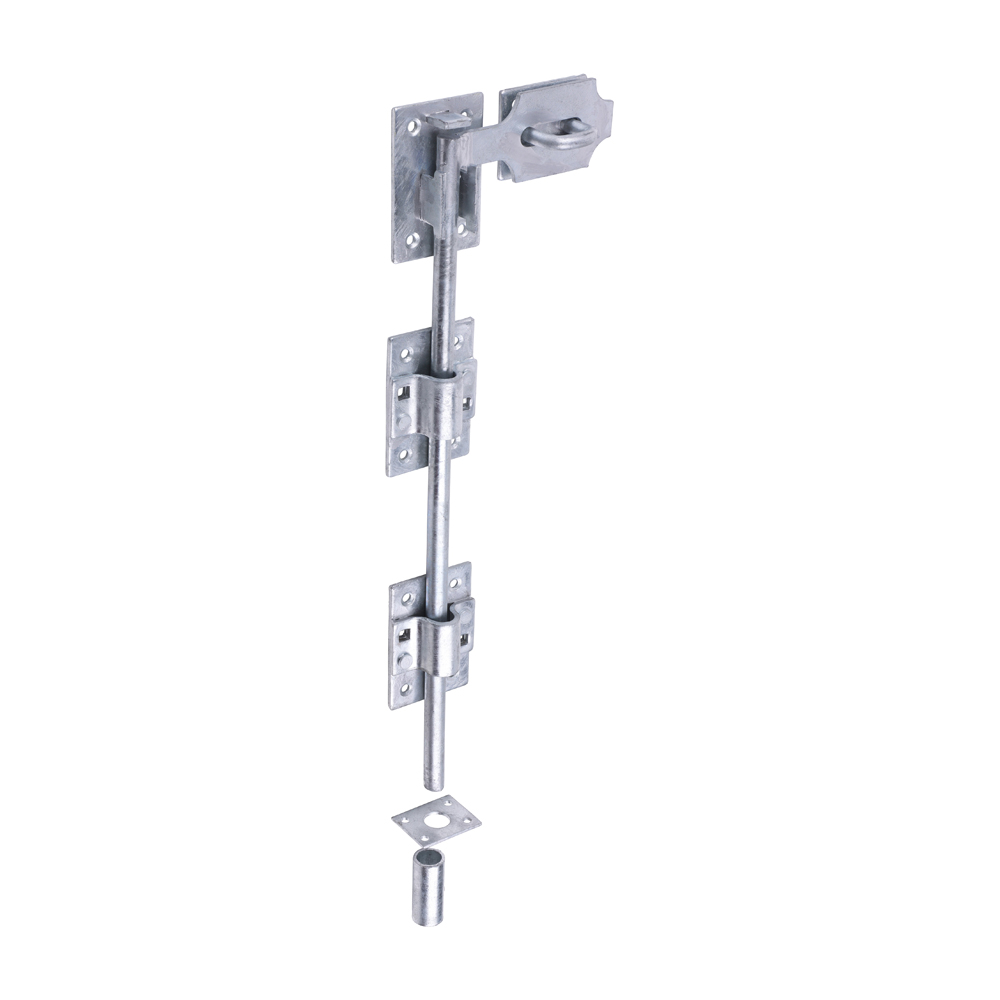

Heavy Locking Drop Down Bolt - Hot Dipped Galvanised
18"
- Product Code: LDDB18GP
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893366714
