Product Information

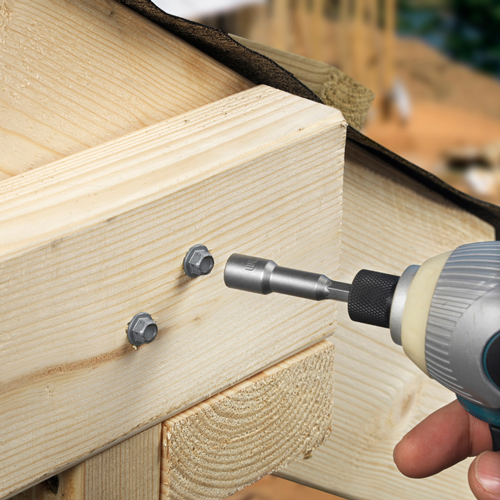

Designed as an alternative to the traditional coach screw. This heavy duty screw dramatically decreases installation time as it doesn’t require a pilot hole into most wood types. This screw is ideal for external applications or where extra strength is required. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test.
  • Hex head countersunk with a fixed washer
  • Patented silver corrosion resistant plating
  • 50° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash point to reduce torque and the risk of timber splitting at low edge distance
  • Helix removes debris and helps improve clamping
Documents
Technical Specifications
Product Specification
Length mm 100
Diameter mm 10.0
Size mm 10.0 x 100
Socket Size mm 13
Thread Length mm 60
Shank Type Helix
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Pack Dimensions L x W x H mm 20 x 130 x 200
Pack Weight kg 0.46
Carton Qty Packs 5
Pallet Qty Packs 600
CE Standard Web BS EN 14592:2008
Offers Sale
Product Code 10100INI
SKU Barcode 5055893387405
Thread Dia mm 10
Inner Thread Dia mm 6.56
Fixed Washer Dia mm 18.11
Product Specifications
Colour Silver
Finish Exterior (Silver Organic)
Head Type Hex Flange
Material Carbon Steel
Point Type 25° Sharp with Single Slash
Recess Type External Hex
Thread Coverage Partially Threaded
Thread Type 50° Single Deep
Included Items Socket Driver (Qty 1)
Attribute Group 1
Brand TIMCO

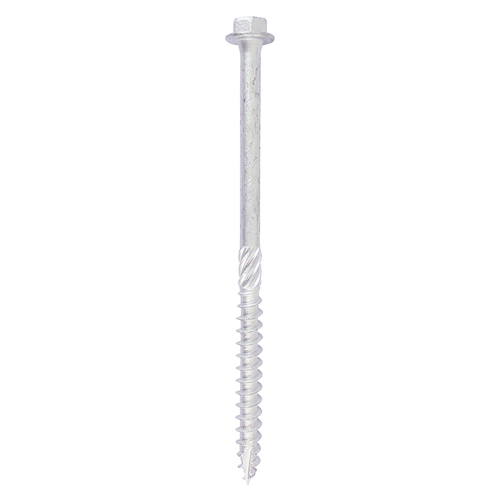

Heavy Duty Timber Screws - Hex - Exterior - Silver

10 x 100

  • Product Code: 10100INI
  • Pack Type: TIMbag
  • Pack Quantity: 10
  • Barcode: 5055893387405
