Product Information

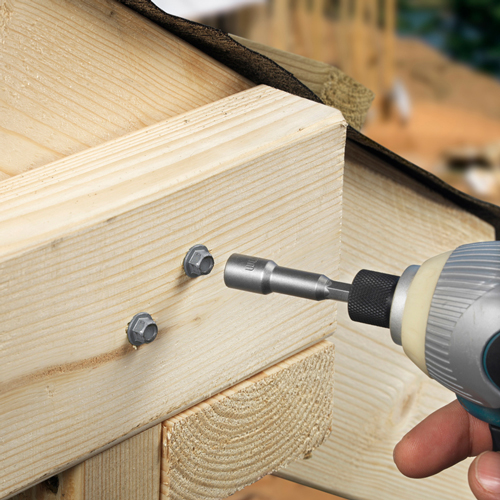

Designed as an alternative to the traditional coach screw. This heavy duty screw dramatically decreases installation time as it doesn’t require a pilot hole into most wood types. This screw is ideal for external applications or where extra strength is required. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test.

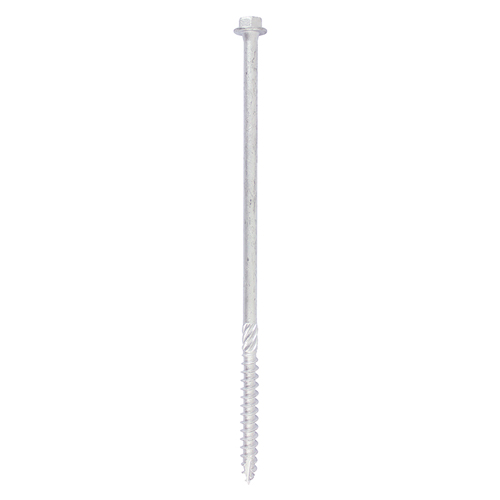

  • Hex head countersunk with a fixed washer
  • Patented silver corrosion resistant plating
  • 50° deep single thread to provide a secure fixing with high pull-out resistance
  • Single slash point to reduce torque and the risk of timber splitting at low edge distance
  • Helix removes debris and helps improve clamping
Documents
Technical Specifications
Product Specification
Length mm 200
Diameter mm 10.0
Size mm 10.0 x 200
Socket Size mm 13
Thread Length mm 60
Colour Silver
Finish Exterior (Silver Organic)
Head Type Hex Flange
Material Carbon Steel
Point Type 25° Sharp with Single Slash
Recess Type External Hex
Shank Type Helix
Thread Coverage Partially Threaded
Thread Type 50° Single Deep
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Included Items Socket Driver (Qty 1)
Pack Dimensions L x W x H mm 284 x 126 x 31
Pack Weight kg 0.848
Carton Qty Packs 5
Pallet Qty Packs 600
CE Standard Web BS EN 14592:2008
Product Code 10200INI
SKU Barcode 5055893387443
Thread Dia mm 10
Inner Thread Dia mm 6.56
Fixed Washer Dia mm 18.11
Attribute Group 1
Brand TIMCO

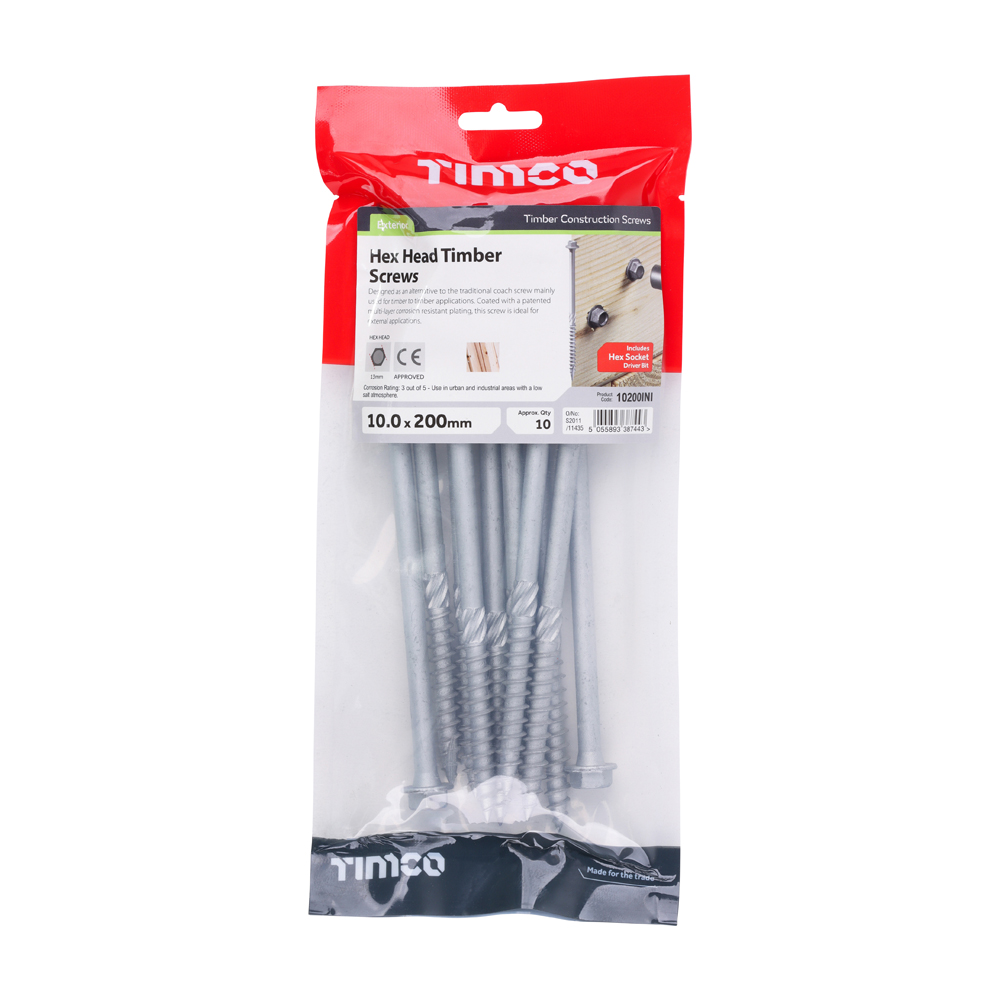

Heavy Duty Timber Screws - Hex - Exterior - Silver

10 x 200

  • Product Code: 10200INI
  • Pack Type: TIMbag
  • Pack Quantity: 10
  • Barcode: 5055893387443
