Product Information
Heavy cross pattern bolts are typically used for securing large garage doors and gates in industrial and agricultural applications. They are extremely strong, pad-lockable and fixed with carriage bolts for high security. Fixings not included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 24 |
| Bolt Length mm | 600 |
| Bolt Throw mm | 190 |
| Plate Size L x W mm | 600 x 64 |
| Staple Keep Size L x W mm | 145 x 64 |
| Staple Plate Size L x W mm | 65 x 55 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Padlock Shackle Diameter mm | 16 |
| Pack Dimensions L x W x H mm | 220 x 20 x 700 |
| Pack Weight kg | 3.38 |
| Carton Qty Packs | 2 |
| Pallet Qty Packs | N/A |
| Product Code | 282852 |
| SKU Barcode | 5055893389997 |
| Bolt Dia mm | 16 |
| Rec Screw Dia mm | 5.0 |
| To Fit Carriage Bolt Dia mm | M8 |
| No of Bolt Holes | 6 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

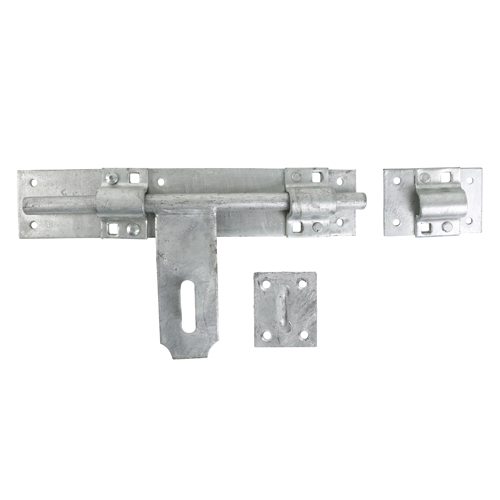

Heavy Cross Pattern Door Bolt - Hot Dipped Galvanised
24"
- Product Code: 282852
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893389997
