Product Information
Heavy brenton padbolts are used for securing flush mounted gates and shed doors in heavy domestic, commercial and agricultural applications. They are pad-lockable and fixed with carriage bolts for added security. Fixings included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 6 |
| Bolt Length mm | 150 |
| Bolt Throw mm | 50 |
| Carriage Bolt Size mm | M6 x 50 |
| Nut Size mm | M6 |
| Plate Size L x W mm | 170 x 60 |
| Staple Keep Size L x W mm | 60 x 40 |
| Washer Size mm | M6 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Padlock Shackle Diameter mm | 14 |
| No of Pan Screws | 6 |
| No of Nuts | 4 |
| No of Carriage Bolts | 4 |
| No of Washers | 4 |
| Pan Screw Size mm | 4.0 x 30 |
| Pack Dimensions L x W x H mm | 40 x 120 x 330 |
| Pack Weight kg | 0.66 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 287258 |
| SKU Barcode | 5055893395059 |
| Bolt Dia mm | 16 |
| Rec Screw Dia mm | 4.0 |
| To Fit Carriage Bolt Dia mm | M6 |
| No of Bolt Holes | 4 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | M6 x 50mm Carriage Bolts (Qty 4), M6 Hex Full Nuts (Qty 4), M6 Washers (Qty 4), 4.0 x 30mm Pan Screws (Qty 6) |
Attribute Group 1
| Brand | TIMCO |

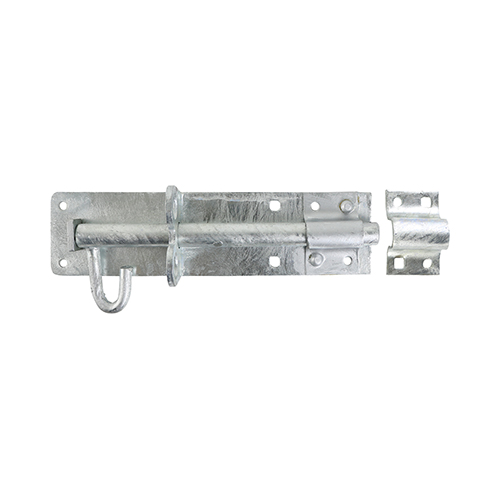

Heavy Brenton Padbolt - Hot Dipped Galvanised
6"
- Product Code: 287258

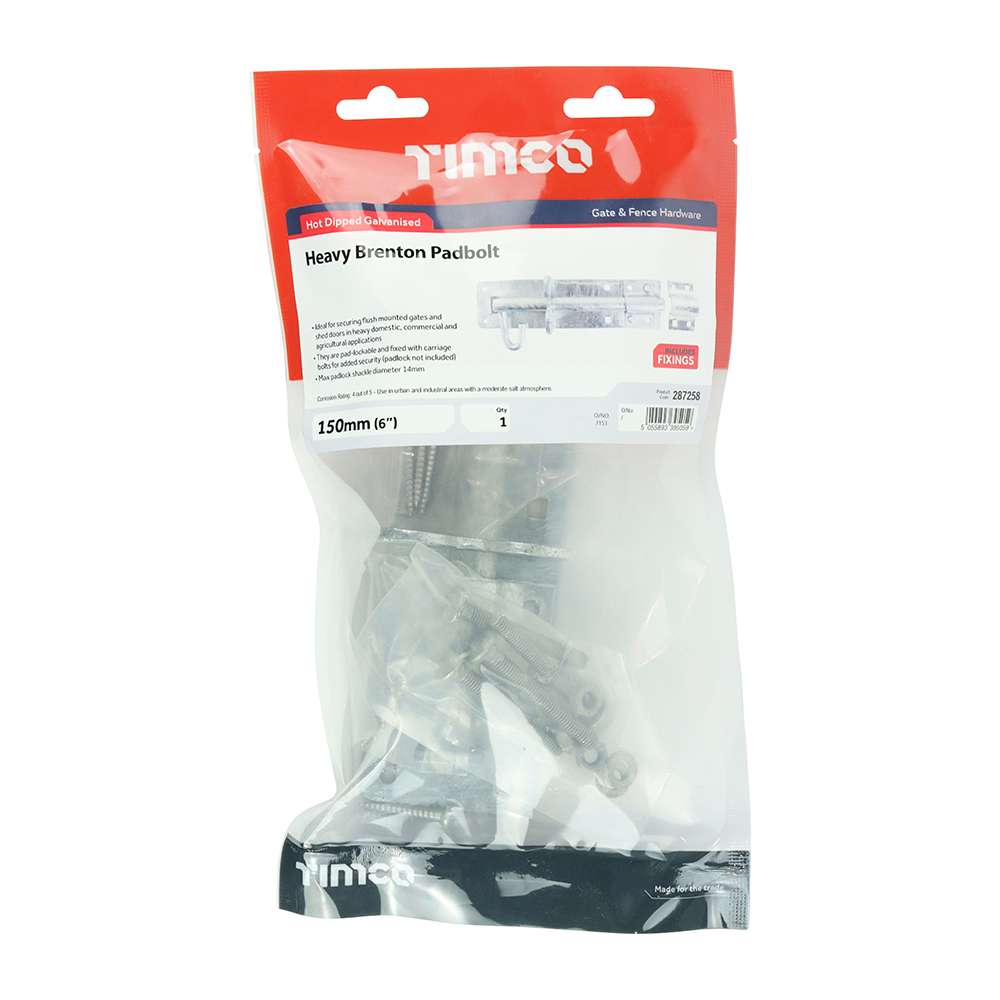

- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893395059
