Product Information
For drilling carbon and alloy steel, cast iron, non-ferrous metal and plastics. 135° split point tip from 3mm and above prevents the bit from drifting and enables faster penetration.
- Fully ground from solid material
- High grade M2 alloyed High Speed Steel (HSS)
- Manufactured to DIN 340
- Dimensionally precise
- High performance 135° split point tip eradicates the need to pre-drill/centre punch.
Documents
Technical Specifications
Product Specification
| Size mm | 4.8 x 132 |
| Total Length mm | 132 |
| Working Length mm | 87 |
| Drill Tip | 135° Split |
| Shank Type | Straight |
| Pack Dimensions L x W x H mm | 170 x 35 x 34 |
| Pack Weight kg | 0.19 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 340 |
| Product Code | HSSGL48 |
| SKU Barcode | 5055017539680 |
| Drill Dia mm | 4.8 |
Product Specifications
| Material | M2 Alloyed HSS Steel |
| Substrates | Plastic, Steel, Aluminium, Non-Ferrous Metals, Cast Iron |
Attribute Group 1
| Brand | TIMCO |

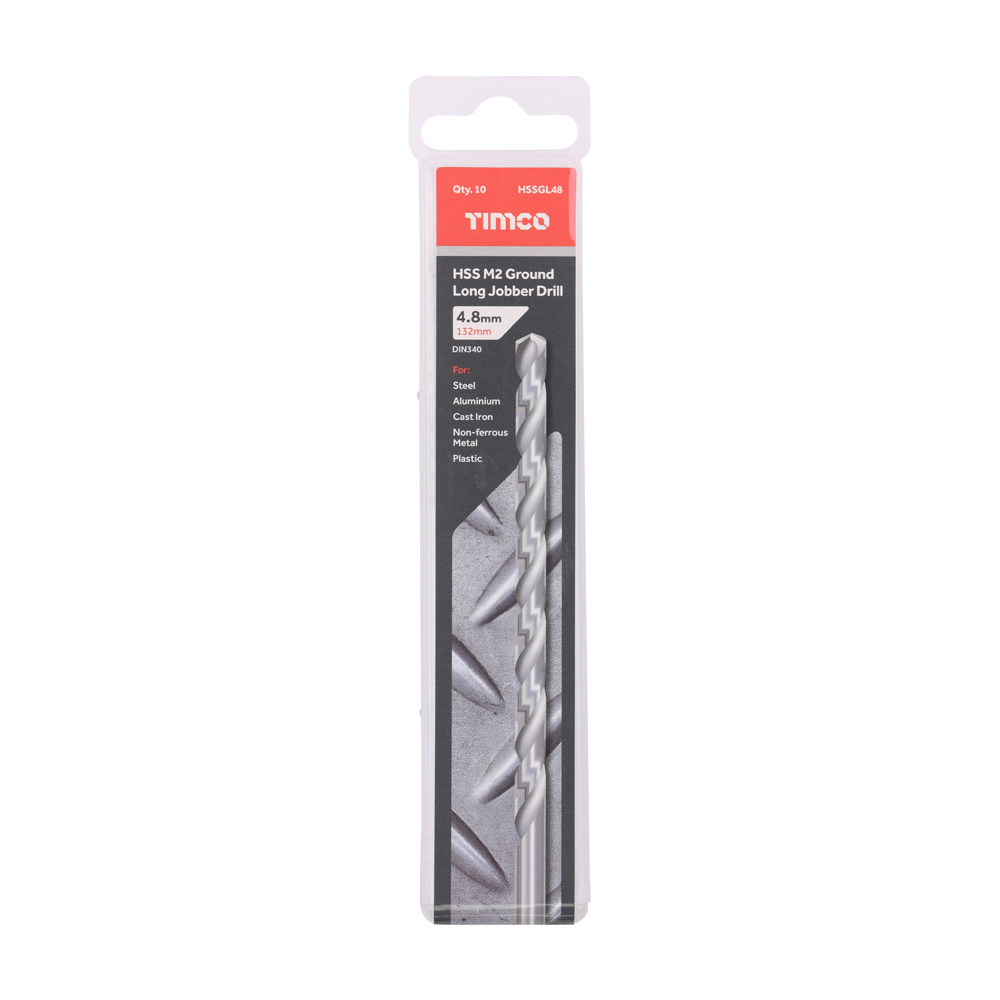

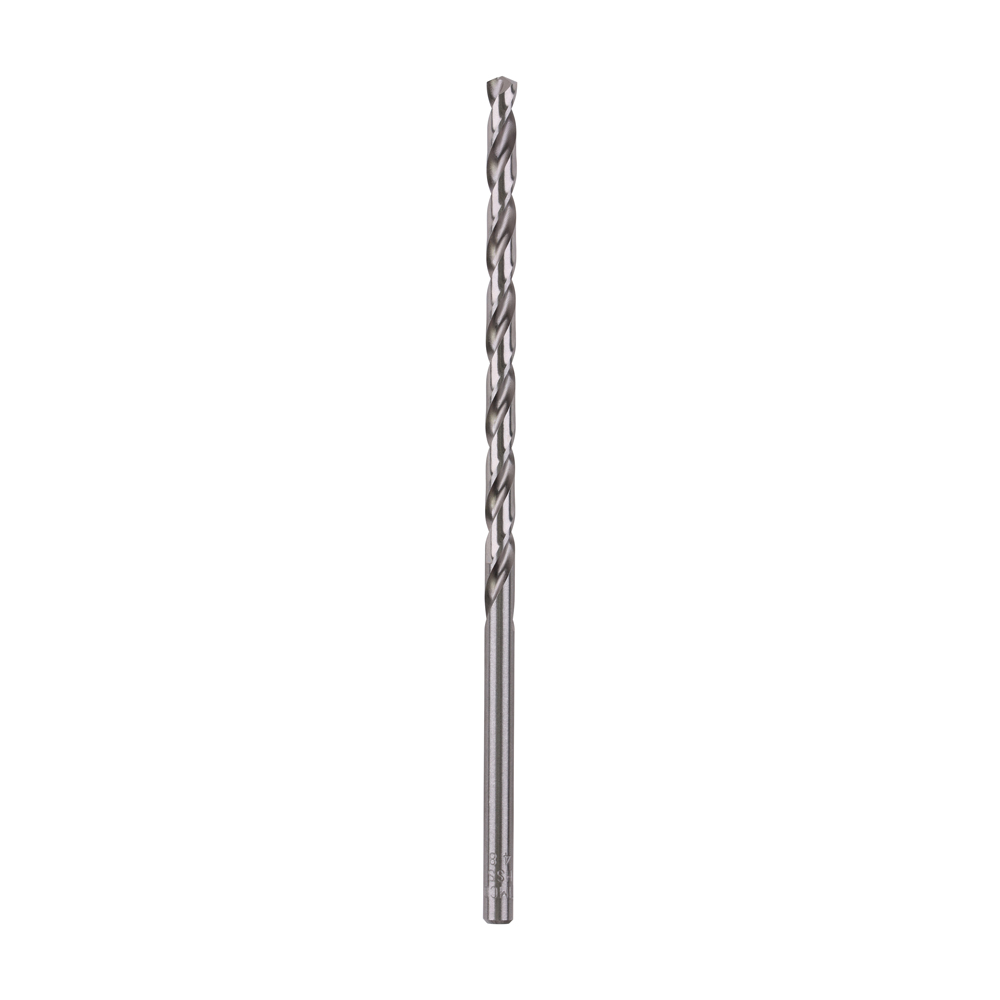

Ground Long Jobber Drills - HSS M2
4.8mm
- Product Code: HSSGL48
- Pack Type: Tube
- Pack Quantity: 10
- Barcode: 5055017539680
