Product Information

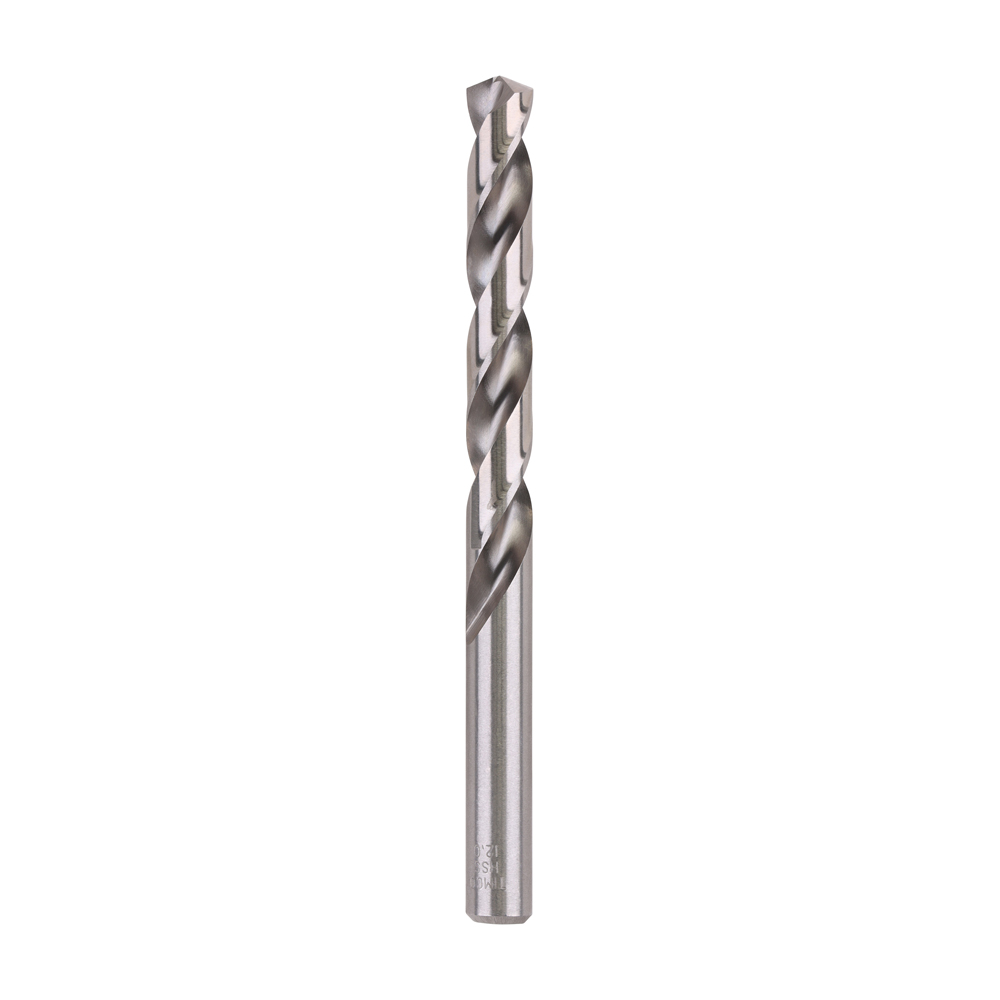

Manufactured from a high grade M2 tool steel. This durable engineering quality drill will give a consistent rapid performance into all non-alloy materials. The 135° split point prevents the bit from drifting and enables faster penetration.
  • Fully ground from solid material
  • High grade M2 alloyed High Speed Steel (HSS)
  • Manufactured to DIN 338
  • Dimensionally precise
  • High performance 135° split point tip eradicates the need to pre-drill/centre punch
Documents
Technical Specifications
Product Specification
Size mm 12.0 x 151
Total Length mm 151
Working Length mm 94
Drill Tip 135° Split
Shank Type Straight
Pack Dimensions L x W x H mm 173 x 47 x 33
Pack Weight kg 0.508
Carton Qty Packs 10
Pallet Qty Packs N/A
DIN Standard DIN 338
Product Code HSSG120
SKU Barcode 5055017536856
Drill Dia mm 12
Product Specifications
Material M2 Grade HSS Steel
Substrates Plastic, Steel, Aluminium, Non-Ferrous Metals, Cast Iron
Attribute Group 1
Brand TIMCO

Ground Jobber Drills - HSS M2

12.0mm

  • Product Code: HSSG120

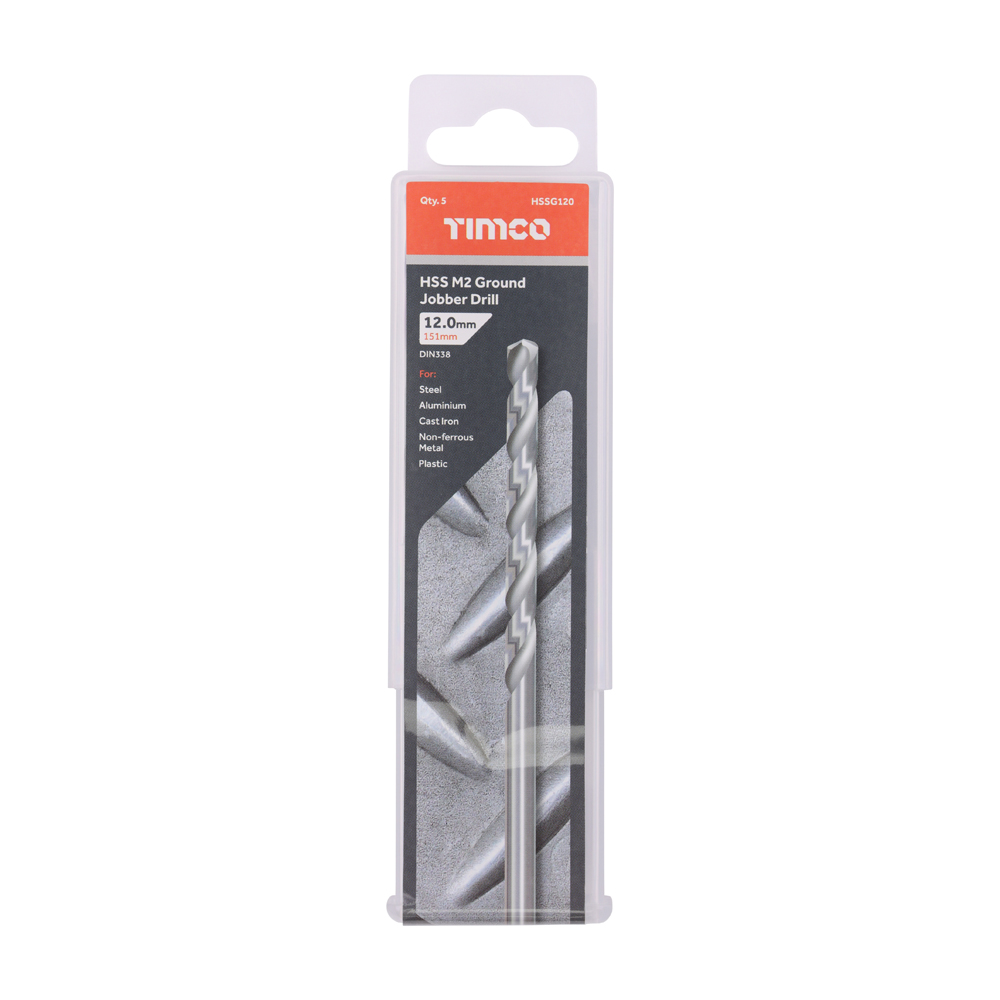

  • Pack Type: Tube
  • Pack Quantity: 5
  • Barcode: 5055017536856
