Product Information
Manufactured from a high grade M2 tool steel. This durable engineering quality drill will give a consistent rapid performance into all non-alloy materials. The 135° split point prevents the bit from drifting and enables faster penetration.
- Fully ground from solid material
- High grade M2 alloyed High Speed Steel (HSS)
- Manufactured to DIN 338
- Dimensionally precise
- High performance 135° split point tip eradicates the need to pre-drill/centre punch
Documents
Technical Specifications
Product Specification
| Size mm | 3.8 x 75 |
| Total Length mm | 75 |
| Working Length mm | 75 |
| Drill Tip | 135° Split |
| Shank Type | Straight |
| Pack Dimensions L x W x H mm | 97 x 45 x 23 |
| Pack Weight kg | 0.078 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 338 |
| Product Code | HSSG38 |
| SKU Barcode | 5055017536580 |
| Drill Dia mm | 3.8 |
Product Specifications
| Material | M2 Grade HSS Steel |
| Substrates | Plastic, Steel, Aluminium, Non-Ferrous Metals, Cast Iron |
Attribute Group 1
| Brand | TIMCO |

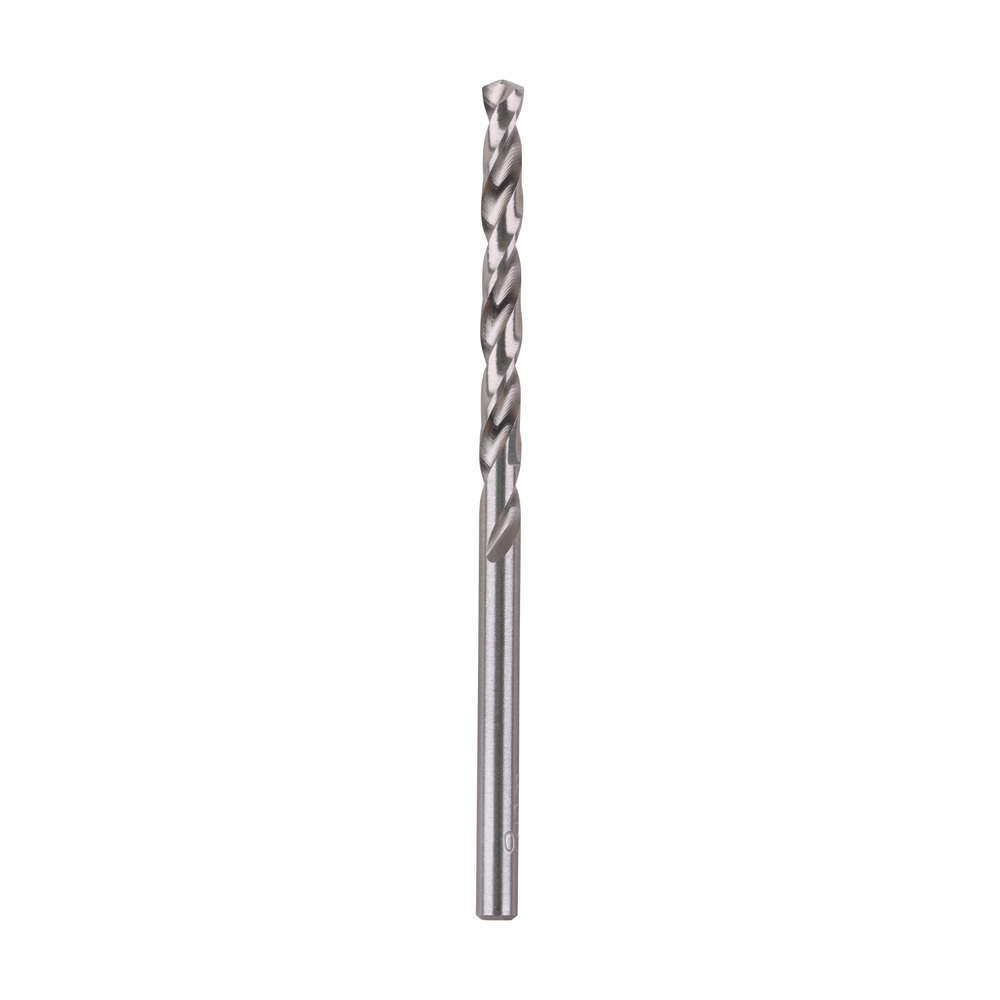

Ground Jobber Drills - HSS M2
3.8mm
- Product Code: HSSG38

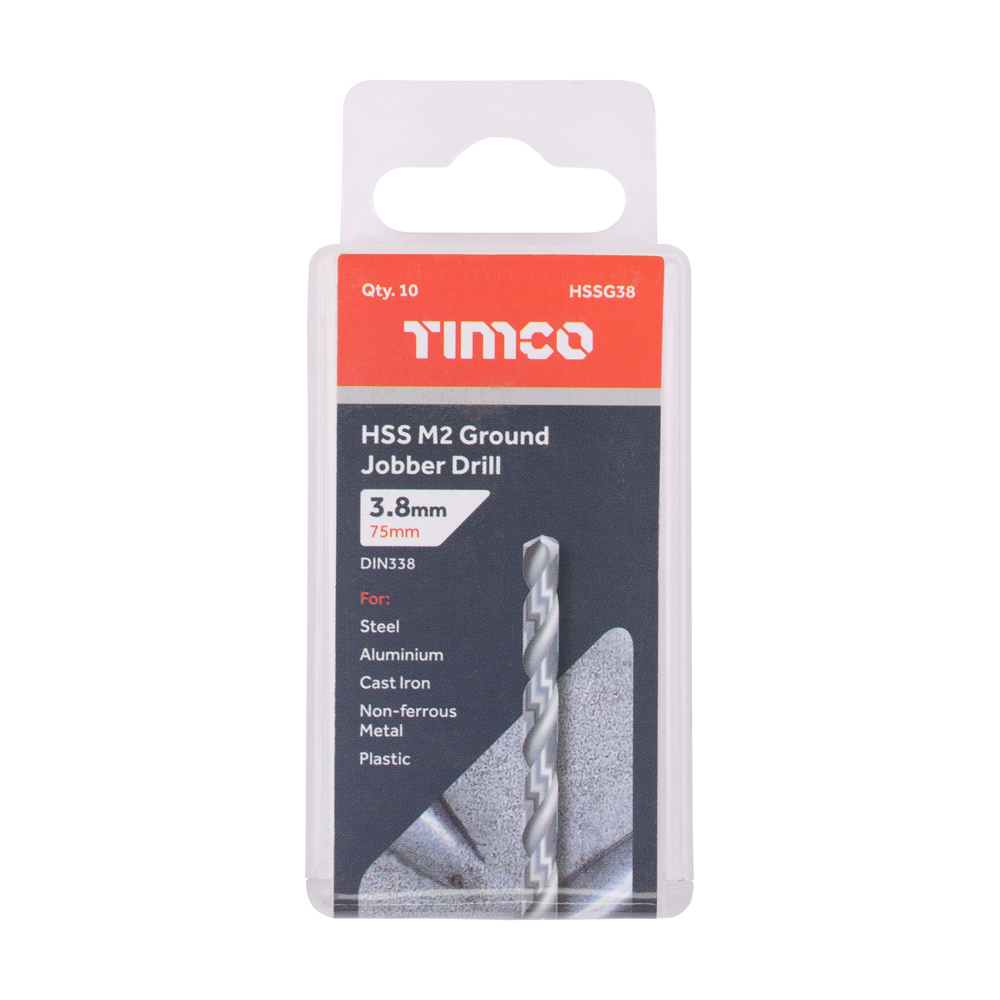

- Pack Type: Tube
- Pack Quantity: 10
- Barcode: 5055017536580
