Product Information
Manufactured from a high quality M35 grade steel. Ideal for drilling holes into stainless steel and other alloy materials. The 135° split point prevents the bit from drifting and enables faster penetration.
- Fully ground from solid material
- M35 alloyed High Speed Steel (HSS) with 5% Cobalt content
- High heat resistance for particularly tough metal drilling
- Manufactured to DIN 338
- Dimensionally precise
- High performance 135° split point tip eradicates the need to pre-drill/centre punch.
Documents
Technical Specifications
Product Specification
| Size mm | 5.0 x 86 |
| Total Length mm | 86 |
| Working Length mm | 52 |
| Drill Tip | 135° Split |
| Shank Type | Straight |
| Pack Dimensions L x W x H mm | 108 x 45 x 23 |
| Pack Weight kg | 0.128 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 338 |
| Product Code | HSSCO5 |
| SKU Barcode | 5055017538027 |
| Drill Dia mm | 5 |
Product Specifications
| Material | M35 Alloyed HSS Steel with 5% Cobalt |
| Substrates | Plastic, Steel, Aluminium, Non-Ferrous Metals, Stainless Steel |
Attribute Group 1
| Brand | TIMCO |

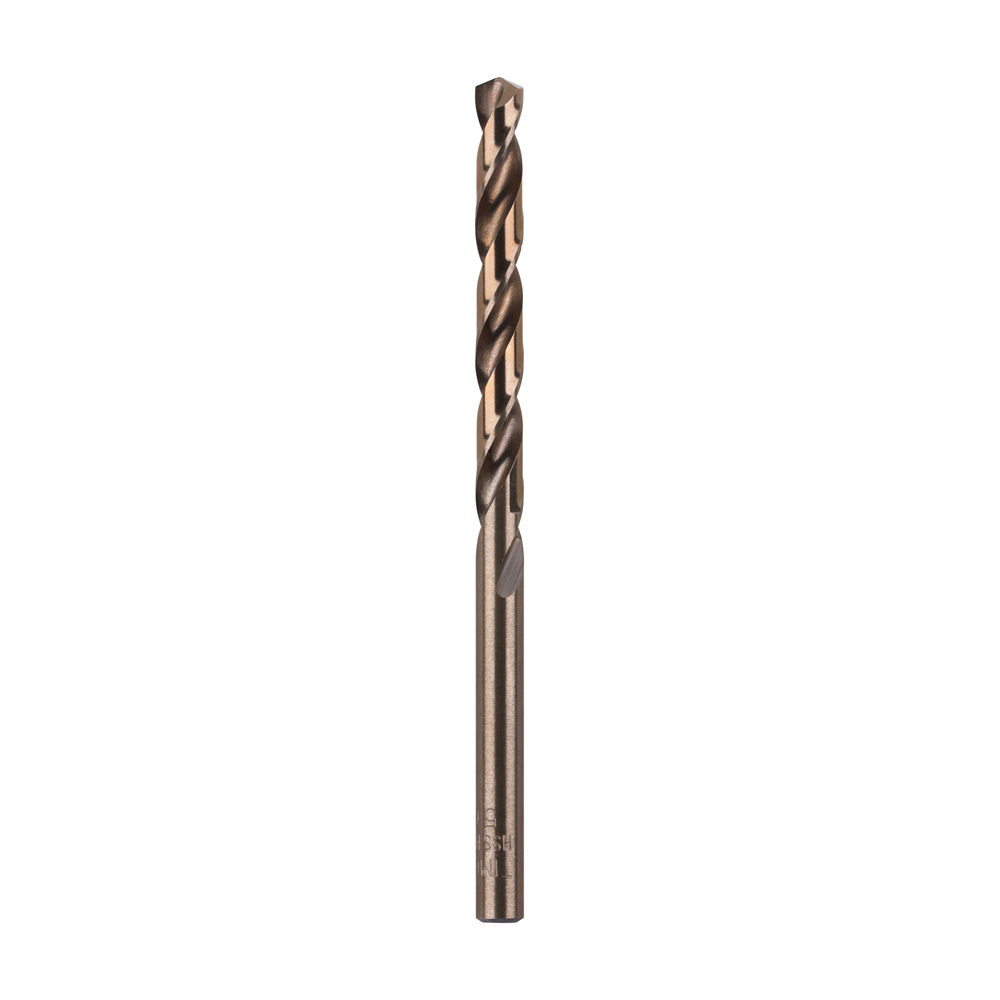

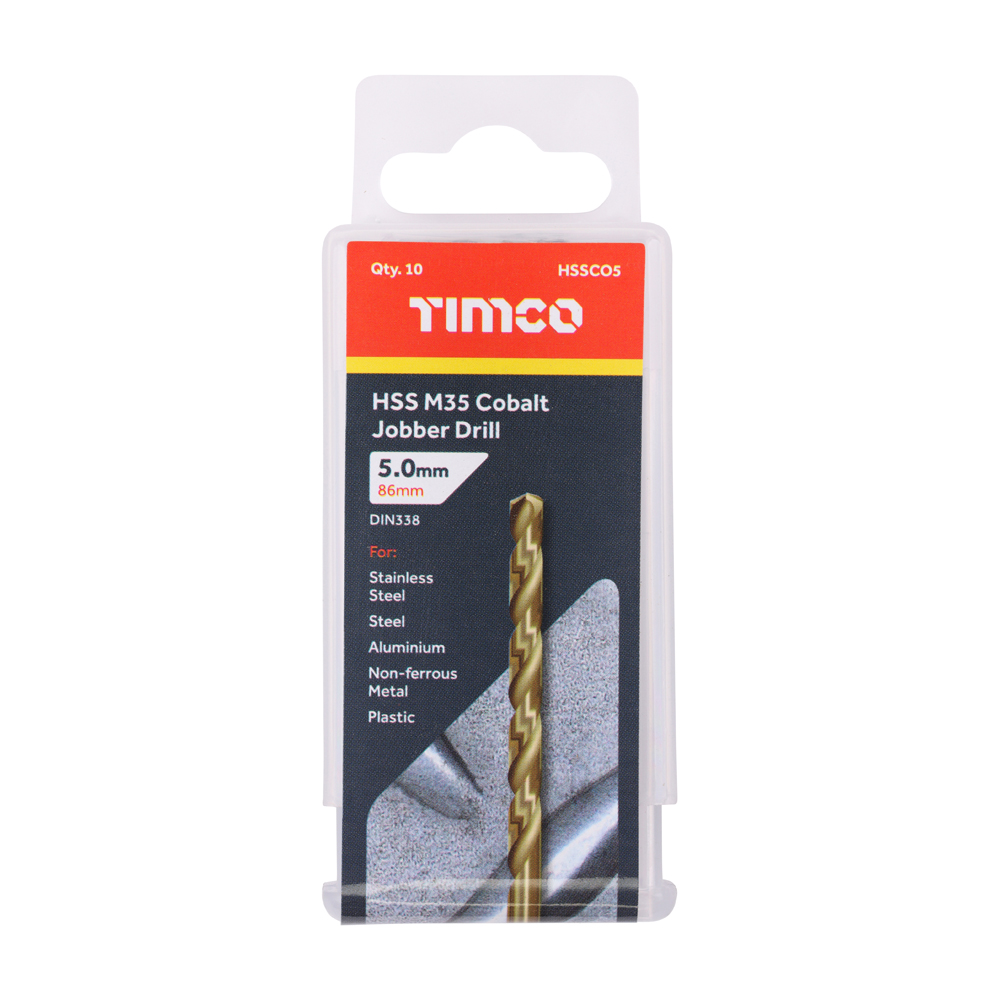

Ground Jobber Drills - Cobalt M35
5.0mm
- Product Code: HSSCO5
- Pack Type: Tube
- Pack Quantity: 10
- Barcode: 5055017538027
