Product Information
Designed for use on standard internal residential doors, including medium to heavy 30 & 60 minute fire doors weighing up to 40kg. Smooth ball bearing action and tested to 200,000 cycles make these hinges ideal for doors with heavy domestic traffic.
  • Smooth ball bearing action
  • Suitable for 30 & 60 minute fire doors
  • Ideal for heavy doors up to 40kg
  • For doors with heavy traffic - tested to 200,000 cycles
Documents
Technical Specifications
Product Specification
Length inch 3
Length mm 76
Open Width mm 50
Screw Size mm 4.0 x 25
Size L x W mm 76 x 50
Thickness mm 2
Corner Type Square
Grade 7
Knuckle Type Ball Bearing
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Max Door Weight kg 40
Screws Required Per Pair 12
No of CSK Screws 12
Pack Dimensions L x W x H mm 120 x 40 x 25
Pack Weight kg 0.24
Carton Qty Packs 60
Pallet Qty Packs 1,800 Pairs
BS EN Classification 27211207
CE Standard Web BS EN 1935:2002
Certifire Number CF714
Fire Rating 30 & 60 Minutes
Product Code 334654
SKU Barcode 5056110836522
Size imp 3
Screw Size imp 9 x 1
Knuckle Dia mm 11
Hole Dia mm 6.2
Rec Screw Dia mm 4.5
Product Specifications
Finish Satin Chrome
Material Carbon Steel
Attribute Group 1
Brand TIMCO

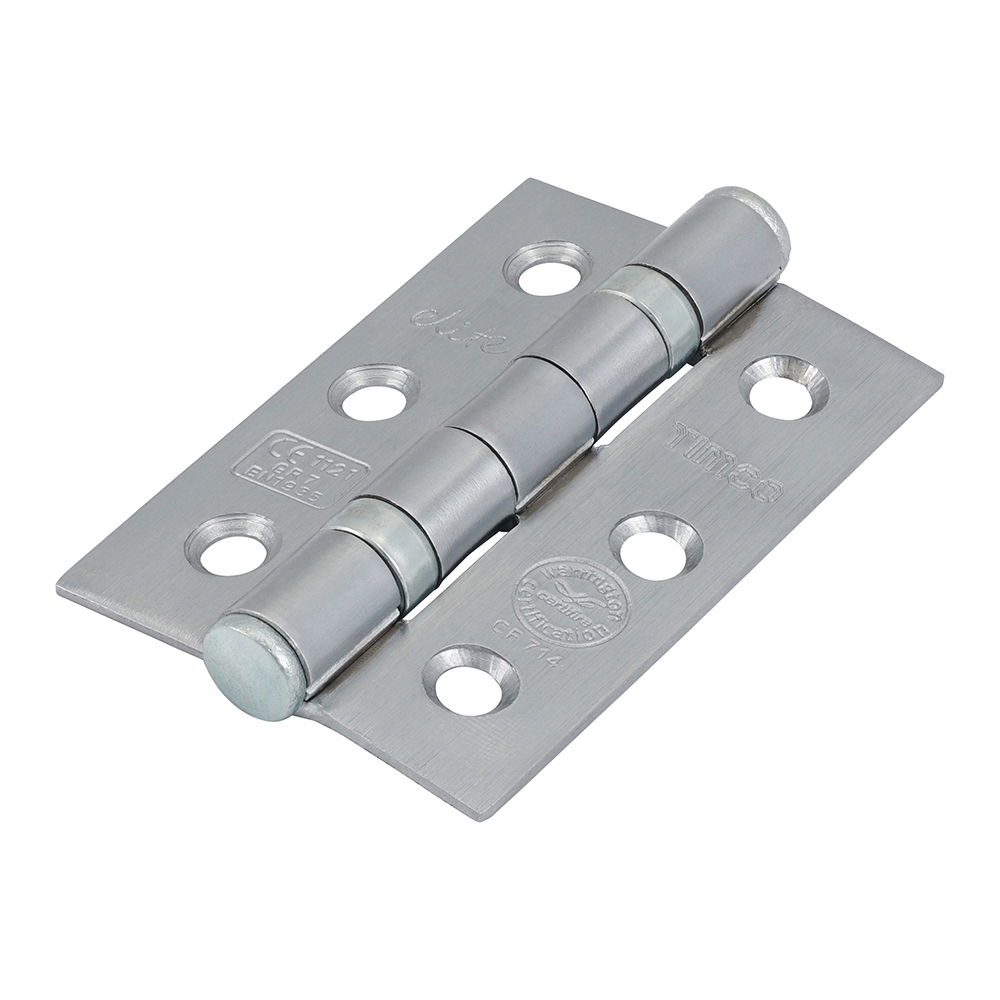

Grade 7 Fire Door Hinges - Satin Chrome

76 x 50 x 2.0

  • Product Code: 334654
  • Pack Type: Box
  • Pack Quantity: 1
  • Barcode: 5056110836522
