Product Information

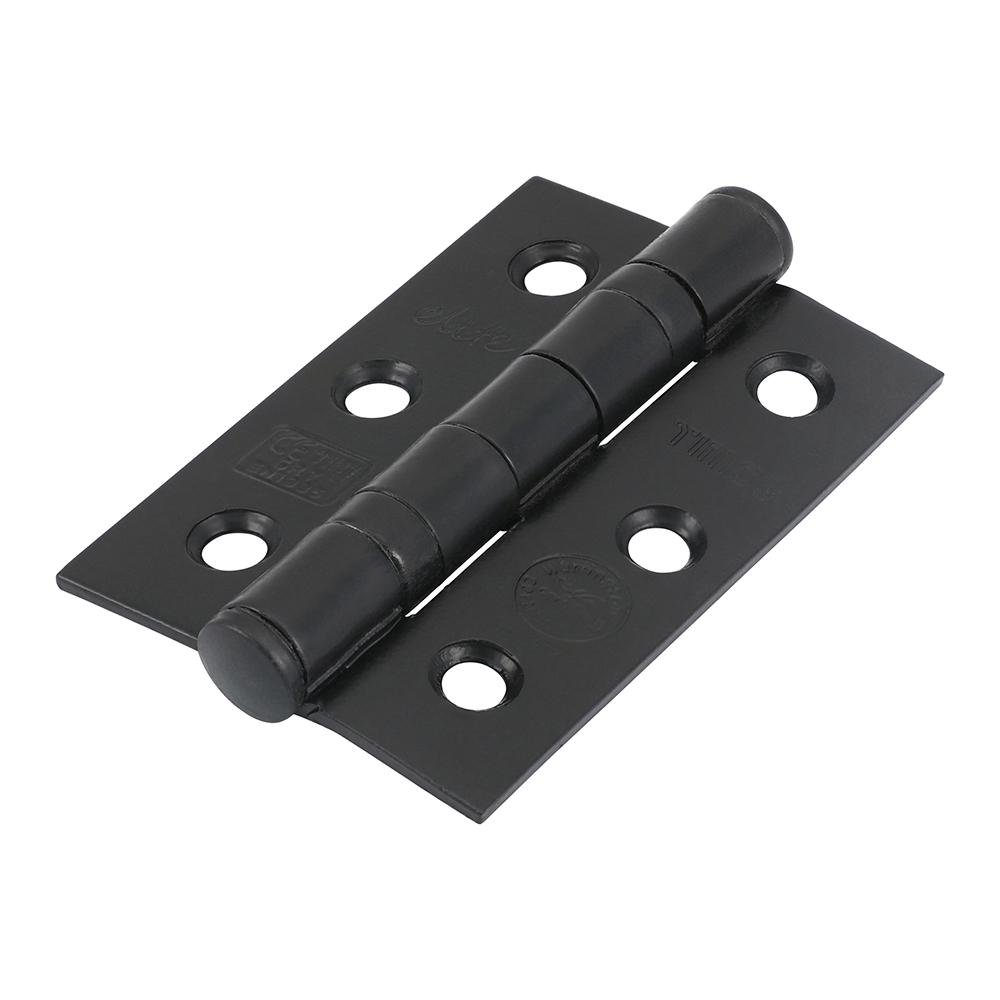

Grade 7 ball bearing hinge, suitable for 30 minute fire doors up to 40kg, when used in conjunction with intumescent hinge pads.
- Suitable for 30 minute fire doors
- Doors up to 40kg
- Smooth ball bearing action
- Fixings included
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 76 |
| Open Width mm | 50 |
| Screw Size mm | 4.0 x 25 |
| Size L x W mm | 76 x 50 |
| Thickness mm | 2 |
| Corner Type | Square |
| Grade | 7 |
| Knuckle Type | Ball Bearing |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Door Weight kg | 40 |
| Screws Required Per Pair | 12 |
| No of CSK Screws | 12 |
| Pack Dimensions L x W x H mm | 194 x 86 x 23 |
| Pack Weight kg | 0.23 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| BS EN Classification | 27211207 |
| CE Standard Web | BS EN 1935:2002 |
| Certifire Number | CF714 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 334321P |
| SKU Barcode | 5056110885001 |
| Size imp | 3 |
| Screw Size imp | 9 x 1 |
| Knuckle Dia mm | 11 |
| Hole Dia mm | 6.2 |
| Rec Screw Dia mm | 4.5 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

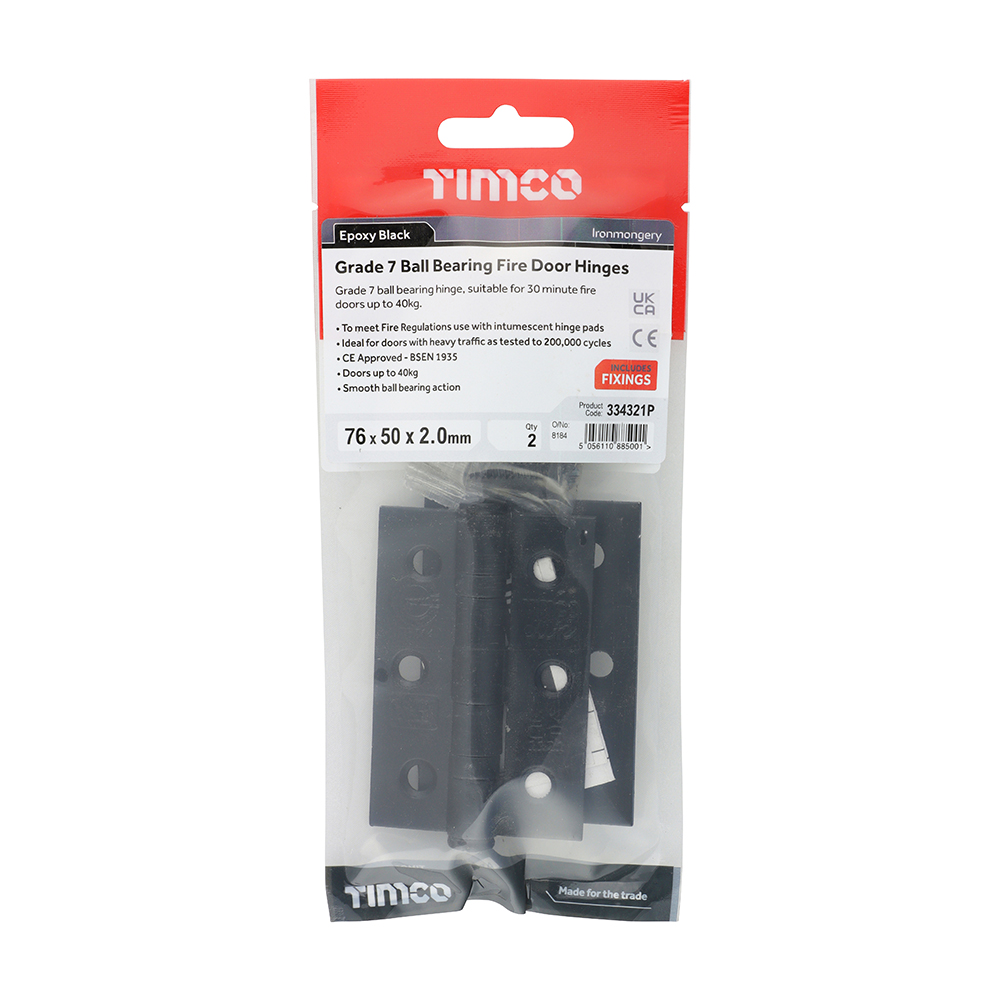

Grade 7 Ball Bearing Fire Door Hinges - Epoxy Black
76 x 50 x 2.0
- Product Code: 334321P
- Pack Type: TIMpac
- Pack Quantity: 1
- Barcode: 5056110885001
