Product Information
Designed for use on heavy duty fire doors in public buildings. Lubricated ball bearing washers provide a lifetime of smooth door operation making them ideal for use with door closers as they reduce closing friction. Fixings included.
*Fit with intumescent hinge pads (not included, sold separately product code 487385) when fitting fire doors to adhere to fire regulations.
- Smooth ball bearing action
- Suitable for 30 & 60 minute fire doors weighing up to 120kg
- For doors with heavy traffic - tested to 200,000 cycles
- CE Approved - BS EN 1935
Documents
Technical Specifications
Product Specification
| Length mm | 101 |
| Screw Size mm | 5.0 x 30 |
| Size L x W mm | 101 x 76 |
| Thickness mm | 3 |
| Width mm | 76 |
| Corner Type | Square |
| Grade | 13 |
| Knuckle Type | Ball Bearing |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Door Weight kg | 120 |
| No of CSK Screws | 16 |
| Pack Dimensions L x W x H mm | 160 x 56 x 26 |
| Pack Weight kg | 0.56 |
| Carton Qty Packs | 40 |
| Pallet Qty Packs | 1080 |
| BS EN Classification | 476114013 |
| CE Standard Web | BS EN 1935:2002 |
| Certifire Number | CF714 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 334308 |
| SKU Barcode | 5056110885278 |
| Size imp | 4 x 3 |
| Screw Size imp | 10 x 1 1/4 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Matt Black |
| Material | Stainless Steel |
Attribute Group 1
| Brand | TIMCO |

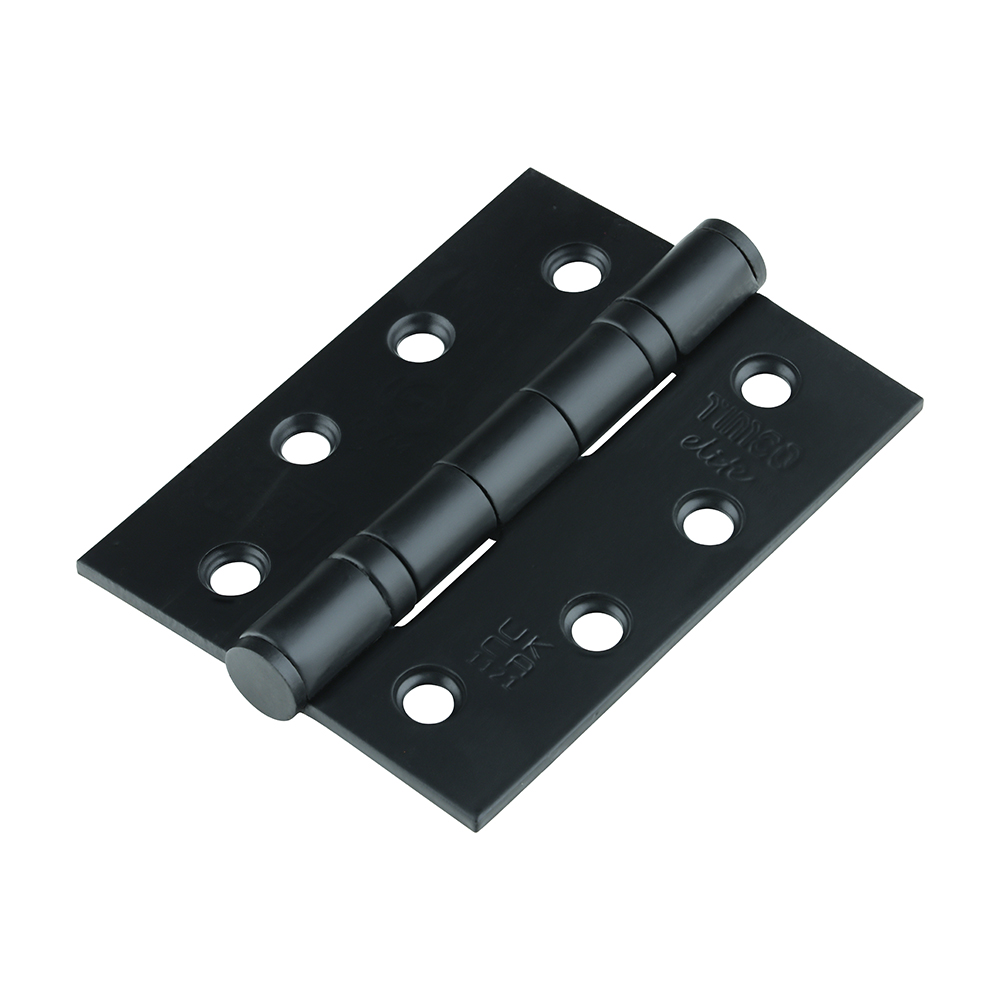

Grade 13 Fire Door Hinges - Matt Black Stainless Steel
101 x 76 x 3
- Product Code: 334308
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110885278
