Product Information
Designed for use on standard internal residential doors, including heavy 30 & 60 minute fire doors weighing up to 80kg. Smooth ball bearing action and tested to 200,000 cycles make these hinges ideal for doors with heavy domestic traffic.
- Smooth ball bearing action
- Suitable for 30 & 60 minute fire doors
- Ideal for heavy doors up to 80kg
- For doors with heavy traffic - tested to 200,000 cycles"
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 101 |
| Open Width mm | 76 |
| Screw Size mm | 5.0 x 30 |
| Size L x W mm | 101 x 76 |
| Thickness mm | 2.6 |
| Corner Type | Square |
| Grade | 11 |
| Knuckle Type | Ball Bearing |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Door Weight kg | 80 |
| Screws Required Per Pair | 16 |
| No of CSK Screws | 16 |
| Pack Dimensions L x W x H mm | 160 x 55 x 25 |
| Pack Weight kg | 0.48 |
| Carton Qty Packs | 40 |
| Pallet Qty Packs | 1,560 Pairs |
| BS EN Classification | 374113011 |
| CE Standard Web | BS EN 1935:2002 |
| Certifire Number | CF714 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 334040 |
| SKU Barcode | 5056110836607 |
| Size imp | 4 |
| Screw Size imp | 10 x 1 1/4 |
| Knuckle Dia mm | 12.5 |
| Hole Dia mm | 7.2 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Satin Chrome |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

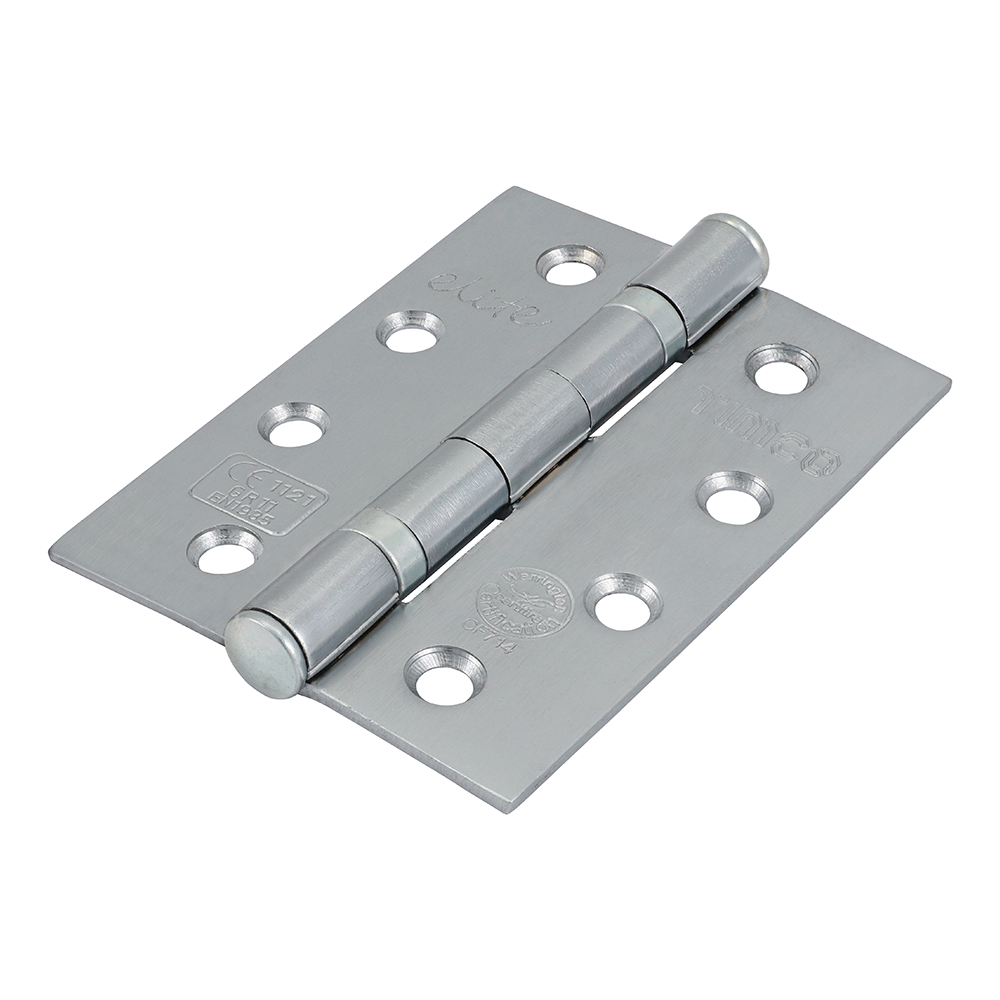

Grade 11 Fire Door Hinges - Satin Chrome
101 x 76 x 2.6
- Product Code: 334040
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110836607
