Product Information

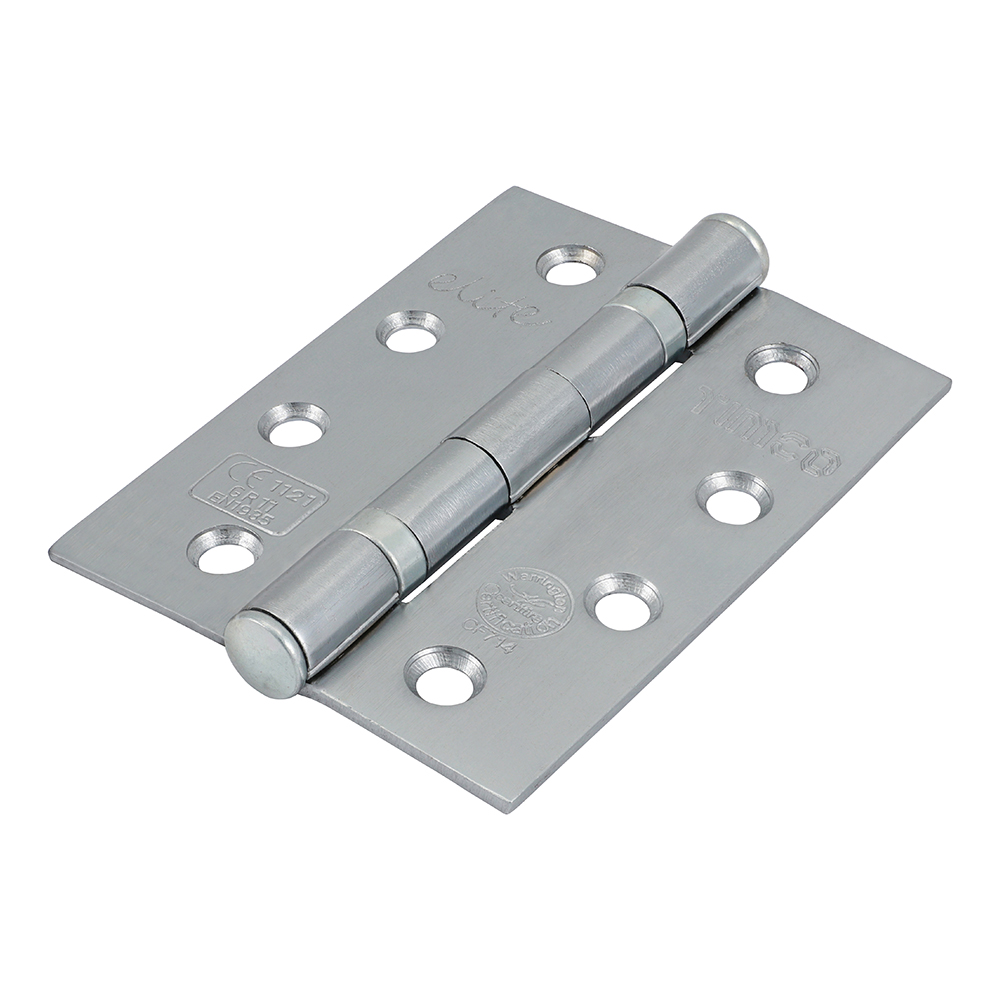

Grade 11 ball bearing hinge, suitable for 30 & 60 minute fire doors up to 80kg, when used in conjunction with intumescent hinge pads.
- Suitable for 30 & 60 minute fire doors
- Doors up to 80kg
- Smooth ball bearing action
- Fixings included
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 101 |
| Open Width mm | 76 |
| Screw Size mm | 5.0 x 30 |
| Size L x W mm | 101 x 76 |
| Thickness mm | 2.6 |
| Corner Type | Square |
| Grade | 11 |
| Knuckle Type | Ball Bearing |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Door Weight kg | 80 |
| Screws Required Per Pair | 16 |
| No of CSK Screws | 16 |
| Pack Dimensions L x W x H mm | 235 x 115 x 24 |
| Pack Weight kg | 0.03 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| BS EN Classification | 374113011 |
| CE Standard Web | BS EN 1935:2002 |
| Certifire Number | CF714 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 334040P |
| SKU Barcode | 5056110885032 |
| Size imp | 4 |
| Screw Size imp | 10 x 1 1/4 |
| Knuckle Dia mm | 12.5 |
| Hole Dia mm | 7.2 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Satin Chrome |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

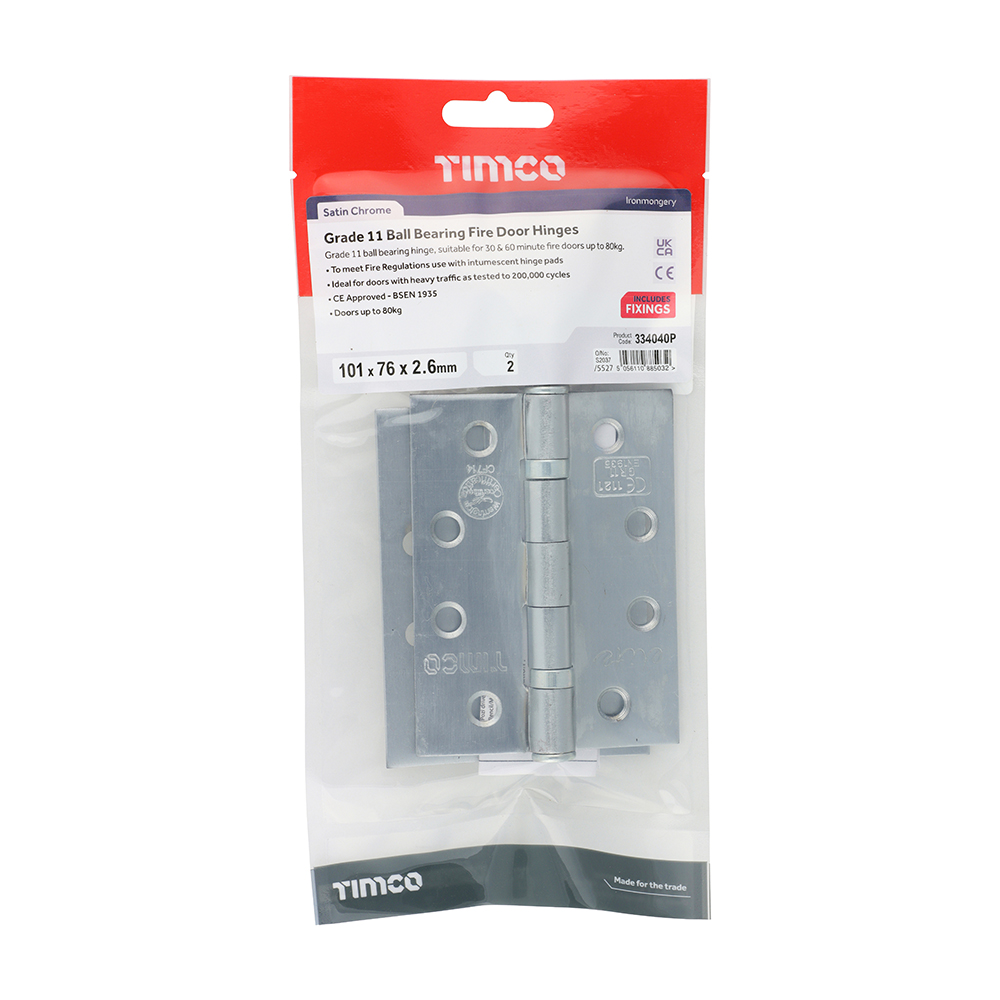

Grade 11 Ball Bearing Fire Door Hinges - Satin Chrome
101 x 76 x 2.6
- Product Code: 334040P
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5056110885032
