Product Information
A sintered diamond blade, manufactured using a heavy duty body and high quality cold pressed diamond powder for maximum value per cut. Suitable for use on most building materials such as common bricks, paving slabs, kerbs, lintels and more.
- Heavy duty body
- Self cooling
Documents
Technical Specifications
Product Specification
| Bore mm | 22.2 |
| Segment Height mm | 7 |
| Max RPM | 13,300 |
| Pack Dimensions L x W x H mm | 151 x 119 x 10 |
| Pack Weight kg | 0.114 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Safety Standard | BS EN 13236 |
| Product Code | GPE115222 |
| SKU Barcode | 5055017575633 |
| Disc Dia mm | 115 |
| Disc Dia inch | 4 1/2 |
Product Specifications
| Colour | Yellow |
| Material | Hardened Carbon Steel with Diamond Segment |
| Weld Type | Cold Sintered |
| Substrates | Concrete, Brick, Slate, Slabs, Sandstone, Clay Tiles, Limestone |
Attribute Group 1
| Brand | TIMCO |

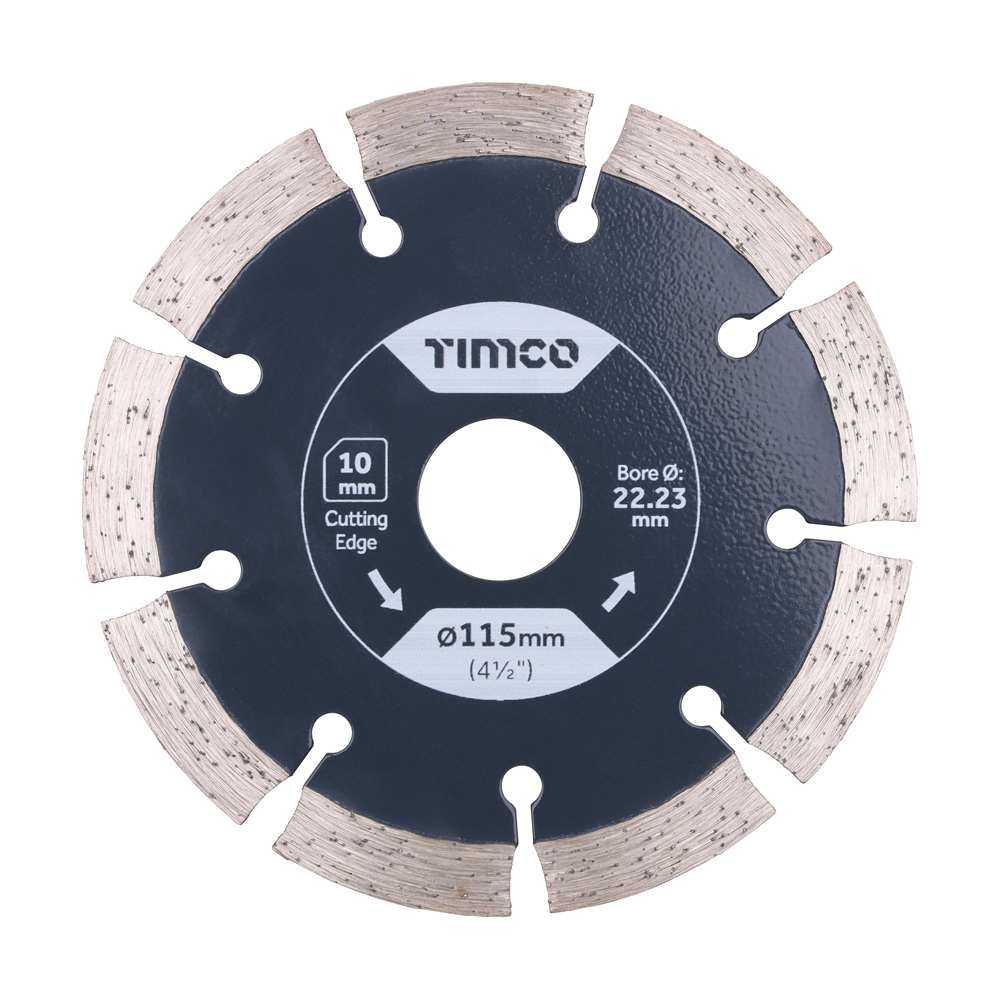

General Purpose Diamond Blade - Segmented
115 x 22.2
- Product Code: GPE115222
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5055017575633
