Product Information
Gate hooks to build are used for embedding in between layers of the post brickwork and can be used with straight and cranked hook and band hinges. No fixings required.
Documents
Technical Specifications
Product Specification
| Length inch | 7 1/4 |
| Length mm | 180 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| To Suit Band Size mm | 250 - 400 |
| To Suit Brickwork | Double |
| Pack Dimensions L x W x H mm | 254 x 30 x 508 |
| Pack Weight kg | 1.28 |
| Carton Qty Packs | 10 Pairs |
| Pallet Qty Packs | 200 Pairs |
| Product Code | GHBDB12G |
| SKU Barcode | 5055893360910 |
| Pin Dia mm | 12 |
| Pin Dia inch | 1/2 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

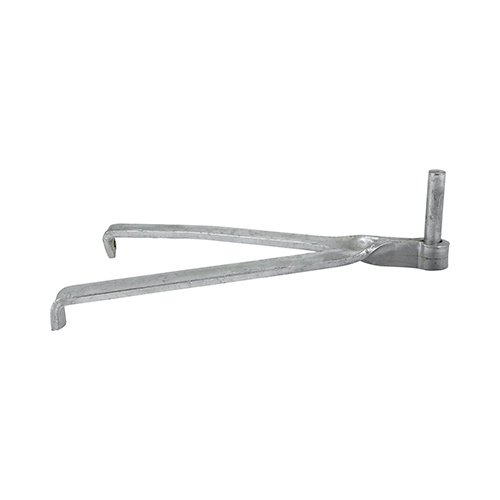

Gate Hooks To Build - Double Brick - Hot Dipped Galvanised
12mm
- Product Code: GHBDB12G
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893360910
