Product Information

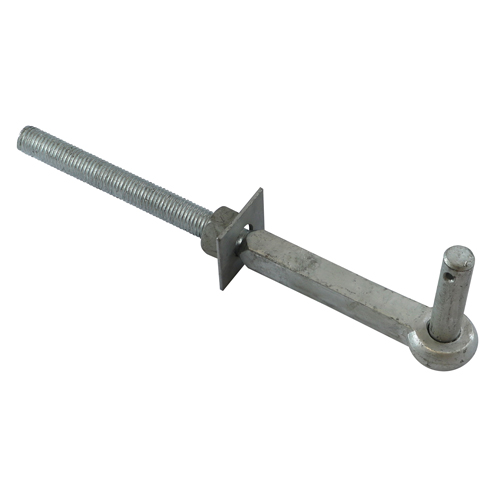

Heavy duty hook to bolt to suit 4” to 10” timber posts and to be used with fieldgate bands or hook and band hinges. Supplied with square plate washer and hex nuts. No fixings required.
Documents
Technical Specifications
Product Specification
| Length inch | 13 |
| Length mm | 325 |
| Nut Size mm | M22 |
| Nut Socket Size mm | 34 |
| Washer Size mm | M20 x 75 x 75 x 6 |
| Washer Type | Square Plate |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| No of Nuts | 1 |
| No of Washers | 1 |
| Pack Dimensions L x W x H mm | 327 x 87 x 48 |
| Pack Weight kg | 1.198 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 480 |
| Product Code | GHB22325GEA |
| SKU Barcode | 5056110860275 |
| Size Thread Dia x L mm | M22 x 325 |
| Pin Dia mm | 22 |
| Pin Dia inch | 7/8 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | Square Plate Washers (Qty 1) Full Hex Nuts (Qty 1) |
Attribute Group 1
| Brand | TIMCO |
Gate Hook To Bolt - Hot Dipped Galvanised
22mm
- Product Code: GHB22325GEA
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5056110860275
