Product Information
Ideal for securing the bottom of gates and doors in domestic and industrial applications. Extended bolt length for ease of operation and an adjustable bolt throw by moving the keep position. Fixings not included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 12 |
| Bolt Length mm | 300 |
| Flat Keep Size L x W mm | 60 x 29 |
| Handle Plate Size L x W mm | 45 x 88 |
| Keep Plate Size H x W mm | 45 x 64 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 160 x 20 x 530 |
| Pack Weight kg | 0.85 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Product Code | DDB12BB |
| SKU Barcode | 5055893355787 |
| Socket Keep Size Dia x L mm | 19.0 x 50 |
| Flat Keep Hole Dia mm | 20 |
| Bolt Dia mm | 14 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

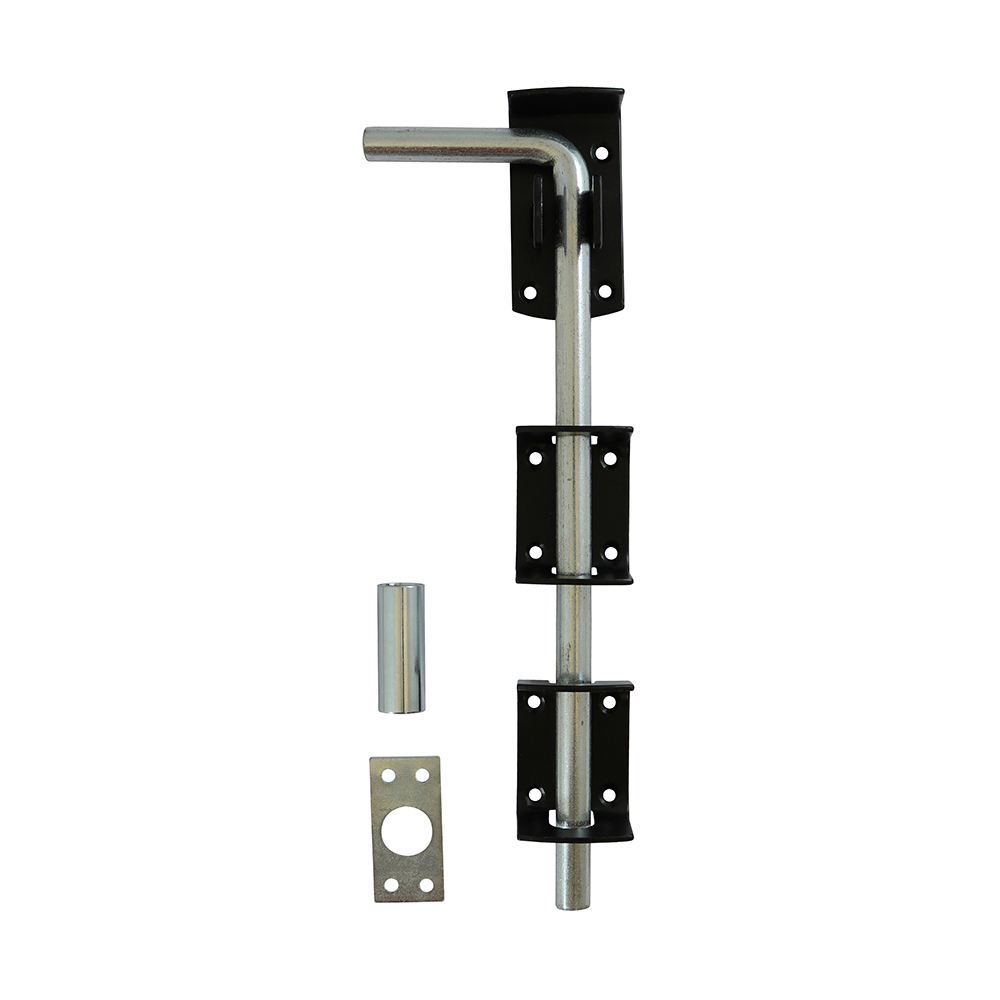

Garage Drop Down Bolt - Black
12"
- Product Code: DDB12BB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893355787
