Product Information
A wider outer diameter than a Form A & B. Used to increase the clamping area.
- Plated in Trivalent Chromium (Cr3) Zinc
Documents
Technical Specifications
Product Specification
| Thickness mm | 1.6 |
| Washer Type | Form C |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 294 x 202 x 144 |
| Pack Weight kg | 17.4 |
| Carton Qty Packs | N/A |
| Pallet Qty Packs | 42 |
| DIN Standard | BS 4320 |
| Product Code | WC6ZBULK |
| SKU Barcode | 5055331845719 |
| Outer Dia mm | 14 |
| Size x Outer Dia mm | M6 x 14 |
| Thread Dia mm | M6 |
| Hole Dia mm | M6 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

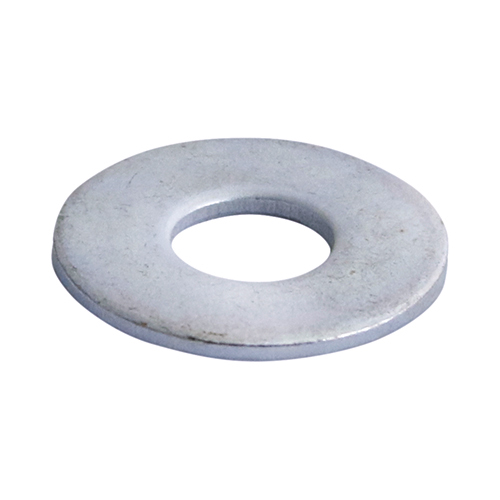

Form C Washers - Zinc
M6
- Product Code: WC6ZBULK
- Pack Type: Carton
- Pack Quantity: 12000
- Barcode: 5055331845719
