Product Information
Thinner than a Form A, used for clamping and spacing applications. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics.
- Conforms to BS 4320
Documents
Technical Specifications
Product Specification
| Thickness mm | 1 |
| Washer Type | Form B |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 95 x 90 x 10 |
| Pack Weight kg | 0.024 |
| Carton Qty Packs | 500 |
| Pallet Qty Packs | N/A |
| DIN Standard | BS4320B |
| Product Code | WB8SSX |
| SKU Barcode | 5055893342428 |
| Outer Dia mm | 17 |
| Size x Outer Dia mm | M8 x 17 |
| Thread Dia mm | M8 |
| Hole Dia mm | M8 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
Attribute Group 1
| Brand | TIMCO |

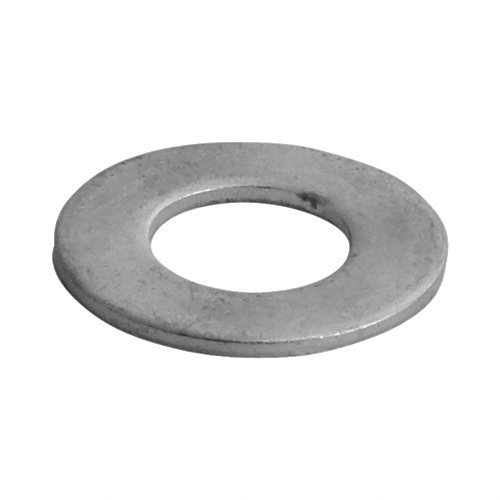

Form B Washers - A2 Stainless Steel
M8
- Product Code: WB8SSX
- Pack Type: Bag
- Pack Quantity: 20
- Barcode: 5055893342428
