Product Information

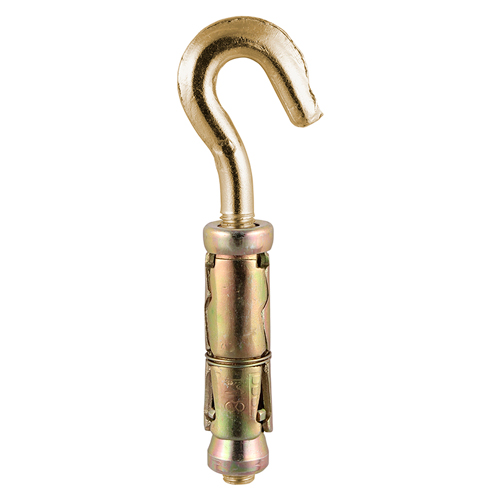

A useful threaded hook bolt for attaching ropes or cables, complete with three segment shield anchor. Manufactured using a forging process for extra strength preventing the hook from opening out when the load is applied.
- Zinc and yellow passivated for improved corrosion resistance
- Nut and washer included
- Forged hook grade 4.8
Documents
Technical Specifications
Product Specification
| Hook Length mm | 80 |
| Nut Socket Size mm | 10 |
| Shield Length mm | 45 |
| Thread Length mm | 50 |
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Centre Spacing mm | 135 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Included Items | M6 Hex Full Nuts & Form A Washers |
| Min Drill Hole Depth mm | 55 |
| Min Embedment Depth mm | 45 |
| Min Structure Thickness mm | 90 |
| Substrates | Concrete, Brick |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.072 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 6000 |
| Product Code | 06HOOKP |
| SKU Barcode | 5055331828767 |
| Thread Dia mm | M6 |
| Drill Hole Dia mm | 12 |
Attribute Group 1
| Brand | TIMCO |

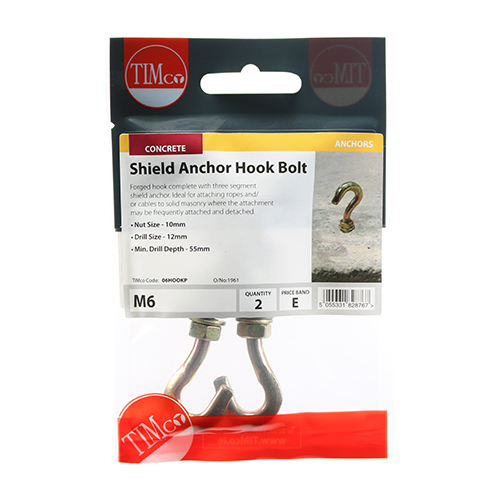

Forged Hooks with Shield Anchors - Yellow
M6
- Product Code: 06HOOKP
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5055331828767
